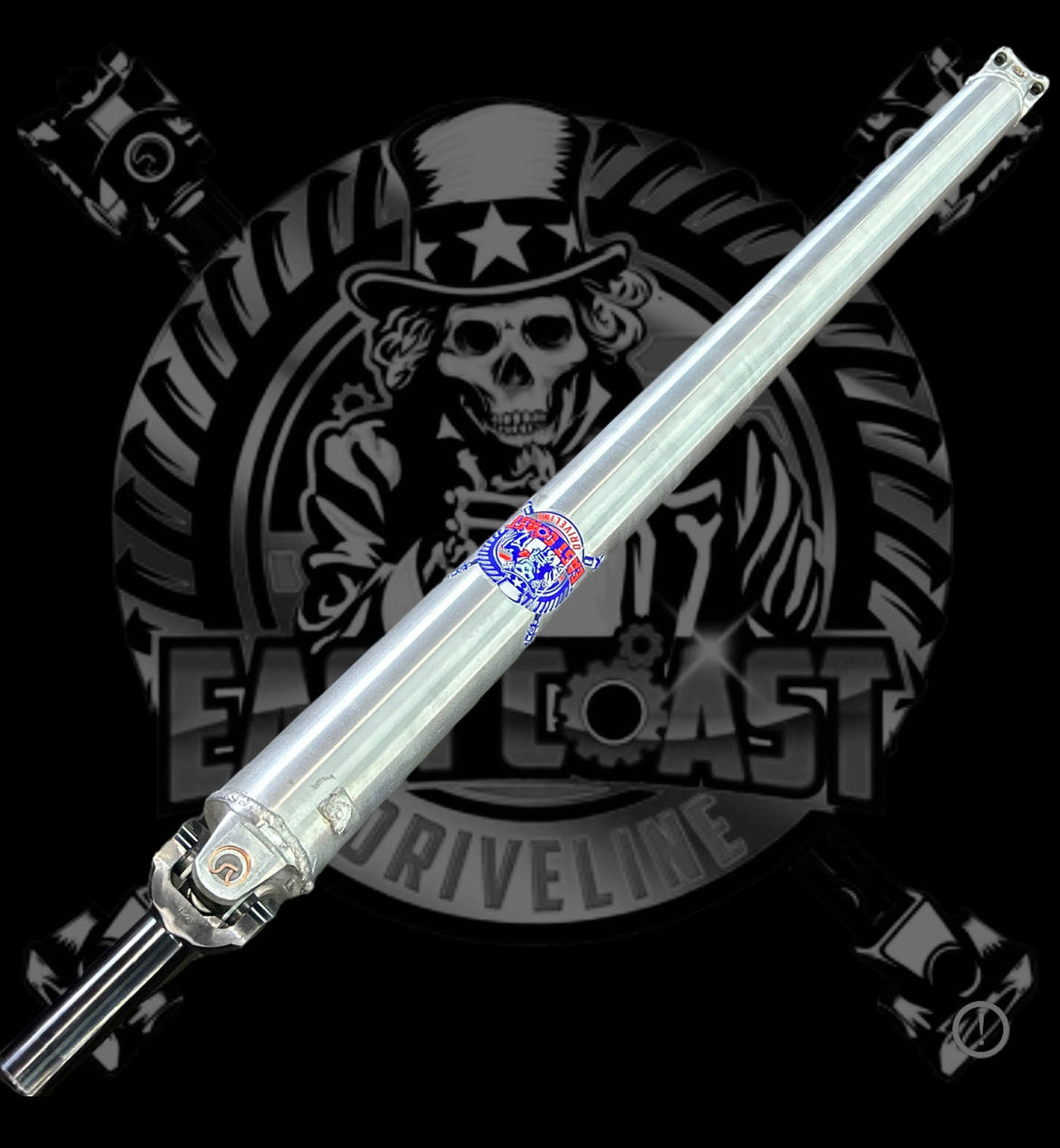

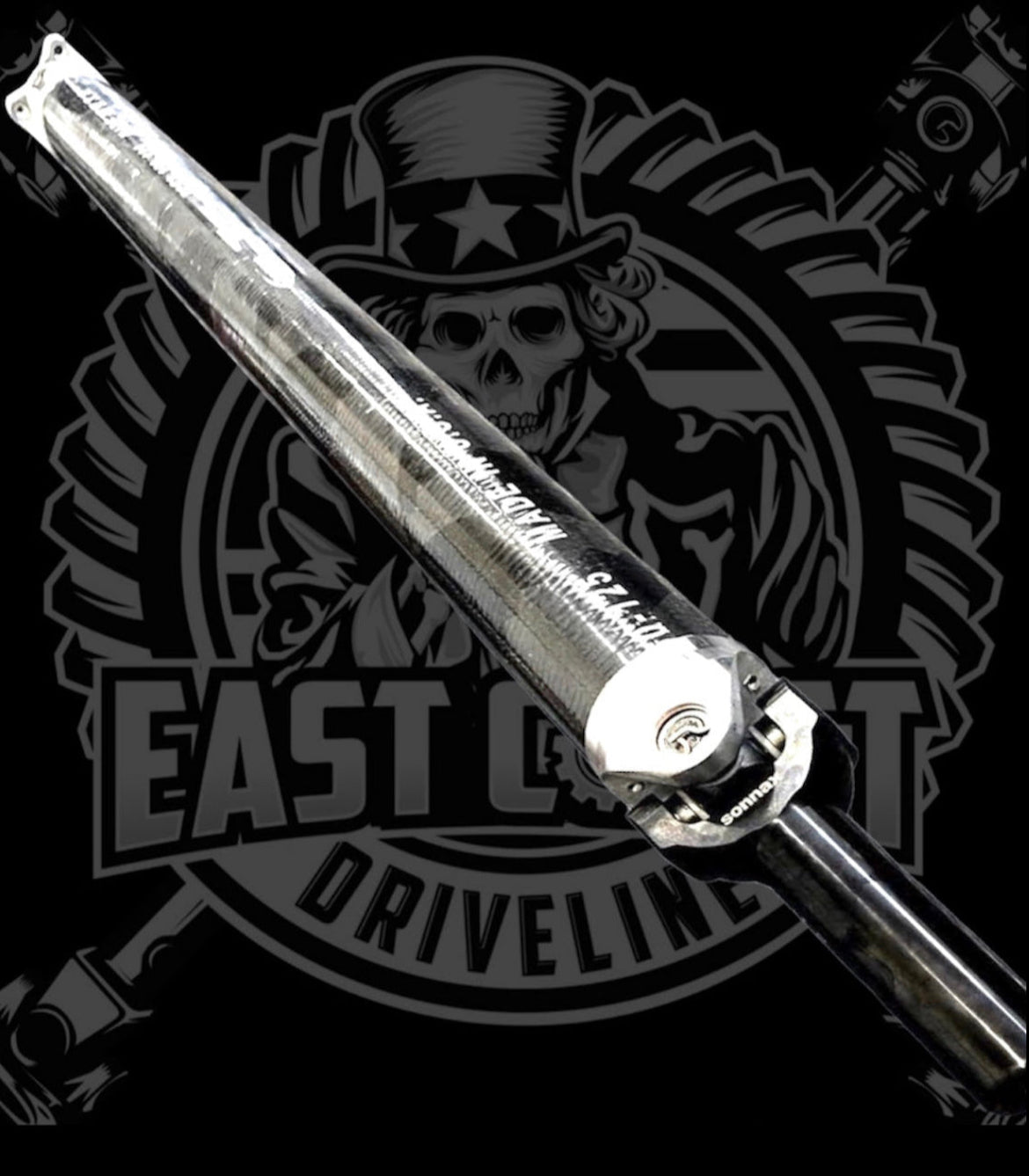

2015+ Dodge Charger Hellcat/ Redeye/ Demon/ SRT 392/ Scat Pack TH400 Swapped with 8 Bolt ZF Differential Flange HD Driveshaft
2015+ Dodge Charger Hellcat/ Redeye/ Demon/ SRT 392/ Scat Pack TH400 Swapped with 8 Bolt ZF Differential Flange HD Driveshaft
Made to Order 2-5 Days lead time
2015+ Dodge Charger Hellcat/ Redeye/ Demon/ SRT 392/ Scat Pack TH400 Swapped with 8 Bolt ZF Differential Flange HD Driveshaft

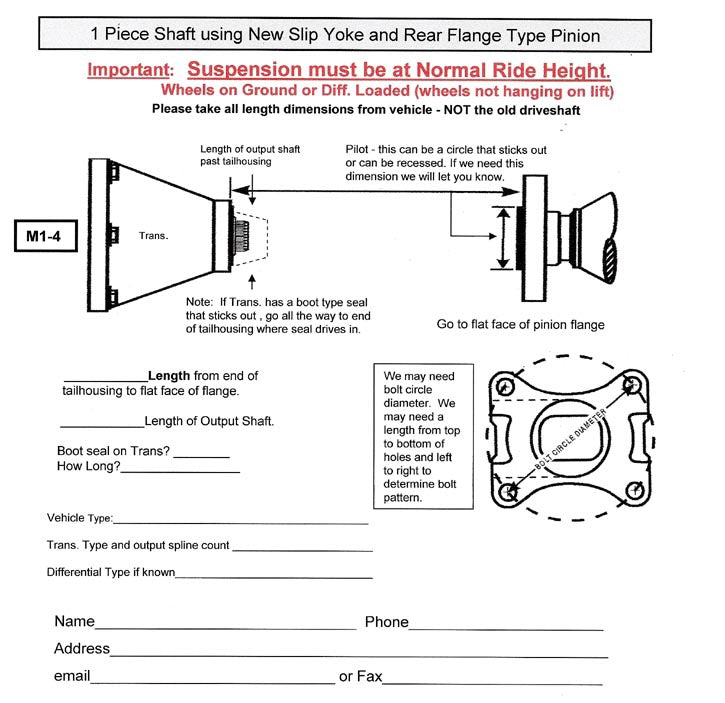

***MUST PROVIDE MEASUREMENT FROM TIP OF 400 TRANSMISSION SEAL TO FLAT OF ZF REAR DIFFERENTIAL FLANGE YOKE WHILE IN RIDING POSITION. ****
EMAIL: PB.EastCoastDrivelineInc@Gmail.com
Made with HD Sonnax Chromoly 1350 or 1480 Series Transmisson Yoke and 1350 Series 8 Bolt Sonnax Billet Aluminum Rear Flange Yoke (Hardware Included). Spicer solid U-Joints
Transmission Yoke Also available in 1480 Series

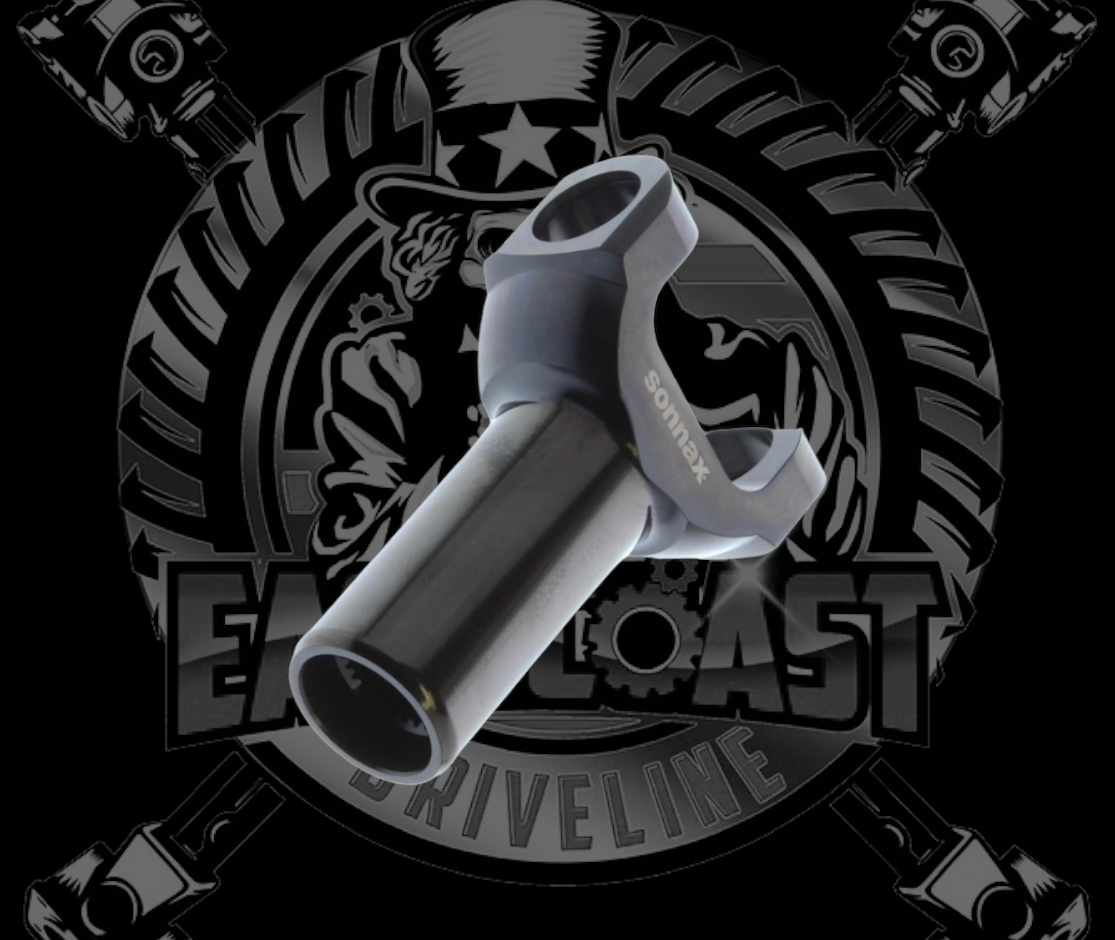

TH400 Transmission Slip Yoke: Part No. T3-3-2431HP
TH400, 4L80-E, Muncie M20, 21 & 22, BorgWarner T10
Sonnax T3-3-2431HP forged chromoly performance slip yoke is an excellent upgrade over factory style transmission yokes, adding strength and durability at an affordable price. The T3-3-2431HP uses 1350 series u-joints and fits a variety of applications, including those listed here. These high performance slip yokes deliver superior strength and durability for high horsepower and torque capacity applications, from street car, to street rod, drag strip, to dirt oval track.
Talk with a transmission builder or driveline shop to verify your vehicle's output shaft style. This slip yoke fits a variety of applications, including those listed here.
- Counter Bore (Y/N): No
- Spline Type: Full
- U-Joint Series: 1350
- Material: Forged Chromoly
- Spline Tooth Count: 32
- Journal Dia.: 1.886"
- Centerline to End Length: 5.500"
- Weight: 3.060lbs
- Barrel Length: 3.880"

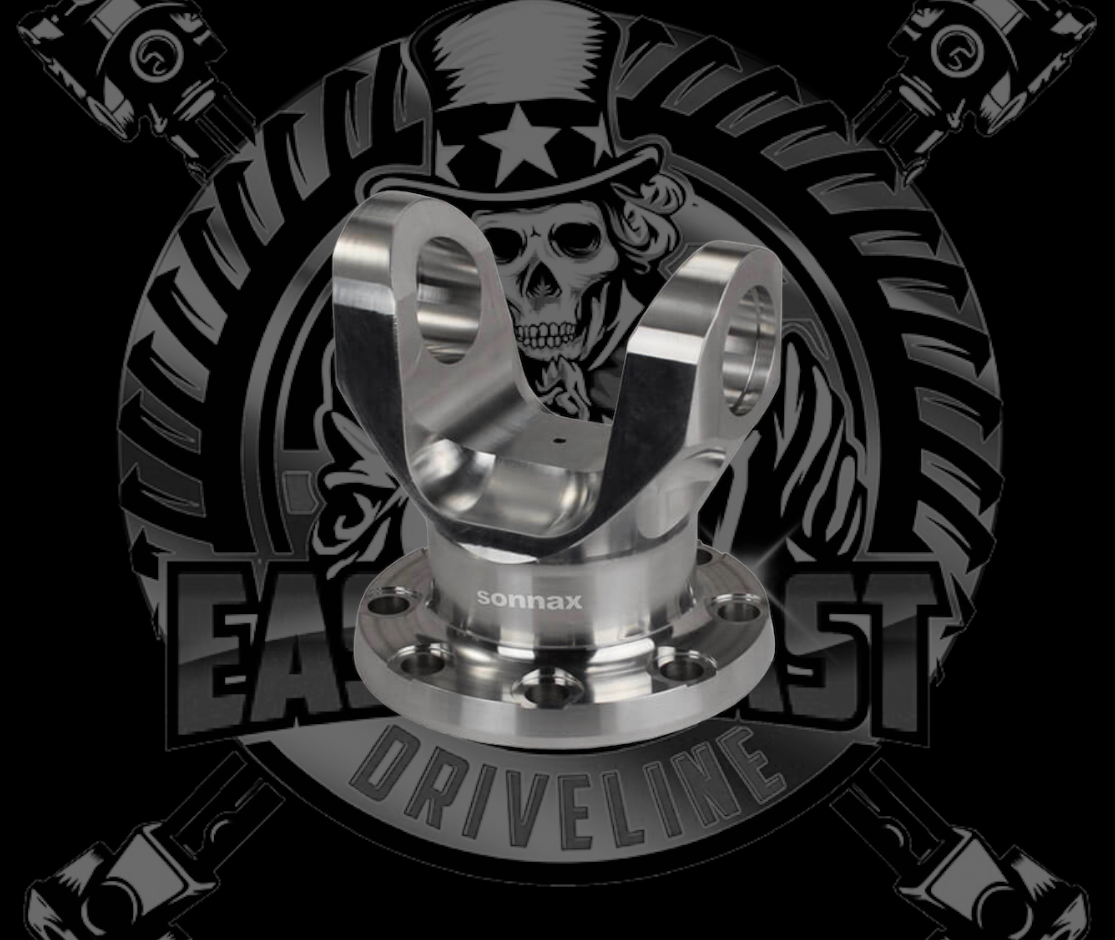

8-Bolt Adapter Flange Yoke: Part No. T35-ALFY-08
Fits '15-later Dodge Hellcat; '13-later Dodge SRT 392; Scat Pack Challenger and Chrysler 300.
The ideal upgrade for modified performance vehicles, Sonnax 8-bolt adapter flange yoke T35-ALFY-08 makes it easy to convert a two-piece driveline to a one-piece, U-joint-style driveline. Combined with Sonnax tubing and weld yokes, this unique flange dramatically increases strength and durability while reducing future maintenance costs.
- Mates to differential pinion flanges in Hellcat® and similar high-power applications
- Eliminates the troublesome guibo and/or CV joint(s)
- Precision-machined for excellent fit and balance
Sonnax flange yoke T35-ALFY-08 is a custom part and may fit more models than noted above. Measure flange OD, output flange bolt holes and bolt circle diameter to determine if this yoke is appropriate for your build.
- U-Joint Series: 1350
- Pilot Type: M
- Material: 7075-T6 Aluminum
- Bolt Count: 8
- Flange Outer Dia.: 4.093"
- Flange Face to Centerline: 3.440"
- Weight: 1.490lbs
- Bolt Hole Dia.: 0.425"
- Pilot Dia.: 4.093"
- Bolt Circle Dia.: 88mm
