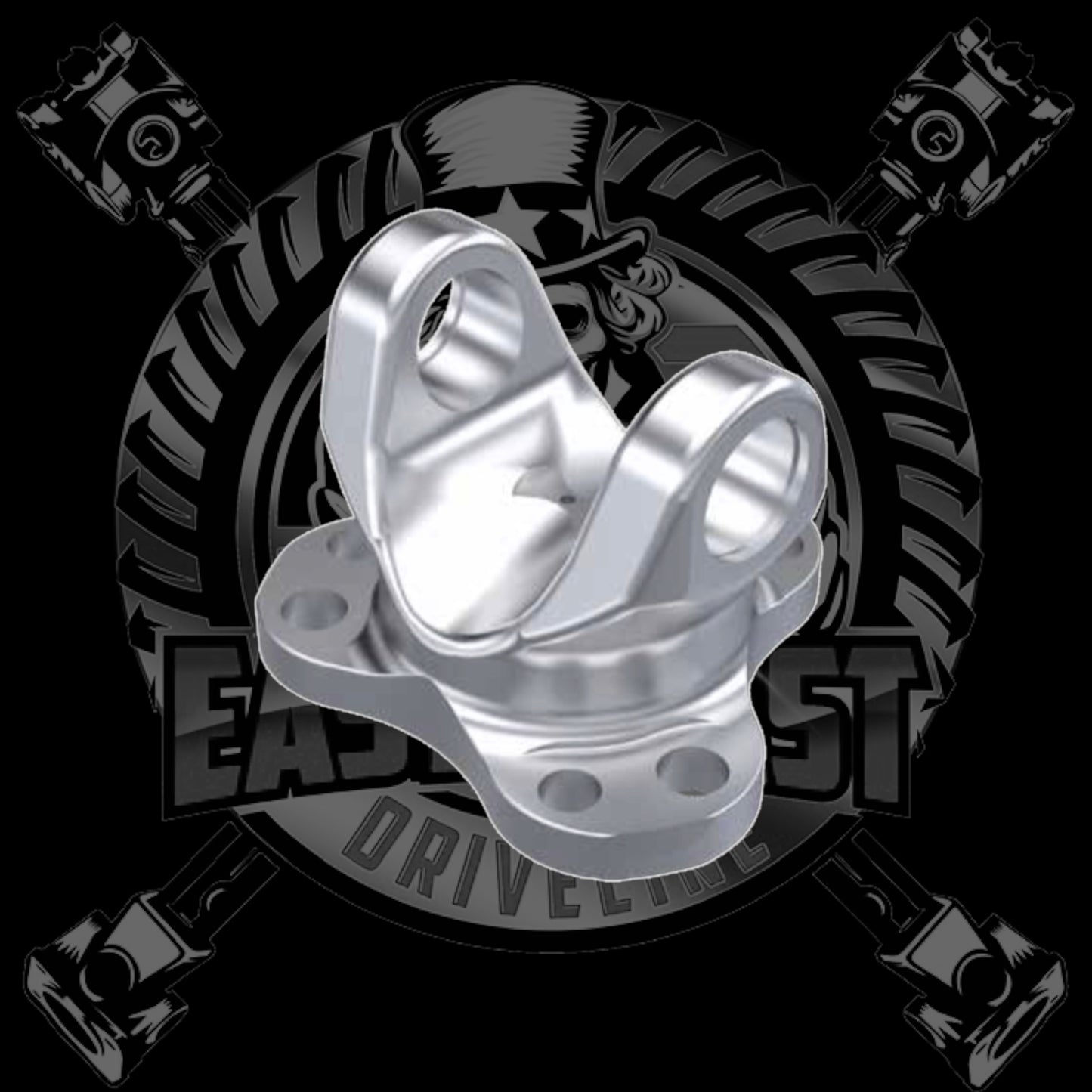

1350 Series 2024-T861 Aluminum Adapter Flange 110mm Bolt Circle- AF1350-110 - for Dodge Charger (2006-2014), Chrysler 300 (2006-2014), Pontiac GTO (2005-2006), Chevy Camaro (2010-2021), Cadillac CTS-V (2016+), 10L80, 6L80, 6L90, 8L90, TR-6060, TR-3160

110mm Bolt patterns- universal for 12mm and 14mm Bolts

When designing the new Composite Drivelines bondable ends and flanges, one of the major considerations was material selection. The automotive standard for aluminum drivetrain components is 6061-T651 aluminum. This material is very well known and widely used for a few major reasons including cost, machinability, and weldability.

In looking for a more premium product, Composite Drivelines conducted a thorough materials analysis and determined 2024-T861 offered several benefits over the traditional 6061. The first benefit is a 60% increase in yield strength (the amount of force required to permanently deflect the material).

Additionally, there is a 43% increase in fatigue life (the increase in life given the same loading conditions). Lastly, a 21% increase in maximum service temperature. These improvements do come at a minor increase in material cost as well as increased machining difficulty, which we have accounted for in our designs.

SOMETHING COOL 2024-T861 was used as the structure for the Space Shuttle due to its high strength and resistance to heat and fatigue. The Composite Drivelines components are truly made from a space grade material.
