BMW M3 E30 / E36 / E46 Front E36, E46, E39, E9X Rear Custom Aluminum or Carbon Fiber HD Driveshaft (automatic and manual)

1-2 Weeks Lead Time

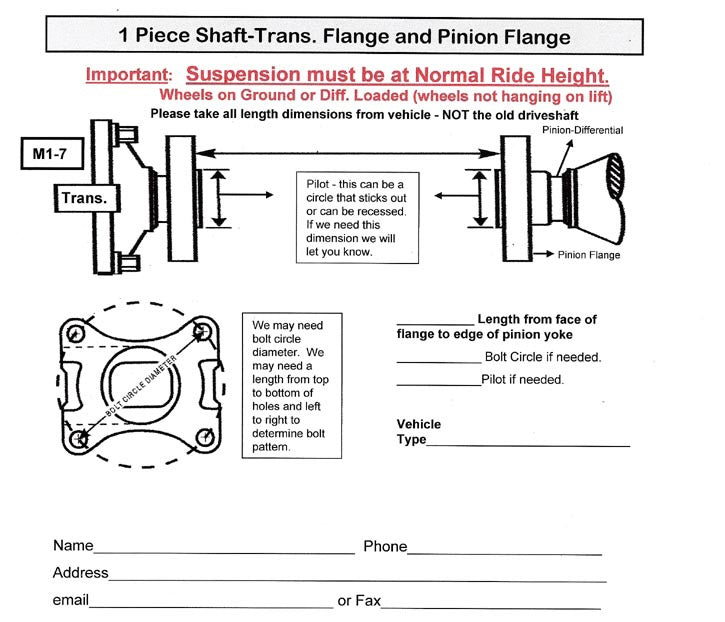

*****Must Provide Measurement from the Flat of Trans to the Flat of Differential.******

Email PB.EastCoastDrivelineInc@Gmail.com

This driveshaft is designed for all BMW E30, E36 and E46 driveshafts

Driveshafts are CUSTOM made to order 1-2 weeks.

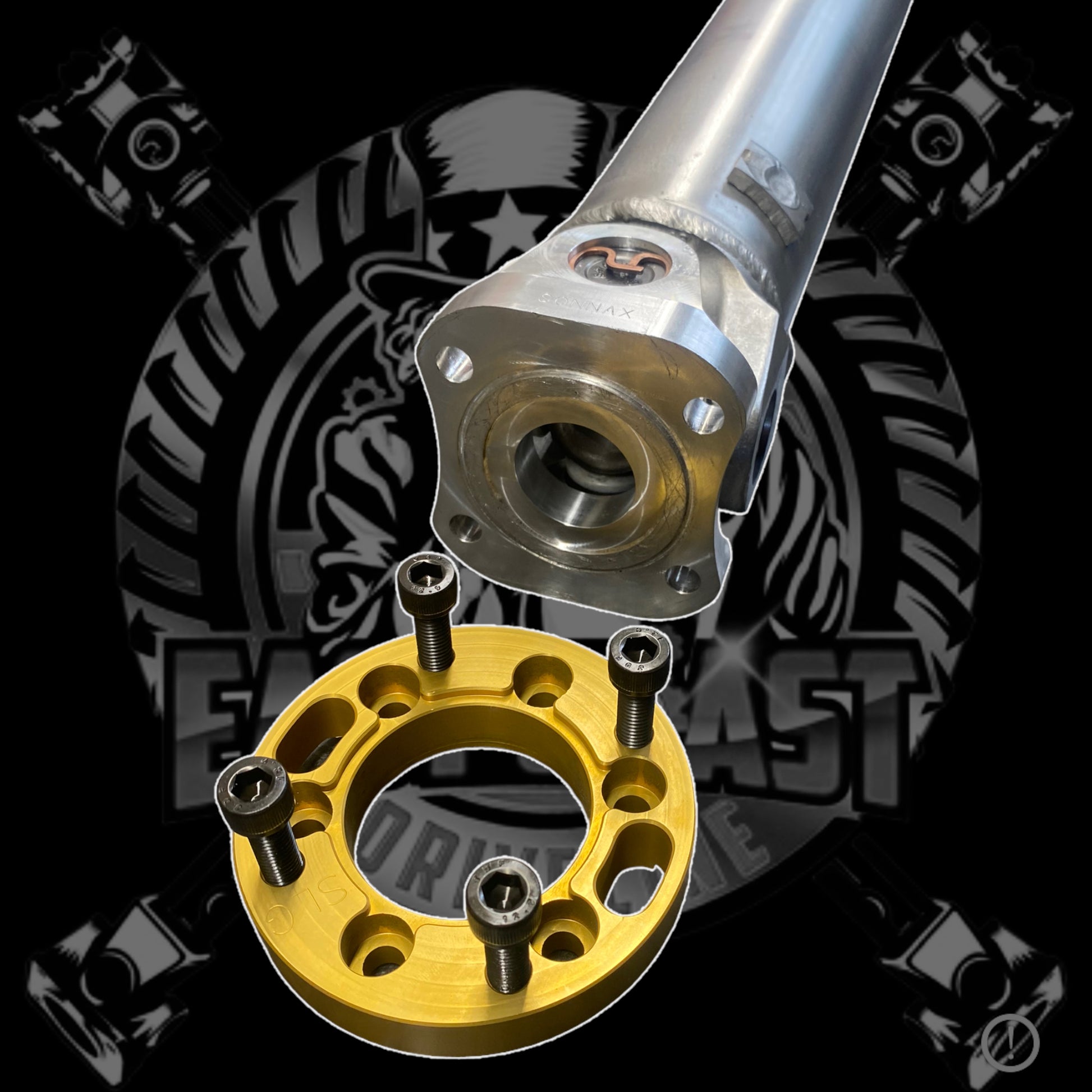

Say goodbye to expensive single piece driveshaft upgrades and CV-joint failures! These adapters let you use an extremely strong 1350 U-Joint on your BMW differential. Machined from billet 6061 aluminum to tight tolerances in the USA for an exact fit.

Includes high quality hardware. Has been used on vehicles with over 1200hp without a single issue.

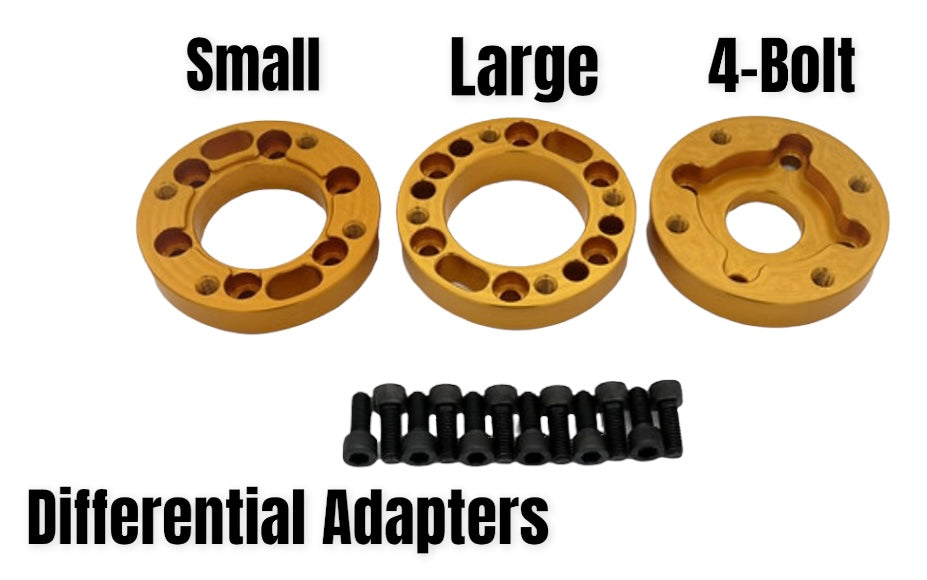

Fitment Notes: Differential

• Small 6-Bolt: 86mm bolt circle, common on all E46 and E39 models which use a CV
• Large 6-Bolt: 94mm bolt circle, common on E9x M3, M5's and 7 series differentials
• 4-Bolt: Compatible with diffs that use a factory u-joint at the diff. Common on non-M E46 and E36, some M3 E36, and many more
• Compatible with Dana Spicer #3-2-119 and equivalent yokes

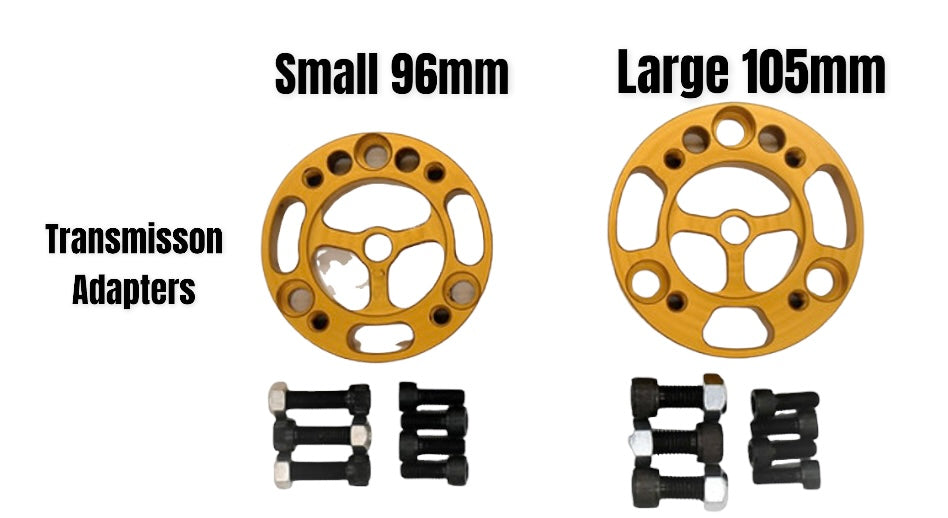

Fitment Notes: Transmission

• Smaller: Has 78mm (3.1”) 3 Bolt Circle
• Small: Fits all E36/E46/Z3 and 6 cylinder E39 models. FIts many more. 96mm bolt spacing.

• Large: Fits E39 M5 transmissions, 105mm bolt spacing with 14mm fasteners.

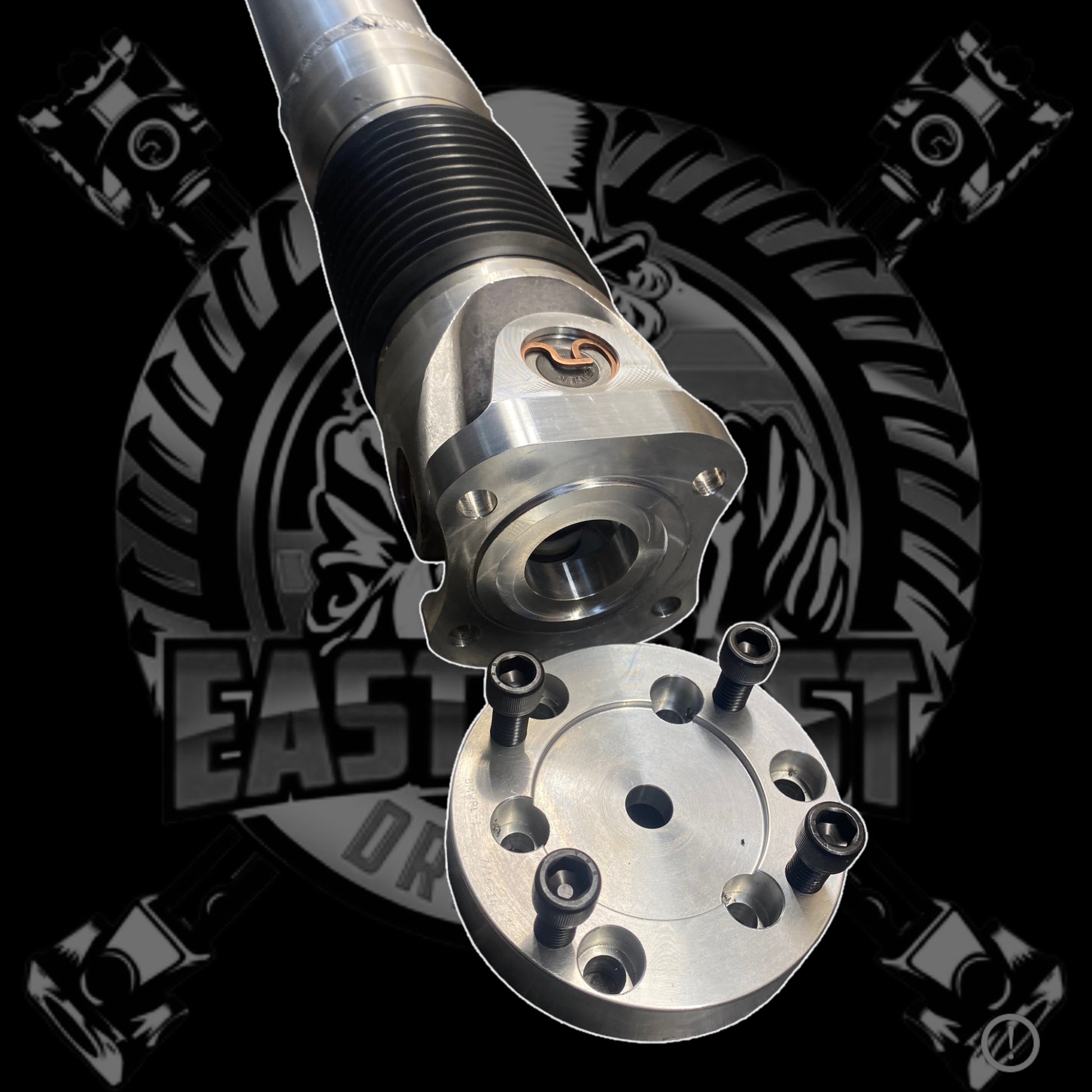

Lightweight billet aluminum adapter to mate your ZF 5, ZF 6, and Getrag 6 speed to a proper driveshaft.  These transmssions are commonly found in the E36, E46, E39 and more.

A great way to get rid of the terrible guibo and use a stronger and lighter single piece driveshaft when paired with our BMW differential adapter. Yoke adapters are drilled for larger and stronger 7/16 yoke bolts. The 1350 U-joint wont let you down like factory parts.

Features:

• Weighs just 11.5 ounces to keep rotational mass low
• Dynamically balanced using software during design
• All hardware included
• Works with the SPICER 1350: # 3-2-119 or equivalent yokes

A single Piece driveshaft is a great way to make your drivetrain way less sloppy, reduce weight, and increase strength. No matter what diff and transmission you have, we can make you a performance aluminum shaft to put the power to the ground.

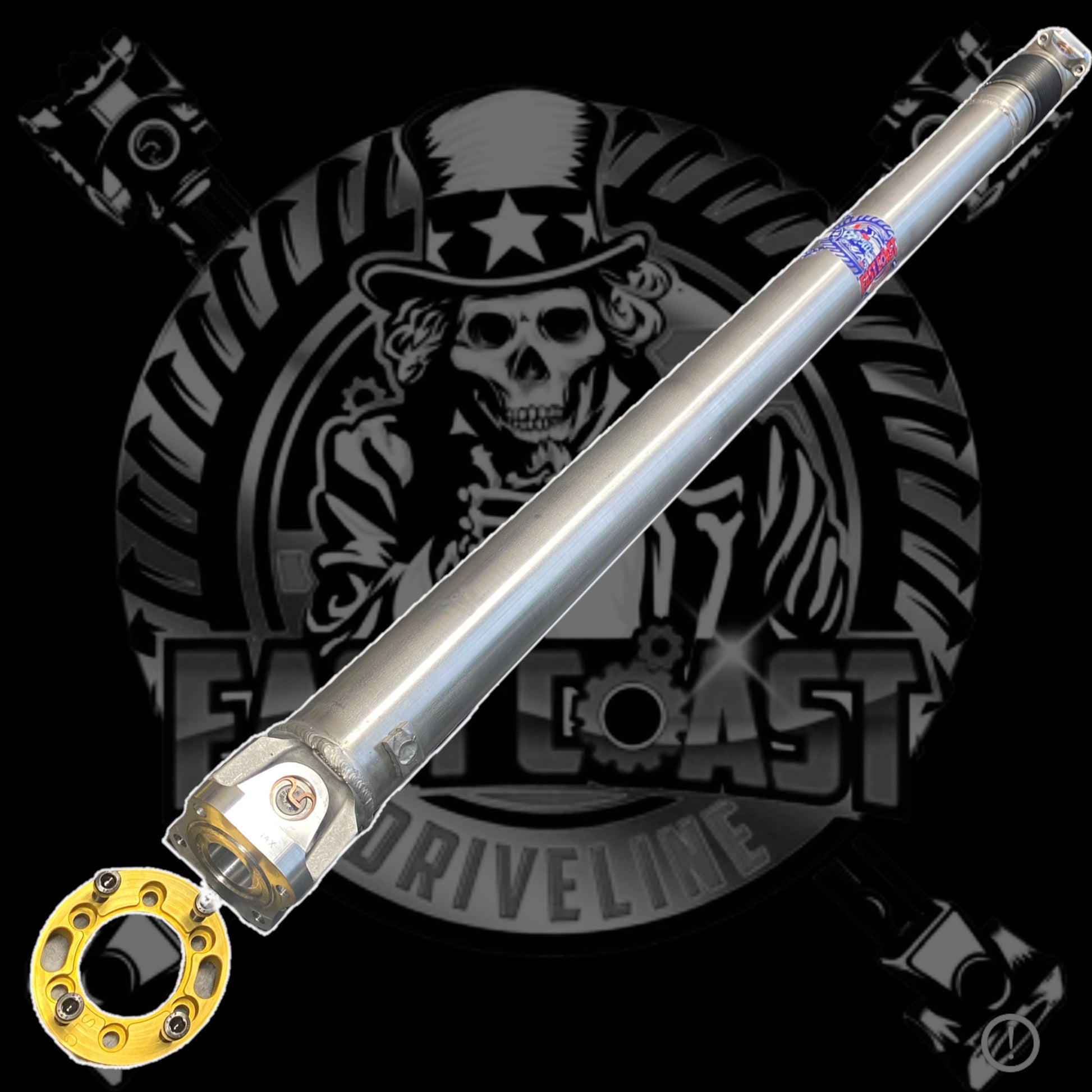

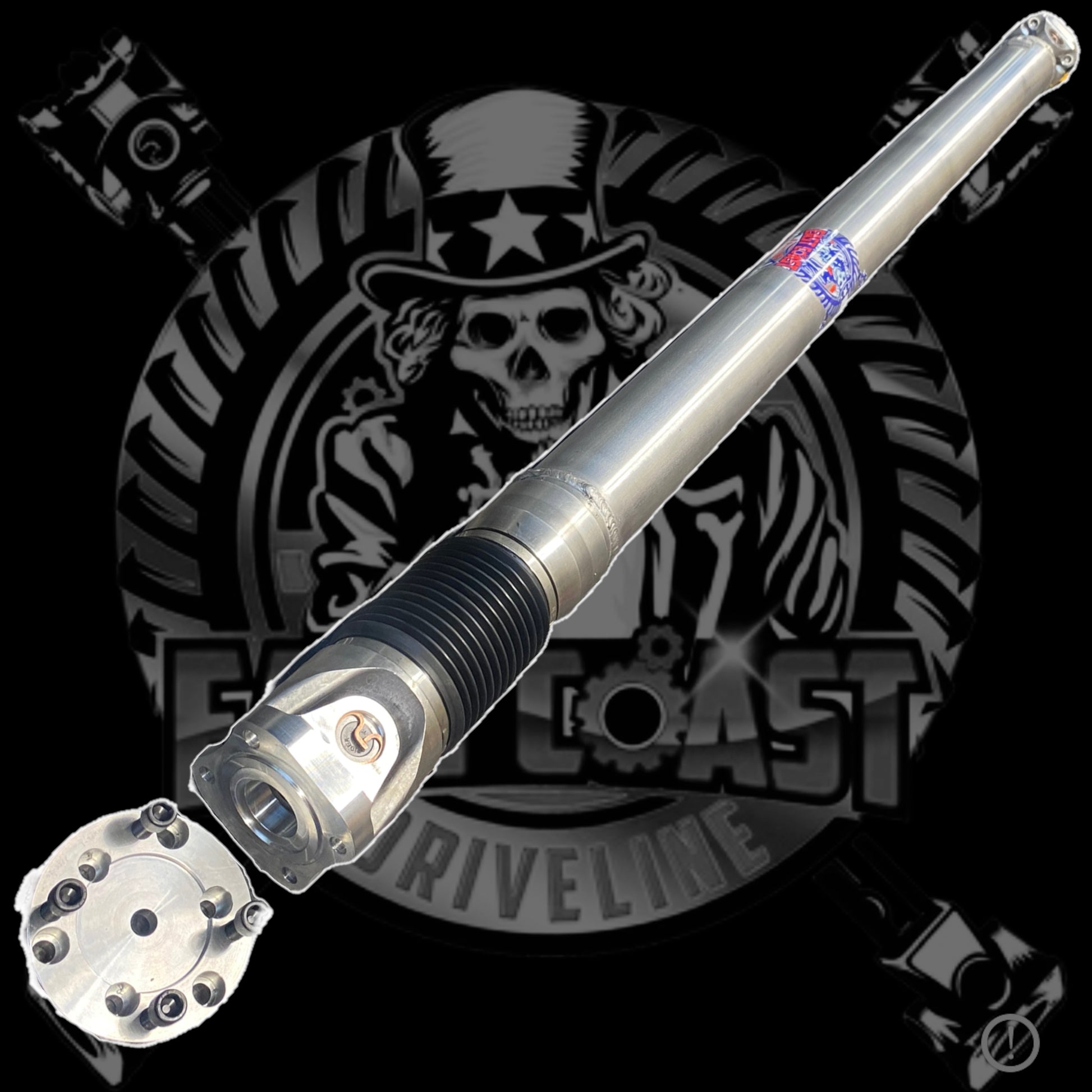

3.5" aluminum single piece driveshaft kit features billet adapters, a quality slip shaft, and super strong solid U-Joints that can take as much power as you can throw at them. Installation is as simple as just bolting it into place.

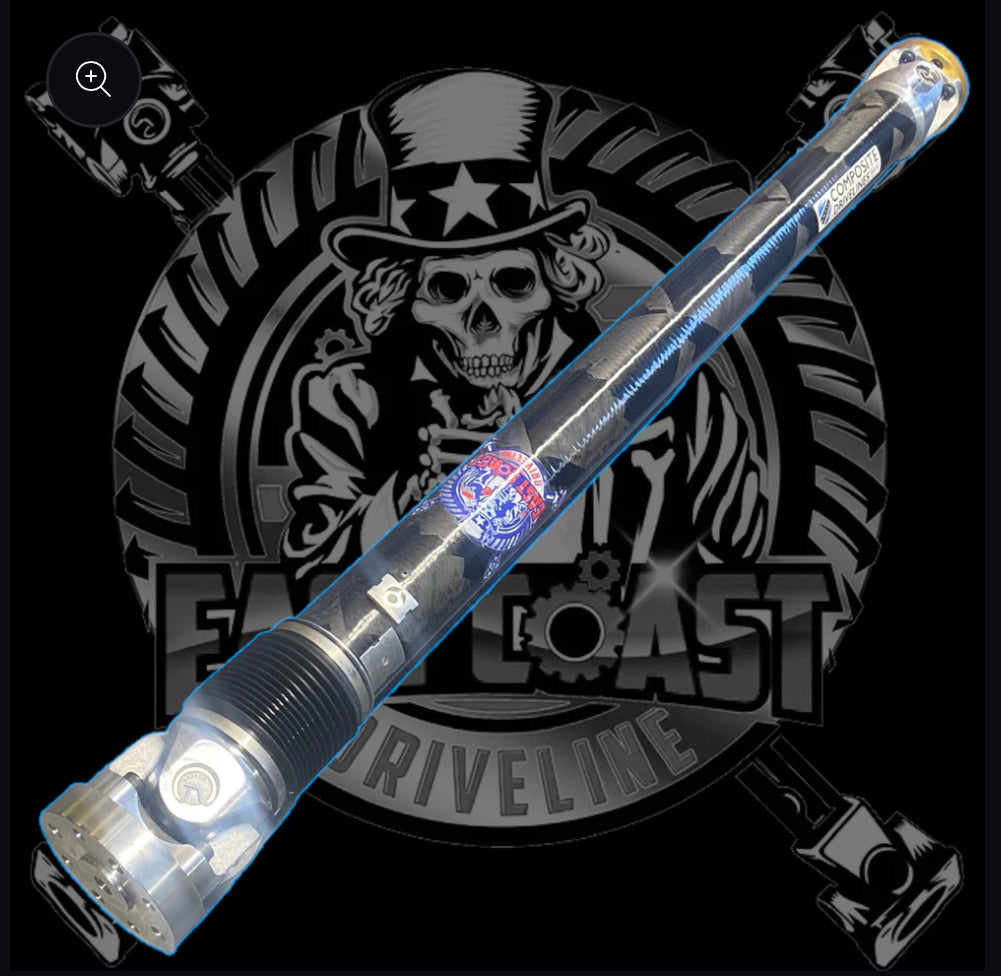

3.25“ Carbon Fiber single piece driveshaft kit features billet adapters, a quality slip shaft, and super strong solid U-Joints that can take as much power as you can throw at them. Installation is as simple as just bolting it into place.
