2003-2005 Ford Excursion 6.0L Diesel AWD/4WD HD Aluminum or Steel Rear Driveshaft

Custom Made to Order 1 Piece Aluminum Slip Sleeve Driveshaft. 2-7 Days to Build.

STOCK LENGTH IS 53 5/8” Flat of Transfer Case to Flat of Differential at Riding Height.

*** If Truck is Lifted the Customer Must Provide Measurement! Need to measure truck from Flat of Flange on Transfer Case to Flat of Flange on Differential*** while truck is at ride height without the suspension hanging. Email to:

PB.EastCoastDrivelineInc@Gmail.com

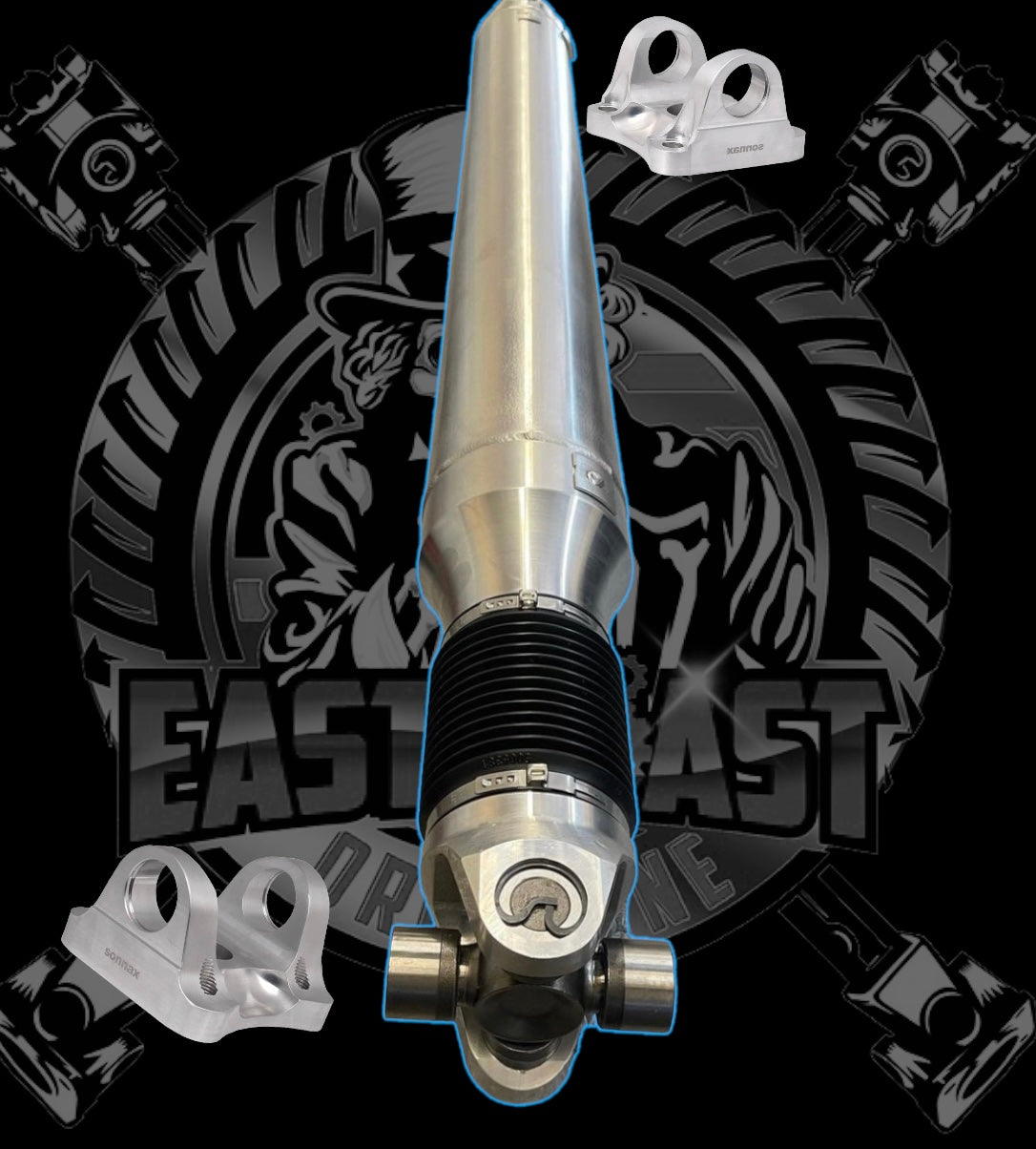

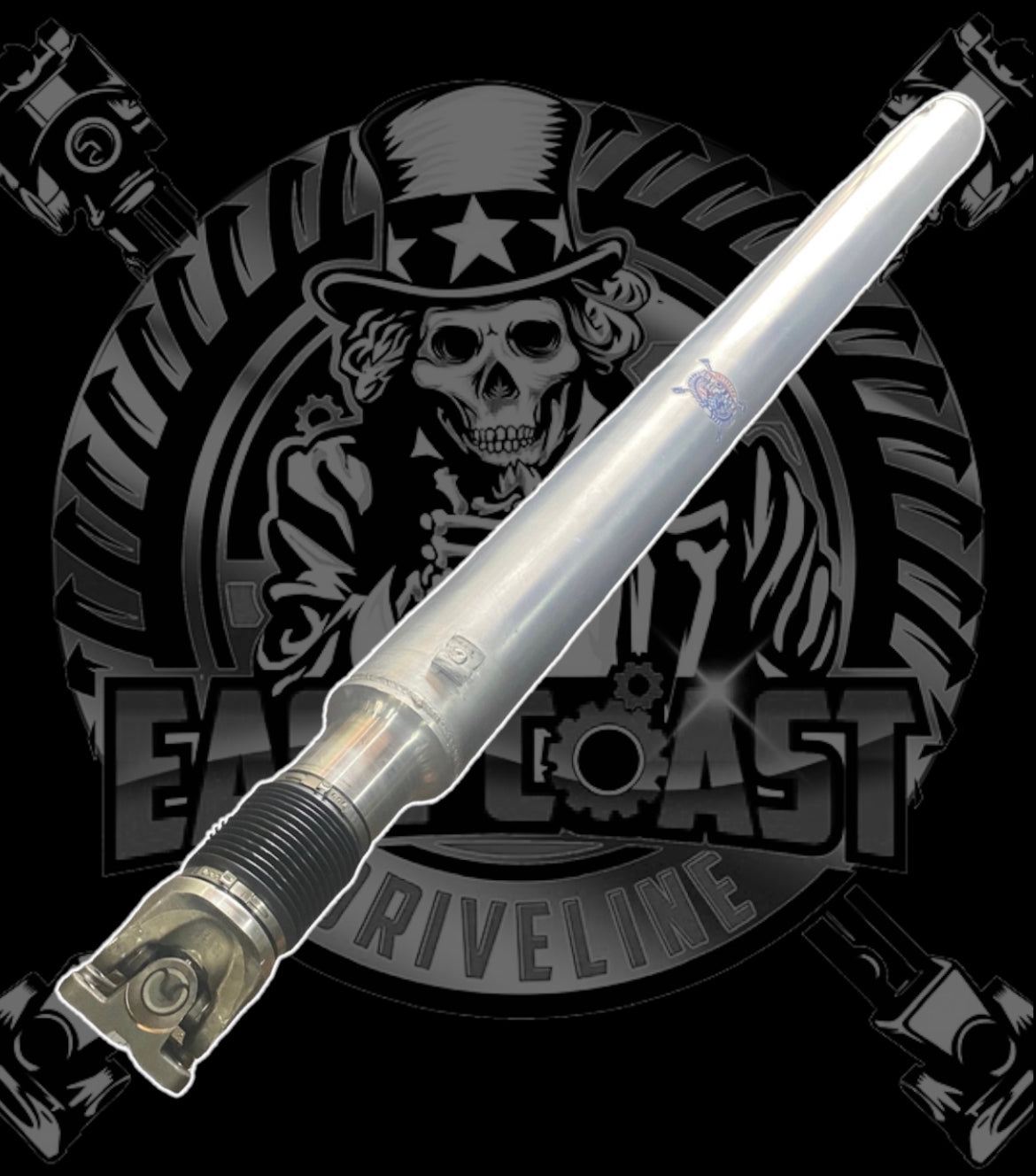

Aluminum Driveshaft made with heavy duty Sonnax 5”x.125” or 4”x.125” Tubing and solid u-joints. Comes with new Billet or cast iron flanges and hardware for both ends.

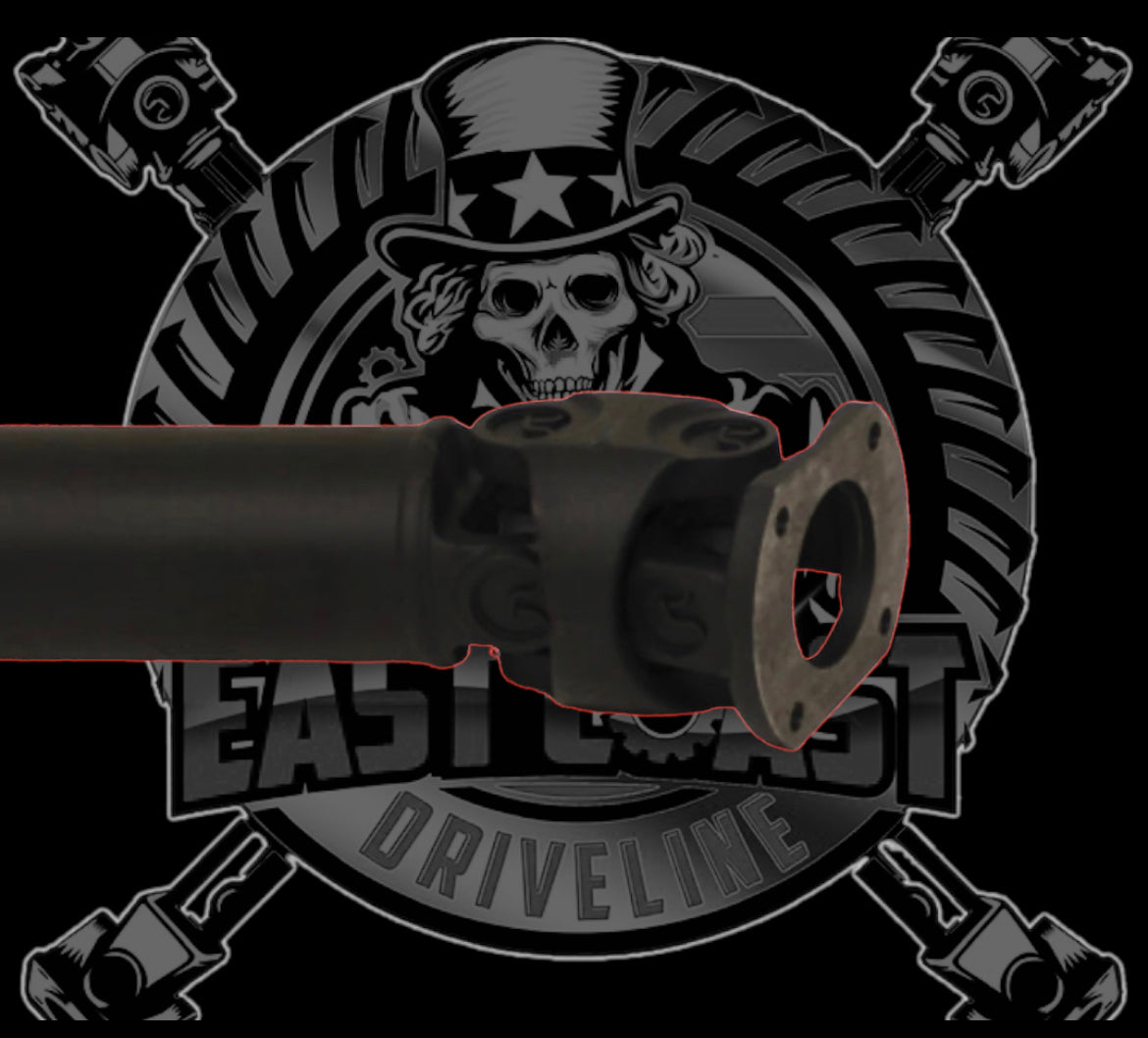

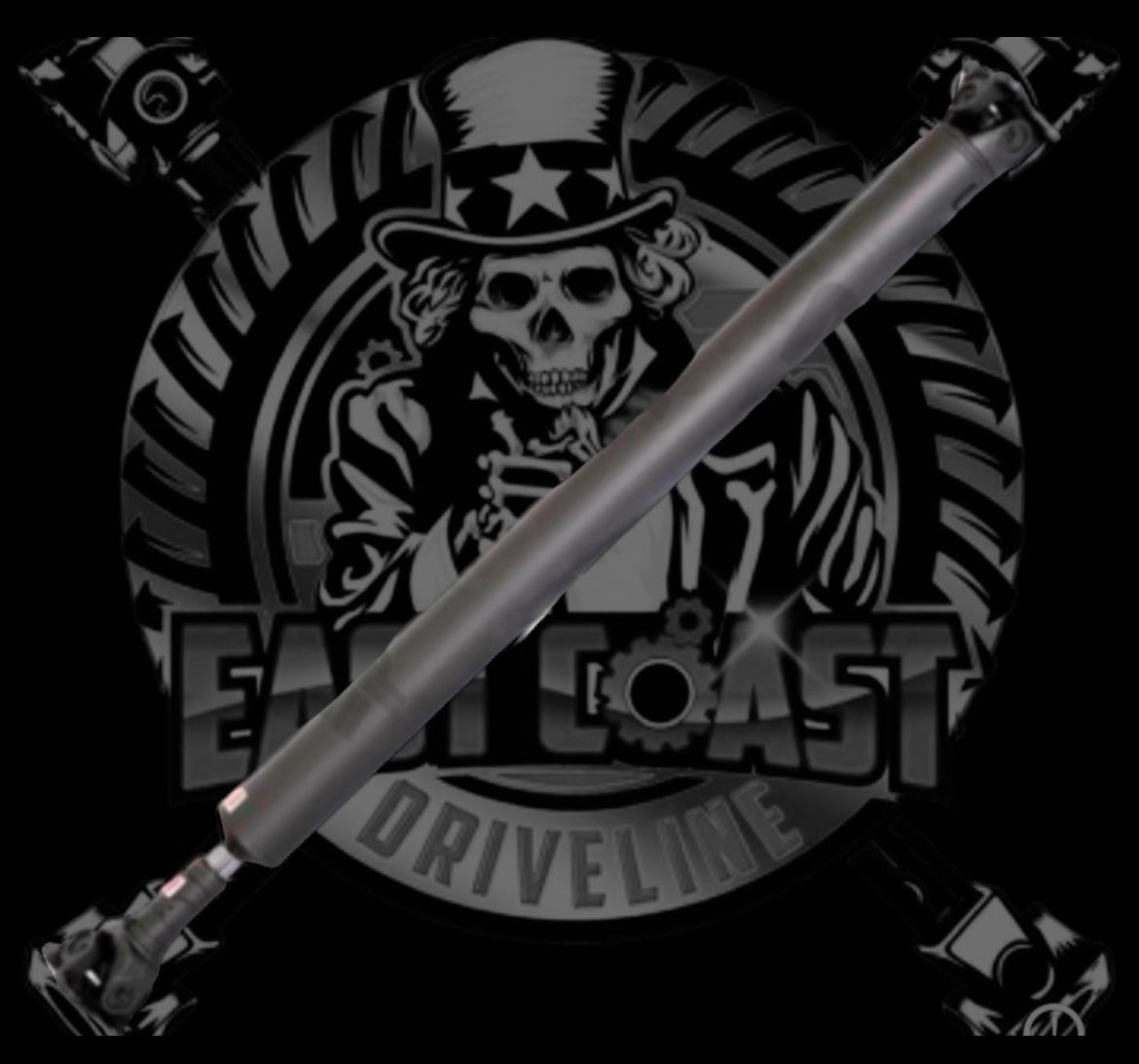

Steel Driveshaft made with Spicer 3.5”x.083” tubing, parts, and Solid U-Joints

Make sure new driveshaft has clearance away from hanger bearing bracket! REMOVE IF NEEDED! Any damage done to driveshaft by clearance issues voids all warranty.

FRONT FLANGE:

Pilot Type: F

Pilot Dia: 2.680

Bolt Cir Dia: 4.250

Bolt Hole Ct: 4

Bolt Hole Dia: 0.410

C/L to Face: 1.800

Swing Dia: 5.875

Joint Angle: 12.000

Sq Bolt Pattern / M12-1.75 threaded holes in flange

REAR FLANGE:

Pilot Type: F

Pilot Dia: 2.953

Bolt Cir Dia: 4.75

Bolt Hole Ct: 4

*** High Quality Aftermarket Replacement Part (Not OEM)***

* This Item Is Special Order. This Item Will Not Be Able To Be Canceled And Is Non-Returnable.
