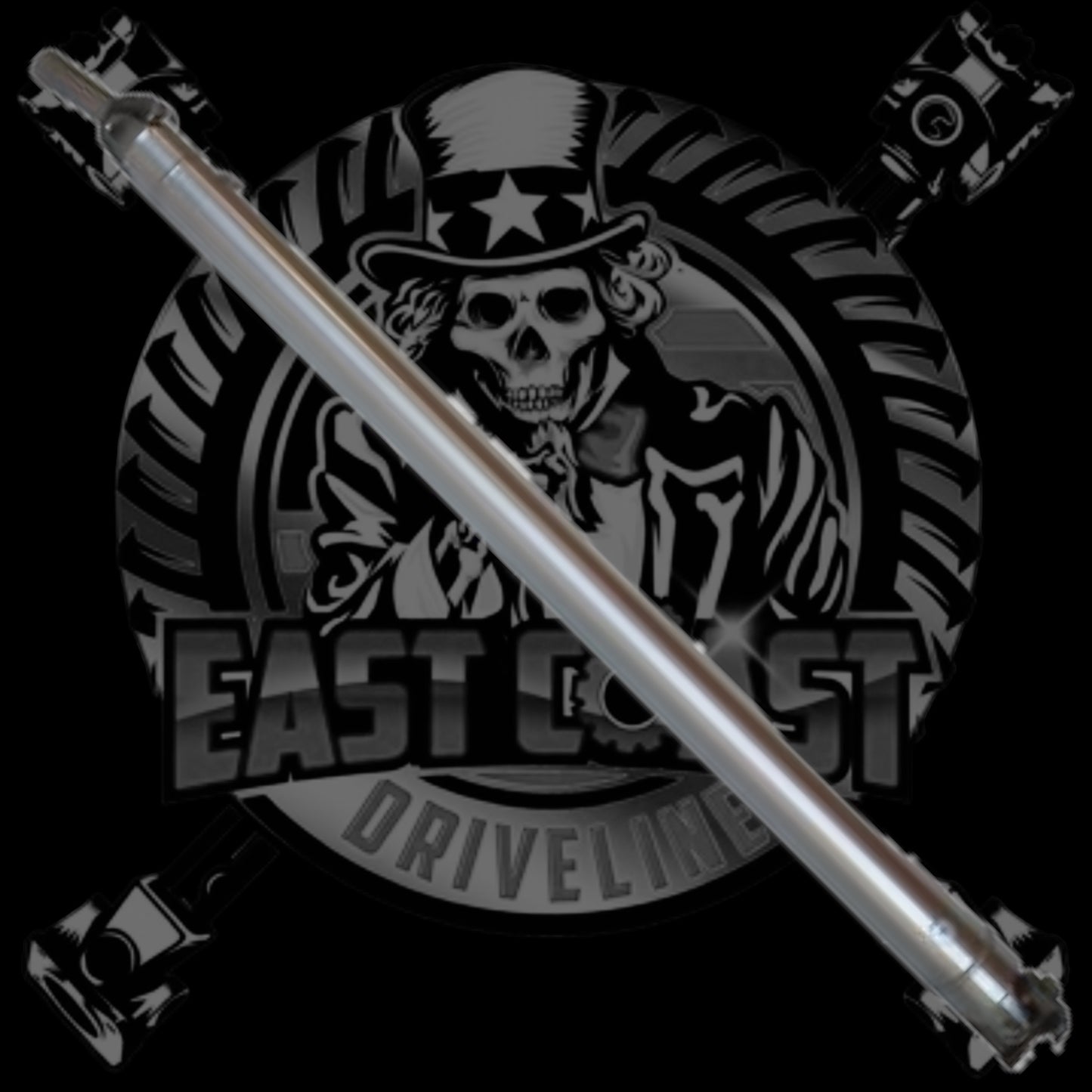

2004-2008 FORD F150 4X4 5.4L ROUSH S/C HD Aluminum or Steel Driveshaft – 64″- SKU# 5L34-4602-MA_HDALM4

2004-2008 FORD F150 4X4 5.4L ROUSH S/C HD Aluminum or Steel Driveshaft – 64″- SKU# 5L34-4602-MA_HDALM4

COMPLETE REAR DRIVESHAFT - PRECISION BALANCED, READY TO INSTALL

64" = APPROX LENGTH, CENTER OF UJ TO CENTER OF UJ

SPICER HD "SOLID" 1410 SERIES UNIVERSAL JOINTS (4 3/16"span X 1 3/16"cap)

4"dia X .125"thick = HD ALUMINUM TUBING

1.886"od X 30/31spline = TRANSFER CASE SLIP YOKE SPECS

4-bolt FLANGE YOKE @ DIFF END (4.25"diag bh spacing X 2"female pilot)

5L34-4602-HDALM4. THIS REPLACEMENT, HEAVY DUTY SHAFT IS INTENDED FOR THE 2004~2008 F-150 4 WHEEL DRIVE MODELS WITH THE OPTIONAL ROUSH SUPERCHARGED ENGINE. OUR HEAVY DUTY DRIVESHAFT UPGRADES THE STOCK SHAFT FROM A 1350 SERIES UNIVERSAL JOINT TO THE 1410 SERIES. ASSEMBLY COMES COMPLETE WITH SPICER 1410 SERIES H.D. NON-GREASABLE UNIVERSAL JOINTS, 4″dia X .125″thick ALUMINUM TUBING (oem is 3.5″steel), 30/31 SPLINE TRANSFER CASE SLIP YOKE, 4-bolt FLANGE YOKE @ DIFF END, PRECISION BALANCED ASSEMBLY – READY TO INSTALL.

PLEASE CONFIRM PART NUMBER(S) AND SPECS BEFORE ORDERING. IF YOU HAVE ANY QUESTIONS ABOUT FIT/APPLICATION – PLEASE CALL US!

REPLACES THE FOLLOWING:

4L34-4602-ME / 4L344602ME

4L34-4602-MF / 4L344602MF

4L3Z-4602-MC / 4L3Z4602MC

5L34-4602-MA / 5L344602MA

5L3Z-4602-MA / 5L3Z4602MA

004325304ME, 008408204ME, 02418005MA

Weight41 lbs

Shipping Dimensions: 70.0 × 6 × 6 in

Year

2004, 2005, 2006, 2007, 2008

Make

FORD

Model

F150 – 4WD (145"wb)

Engine

4.6L / V8, 5.4L / V8
