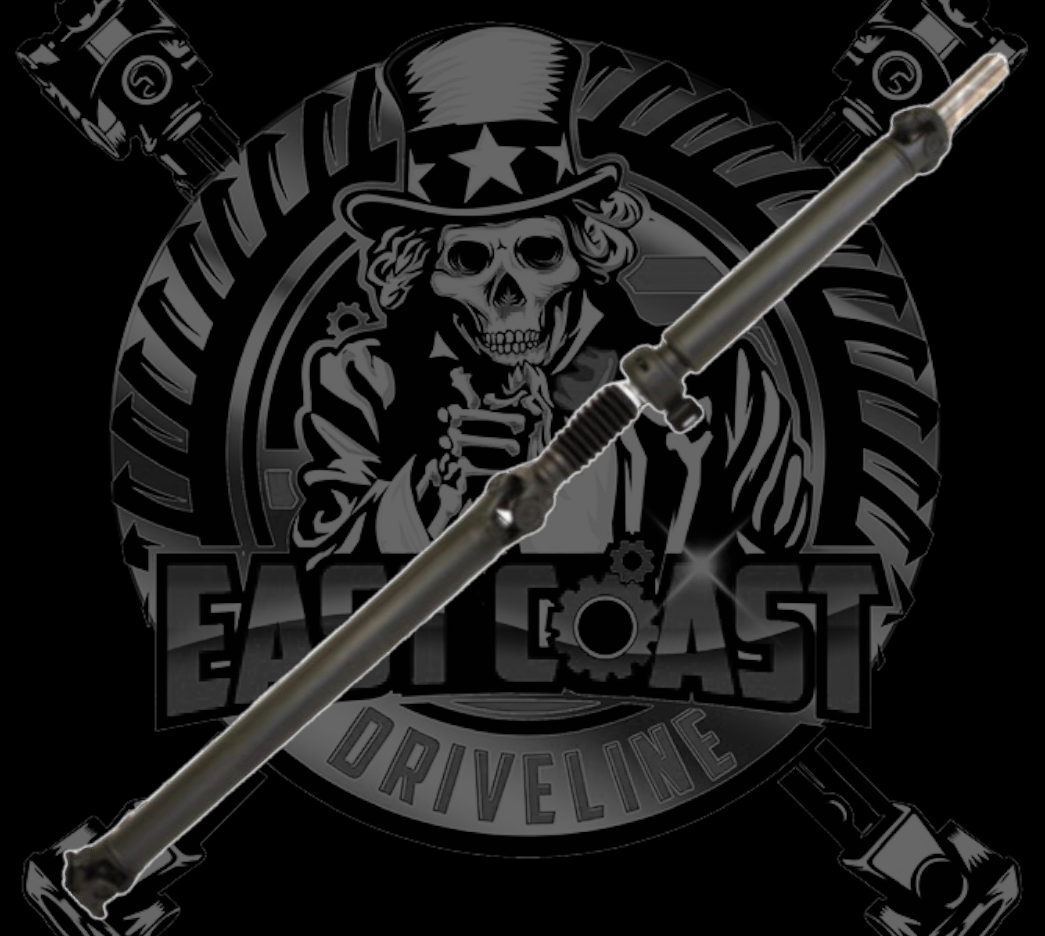

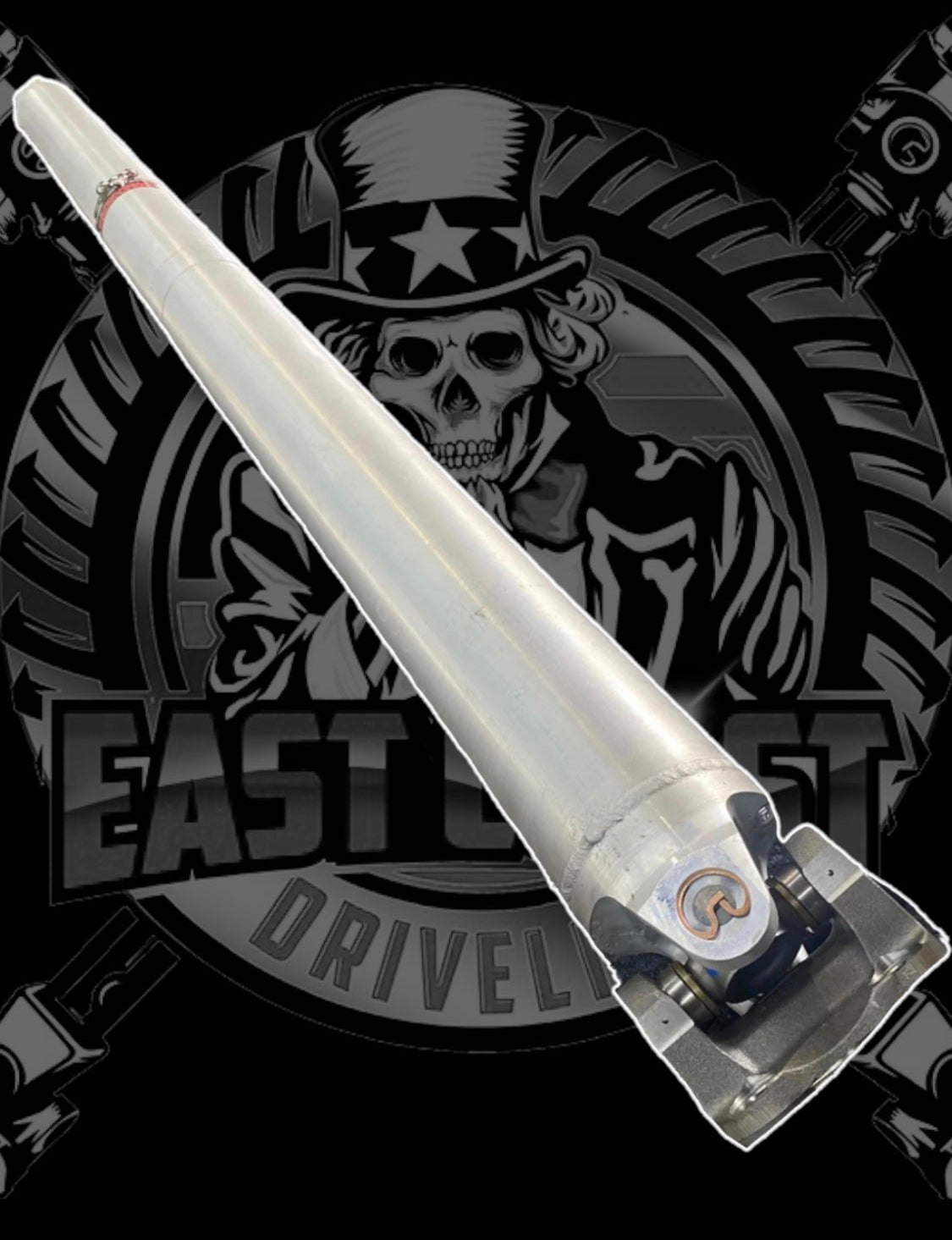

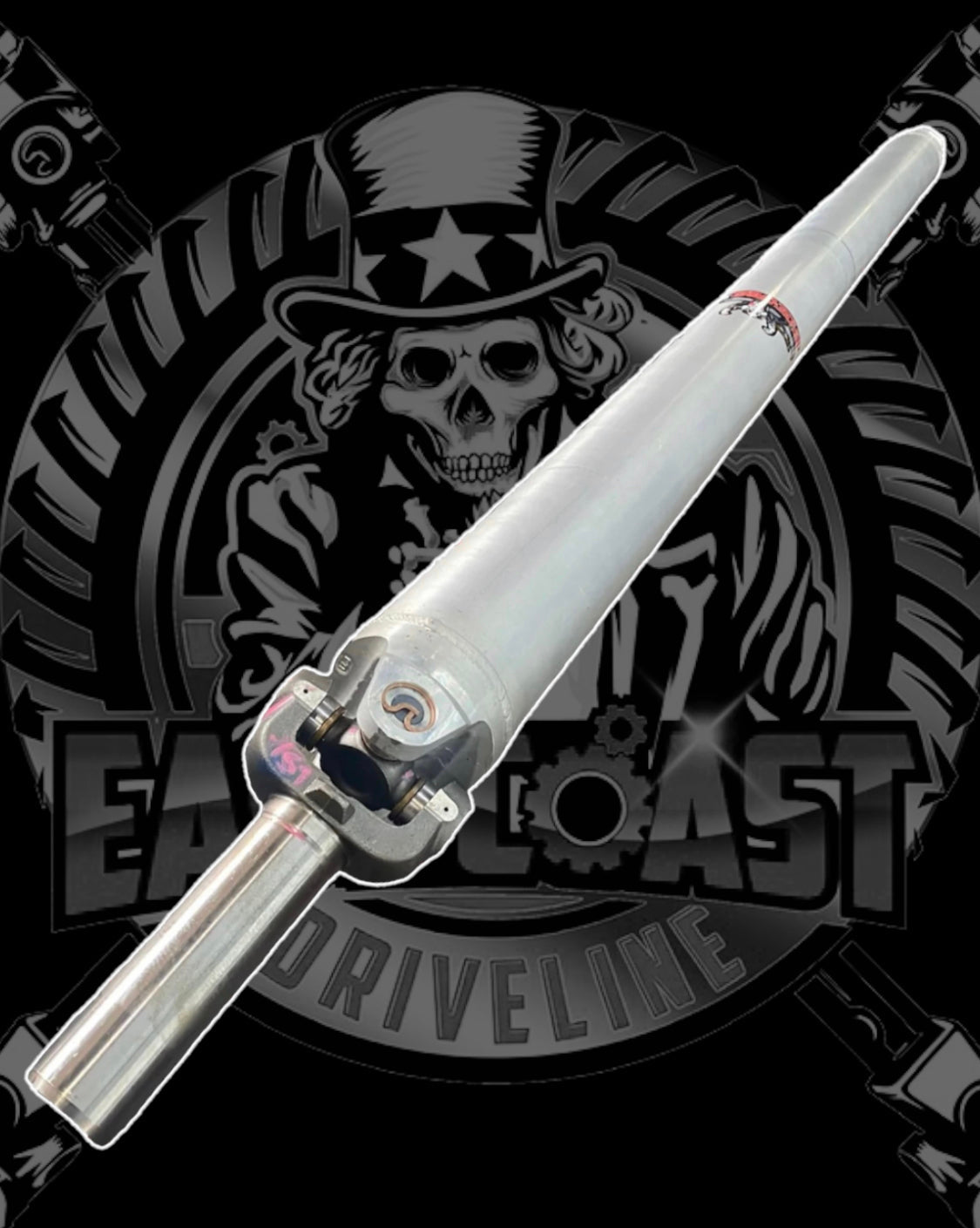

2005-2008 Dodge Ram 2500/3500 5.9L 4WD/AWD Manual G56(DEG) Trans HD 1 Piece Aluminum Rear Driveshaft or 2 Piece Steel – Replaces Dodge OEM 52123105AA, 52123105AB

Made to Order 2-5 Days Lead to Build and Ship

Made with Sonnax 5”x.125” Kaiser Aluminum Tubing and End Yokes. American Axle 1485 Series HD Solid U-Joints, Slip Yoke and Rear Flange.

2005-2008 Dodge Ram 2500/3500 5.9L 4WD/AWD Manual G56(DEG) Trans HD 1 Piece Aluminum Rear Driveshaft or 2 Piece Steel – Replaces Dodge OEM 52123105AA, 52123105AB

Stock Length 73-5/8” Center-line to Center-line on front and rear u-joints

***IF TRUCK IS LIFTED YOU MUST PROVIDE MEASUREMENT FROM EITHER:

1) 1 PIECE ALUMINUM Tip of T-Case Seal to Flat of Rear Flange

2) 2 PIECE STEEL Tip of T-Case Seal Center of Carrier Bearing and then Center of Carrier Bearing to Flat of Rear Differential

***ALL MEASUREMENTS TAKEN AT RIDE HEIGHT***

EMAIL TO PB.EastCoastDrivelineInc@Gmail.com

SLIP YOKE:

Series: 1480

Spline: 30/31

Spline Dia: 1.615”

Hub Dia: 2.201”

C/L to End: 9.551”

FLANGE YOKE:

Series: 1480

Pilot: 3.75” Male

Bolt Circle: 4.75” Square Pattern
