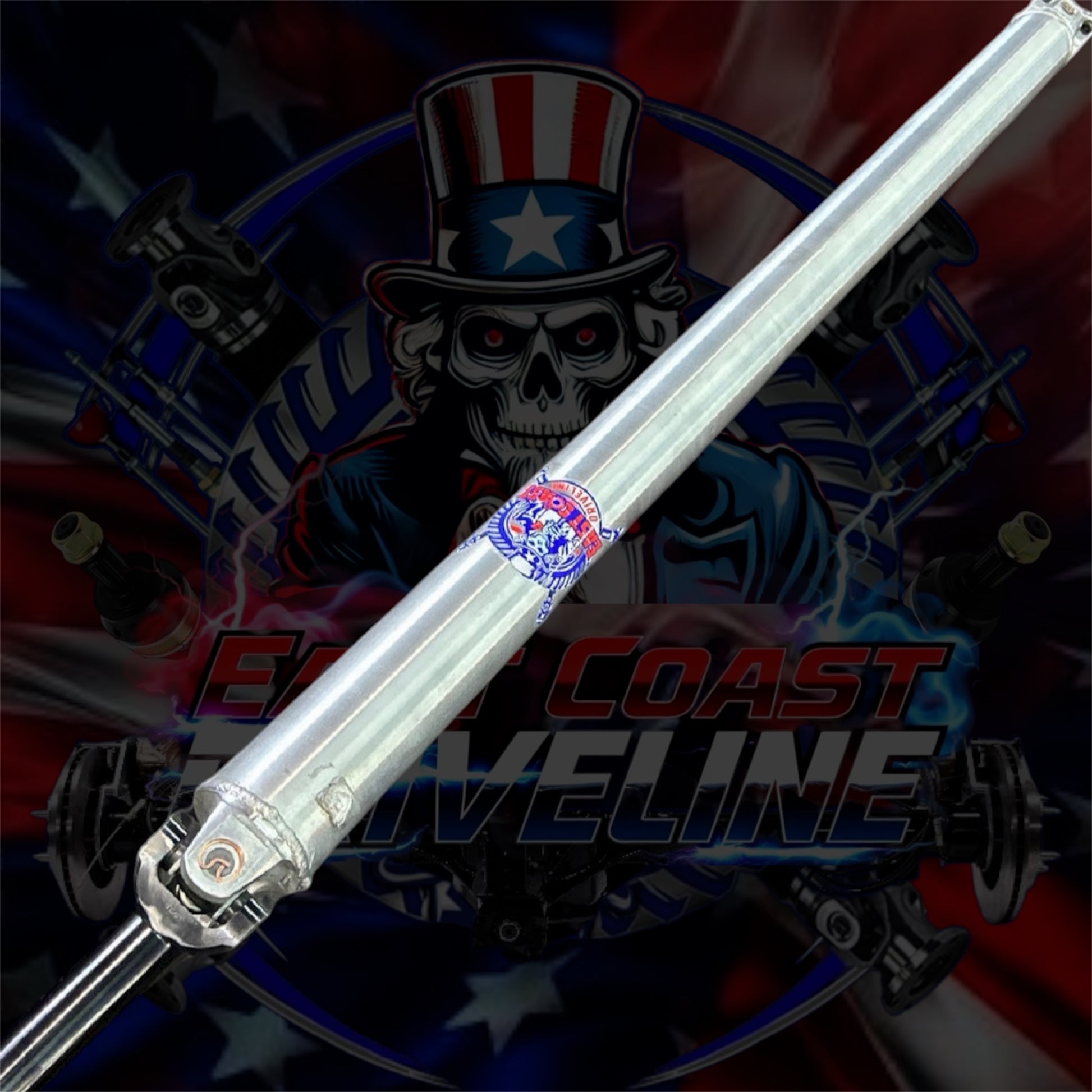

2005-2013 Chevy Silverado 1500 / GMC Sierra 1500 AWD/4WD Rear Driveshaft- Regular Cab Short Bed 119” WB

Made to Order 2-5 Days To Build and Ship

2005-2013 Chevy Silverado 1500 / GMC Sierra 1500 AWD/4WD Rear Driveshaft

Regular Cab Short Bed 119” WB

**FOR 4L80 SWAP YOU MUST PROVIDE NEW MEASUREMENT FROM TIP OF TRANSFER CASE SEAL TO FLAT FACE OF REAR DIFFERENTIAL PINION YOKE WHILE TRUCK IS AT RIDE HEIGHT

*****If truck is lifted or lowered you must provide new measurements from Tip of Transfer output shaft to Center of rear u-joint while truck is at ride height*** Email PB.EastCoastDrivelineInc@Gmail.com

Aluminum made with 3.5”x .125” or 4”x.125” Tubing, Chromoly Slip Yoke, and Solid Performance U-Joints.

Carbon Fiber made with 3.5x.155” (3.81”od) Tubing, Chromoly Slip Yoke, and Solid Performance U-Joints

DOM Steel made with 3.5”x.083” Seamless Tubing, Chromoly Slip Yoke, and Solid Performance U-Joints

2 Options on the stock rear pinion yoke.

3R Series has inside clip retainers, Cap size is 1-1/8”, and from inside clip to clip is 2.556” (No Tabs on Pinion Yoke)

1350 Series has outside clip retainers, Cap size 1-3/16”, and from outside cap to outside cap is 3.625” (Tabs on Pinion Yoke)

Driveshaft will be made stock length if no measurement provided.
