East Coast Driveline

2006-2008 SRT8 Front 4 Bolt X 2015-2020 Scat Pack Rear 8 Bolt Differential Custom Aluminum 4” Driveshaft

2006-2008 SRT8 Front 4 Bolt X 2015-2020 Scat Pack Rear 8 Bolt Differential Custom Aluminum 4” Driveshaft

Regular price $1,595.00 USD
Regular price Sale price $1,595.00 USD
Sale Sold out
Material

*Customer must provide measurement* Flat of Front Trans flange to Flat of Rear Differential flange


2006-2008 SRT8 (Front) Factory 4-Bolt Flange to 108MM CV Adapter (2″ Thick) with 2015-2020 Charger Scat Pack/SRT/SRT392/ Rear 8 Bolt 104mm (Rear) Differential Flange

Made-to-order 1-3 Weeks Build time to ship out.

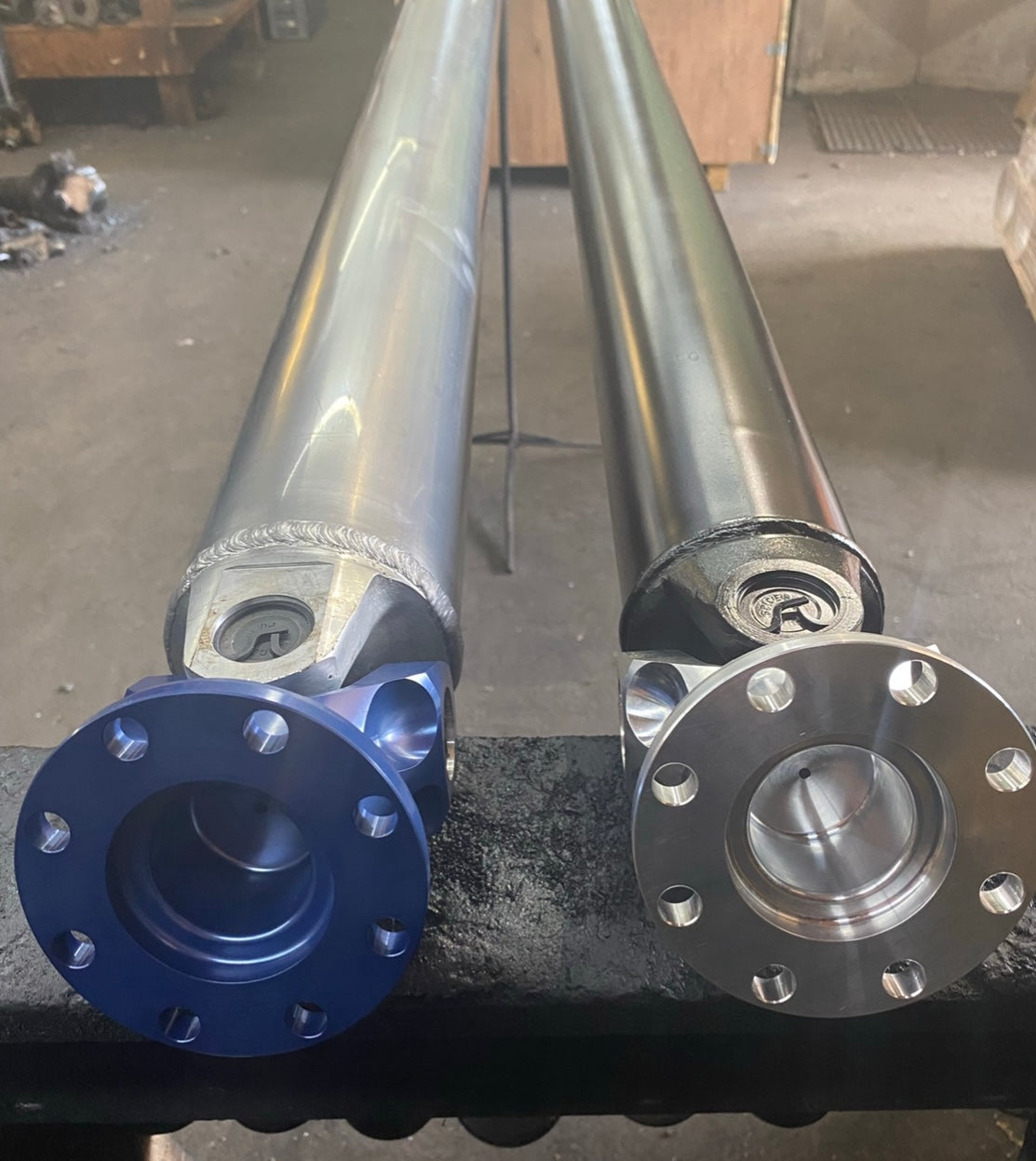

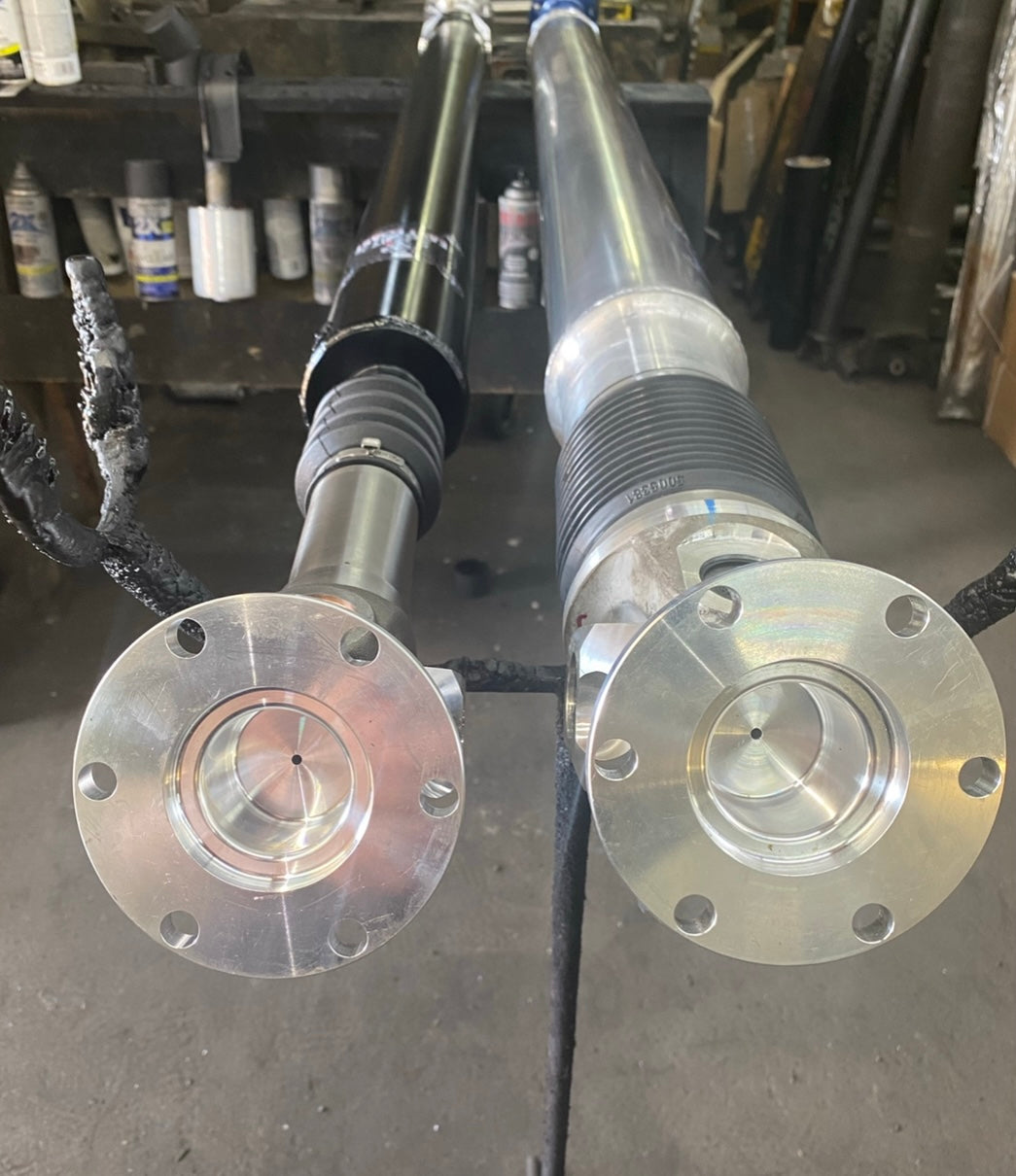

Driveshaft made with HD Sonnax 4" diameter driveshaft tubing TK400-125-72 that features stout .125" wall thickness, for use with 4" aluminum weld yoke ends and Aluminum Slip Sleeve. Billet 1350 Series Flange yokes on both ends with Solid Spicer 1350 Series U-Joints. Sonnax offers premium OE-quality Kaiser®aluminum tubing for the highest quality driveshaft builds. Everything from street to strip, on road and off, can benefit from the added strength and lighter weight of an aluminum driveline. Material: KDS4-T8

Can also be made in 3.5”x.125” HD Aluminum or 3.5”x.083” D.O.M Racing Steel Tubing.

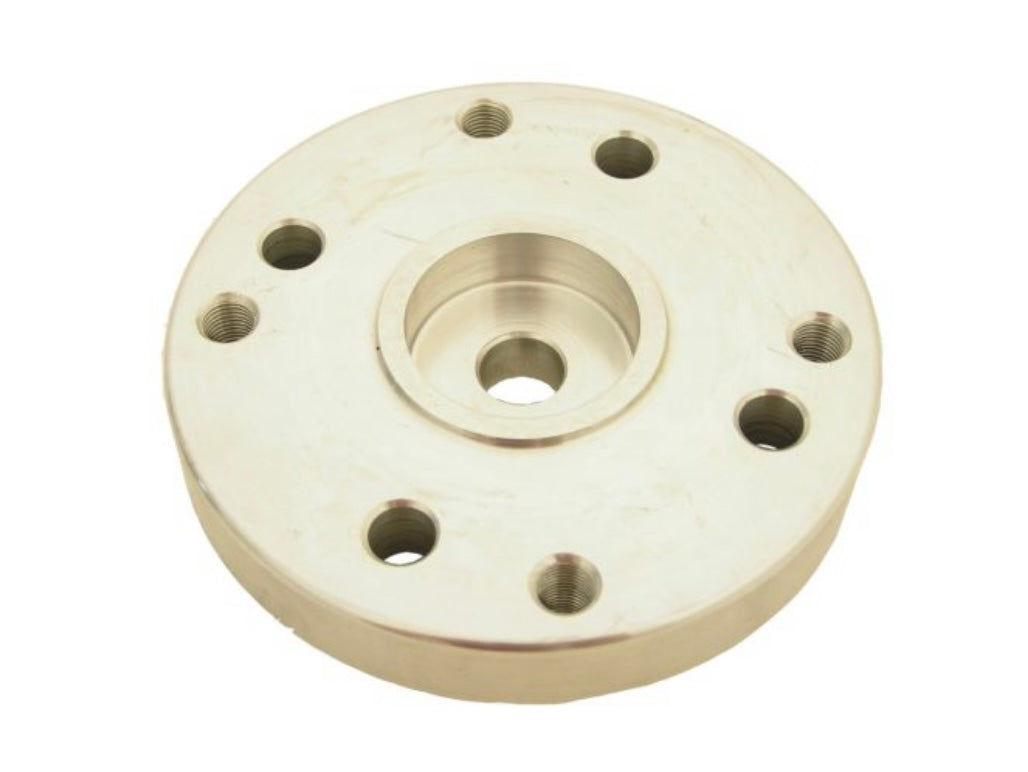

This 7075 aluminum conversion plate will adapt the factory SRT8 4-Bolt Differential Flange (auto and manual) to a 1350 4-Bolt U-Joint Flange. This is the same adapter plate as can be found on our line of pro-series driveshafts for these vehicles. They are precision machined on centers to maintain perfect centerline and will fit onto the centering-pin that is on the factory differential flange. Includes all necessary hardware to mount the adapter.
