2007-2017 Jeep Wrangler JK AWD/4WD INSANE Duty High Angle T/C 1410 Solid U-joint Series Rear Driveshaft (+44” Tall Tires)
2007-2017 Jeep Wrangler JK AWD/4WD INSANE Duty High Angle T/C 1410 Solid U-joint Series Rear Driveshaft (+44” Tall Tires)
*Made-To-Order* 2-5 Day Build Time.
Insane Duty 1410 Series High Angle Driveshaft made for trucks with bigger than 44” Tall Tires
Application: 2007 to 2018 Jeep JK Wrangler's 2 or 4 Door Models. These driveshafts are custom made so if you have altered the Rear differential, or transfer case example: [Dyna track housings, Spicer Ultimate 60's or Atlas Transfer cases] we can accommodate you. We will just need to know this Information after you have ordered.
***Once order is placed Rear Differential and Transfer Case Yokes will be shipped to you for measurements. Must measure from center of new differential yoke to flat of new transfer case yoke for both front and rear driveshafts. Once measurements are sent to Sales@ECDriveline.com, driveshafts will be made and shipped within 24 Hours.
***Please Note: Depending on the size and manufacturer of your lift kit, rear upper adjustable control arms may be needed to help set the pinion angle***
These Insane Duty Solid 1410 CV Driveshaft will work for trucks with bigger than 44" Tall Tires.

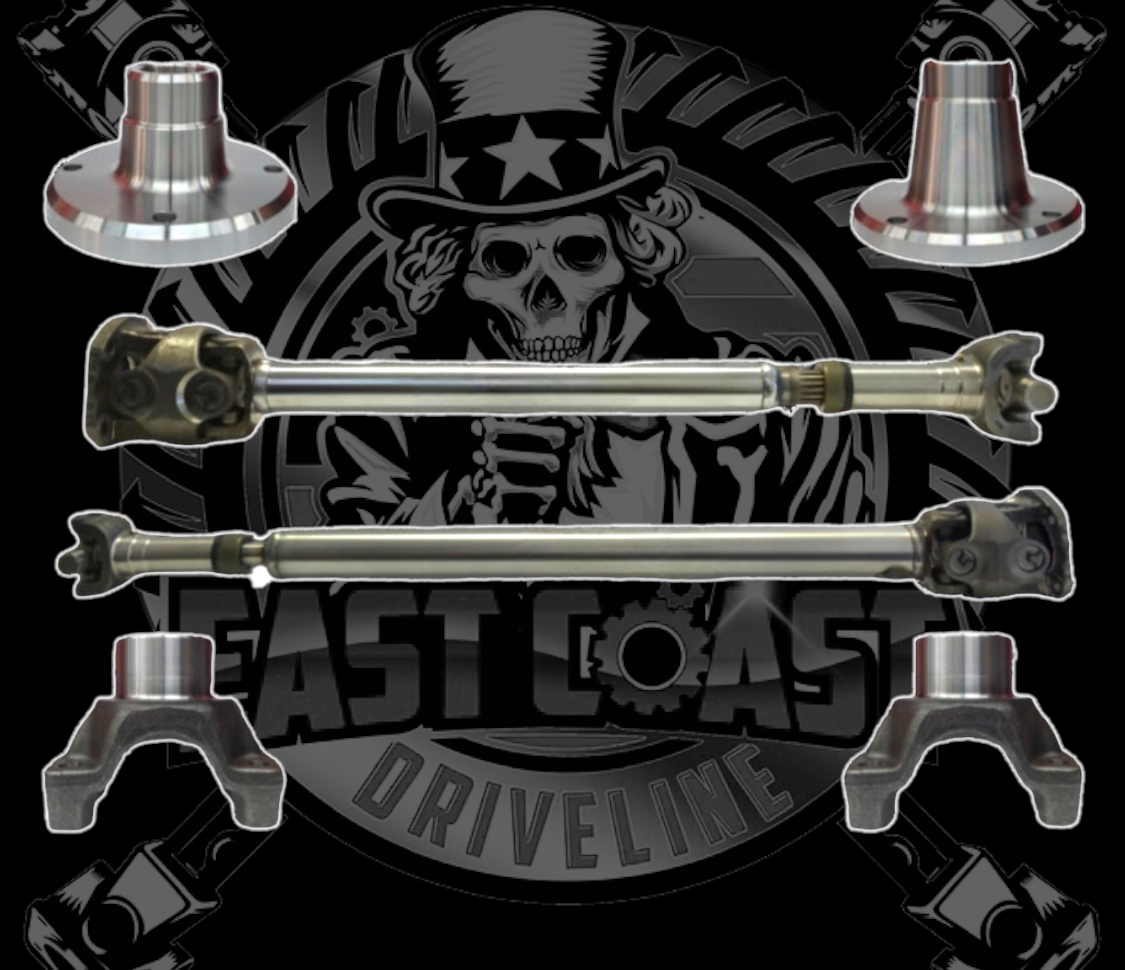

This Item will include the following parts:
[1] 1410 Solid U-joint 2 1/2" X .095 Wall Rock Crawler CV Driveshaft. Lifetime Warranty if you twist our Tube or break a Welds due to Torque.
[1] 1410 Rear Transfer Case Output Shaft Flange Yoke with 1410 High Angle Double Cardan
[1] 1350 Rear Dana 44 Pinion Yoke.
[1] Set of 1350 U-bolts.
[1] Set of 4 CV Bolts.
