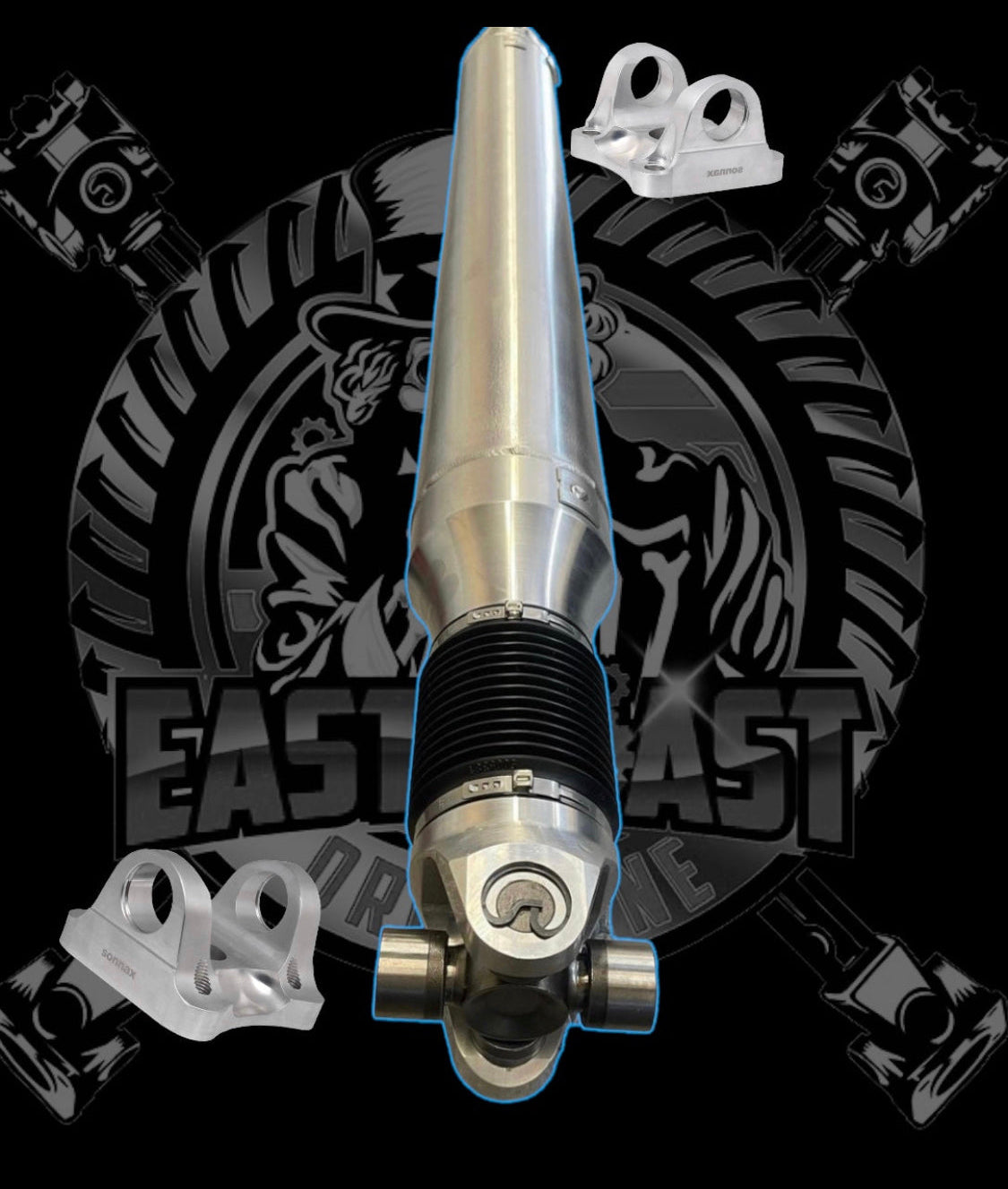

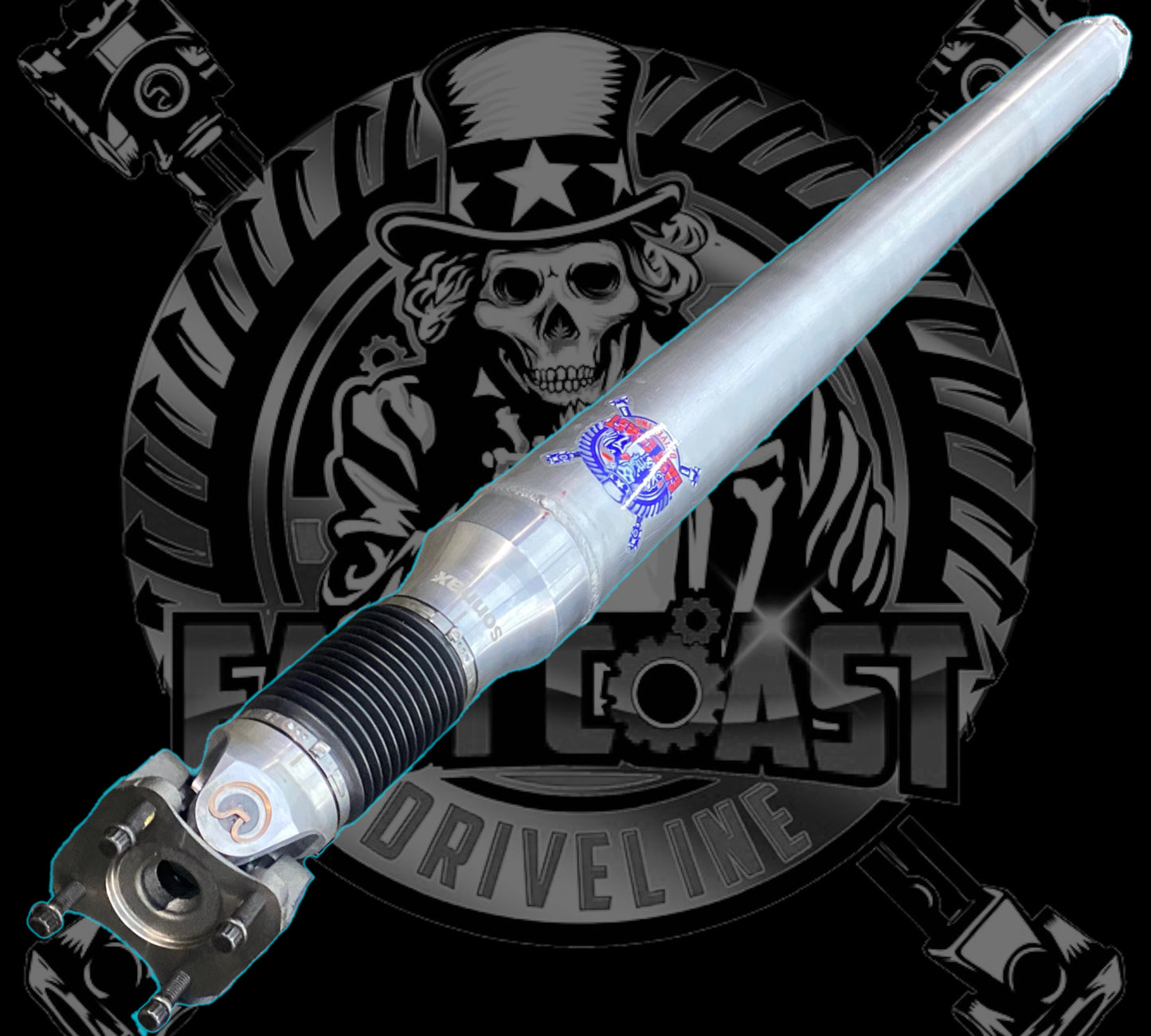

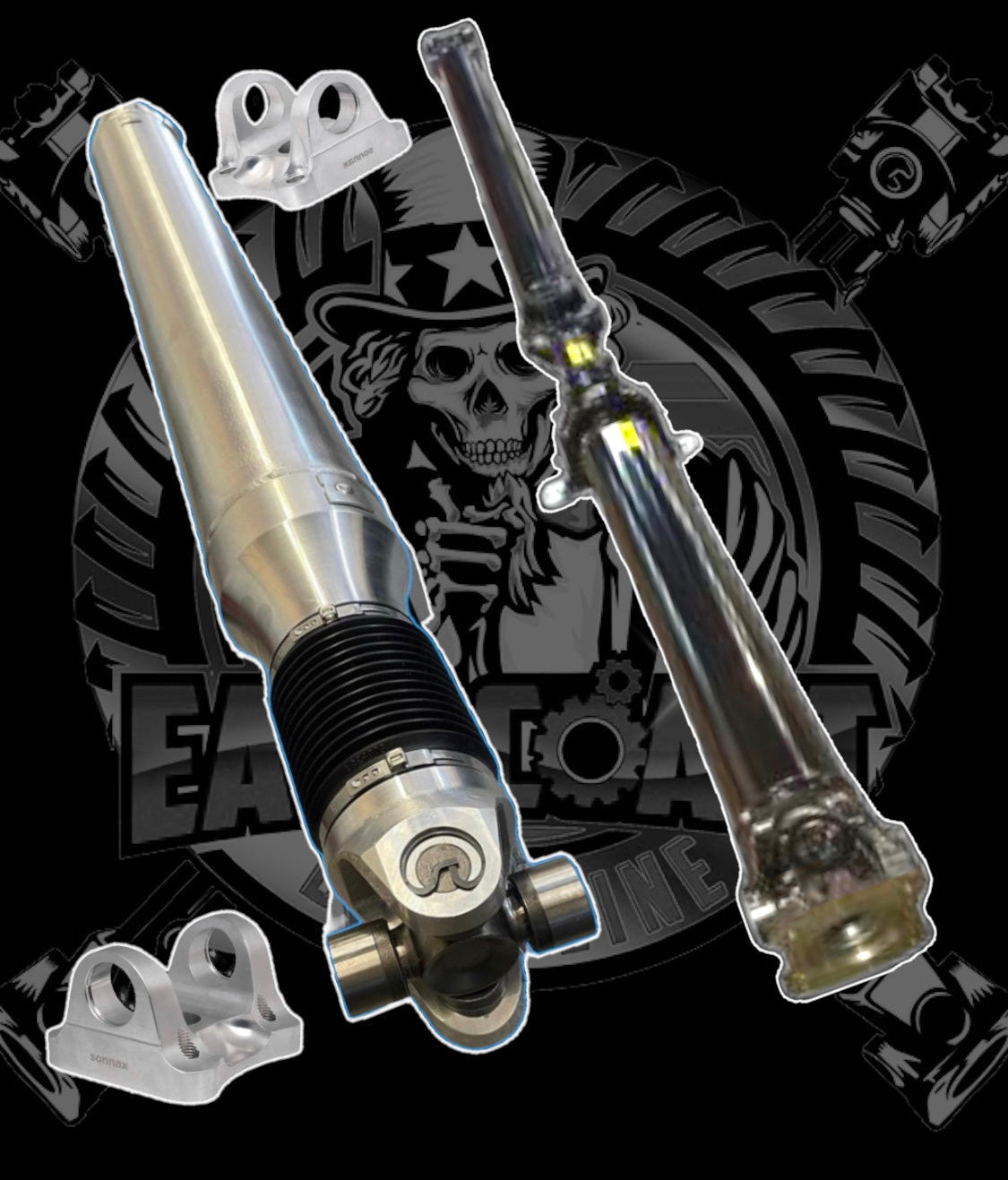

2011-2014 Ford F350 Super Duty AWD 6.7L Diesel Dually Crew Cab 8’ Bed 172”WB HD 1 Piece 1480 Series Aluminum Driveshaft

Made to Order 2-7 Days Lead Time

Made with Sonnax HD 5”x.125” Tubing and Solid Spicer 1480 Series U-Joints

IF TRUCK IS LIFTED YOU MUST PROVIDE NEW MEASUREMENTS FROM FLAT OF TRANSFER CASE FLANGE TO FLAT OF REAR DIFFERENTIAL FLANGE WHILE TRUCK IS AT RIDE HEIGHT.

Email measurement to PB.EastCoastDrivelineInc@Gmail.com for custom length.

Stock Length is 88 5/8” Flat to Flat

FRONT FLANGE:

Pilot Type: F

Pilot Dia: 2.680

Bolt Cir Dia: 4.250

Bolt Hole Ct: 4

Bolt Hole Dia: 0.410

C/L to Face: 1.800

Swing Dia: 5.875

Joint Angle: 12.000

Sq Bolt Pattern / M12-1.75 threaded holes in flange

REAR FLANGE:

Pilot Type: F

Pilot Dia: 2.953

Bolt Cir Dia: 4.750

Bolt Hole Ct: 4

Bolt Hole Dia: 0.510

C/L to Face: 2.000

Swing Dia: 5.850

Sq Bolt Pattern / Hole in center
