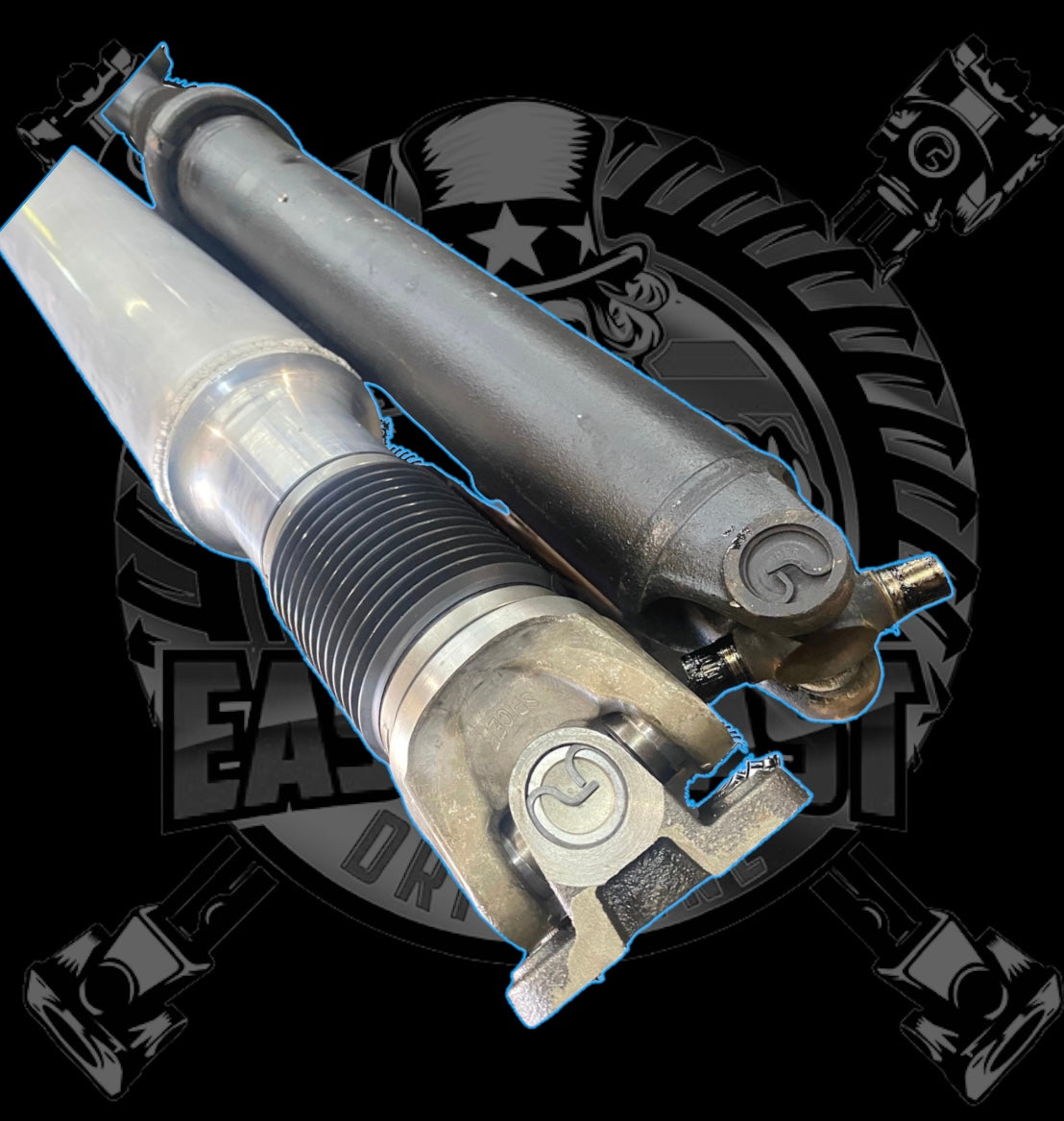

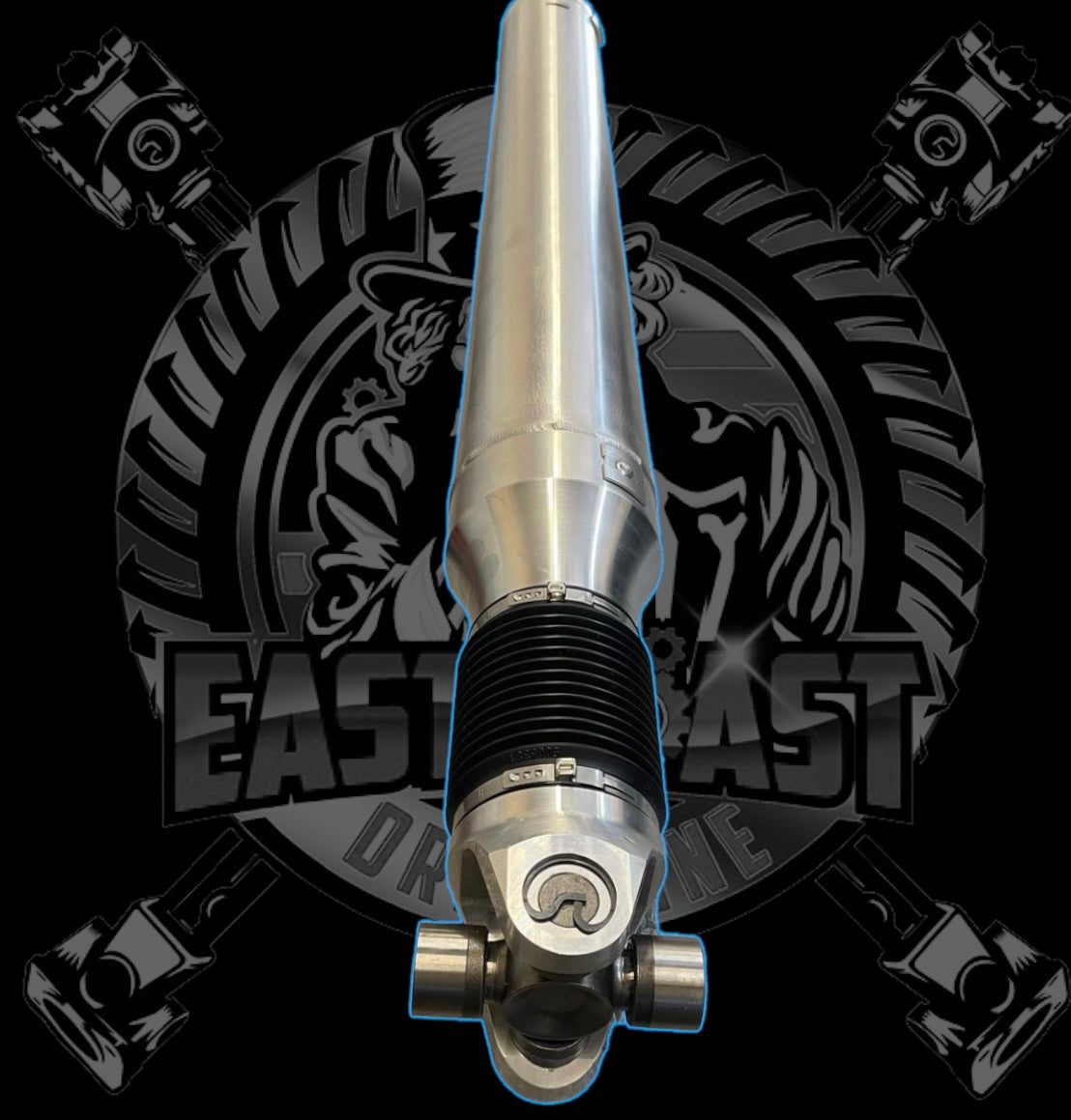

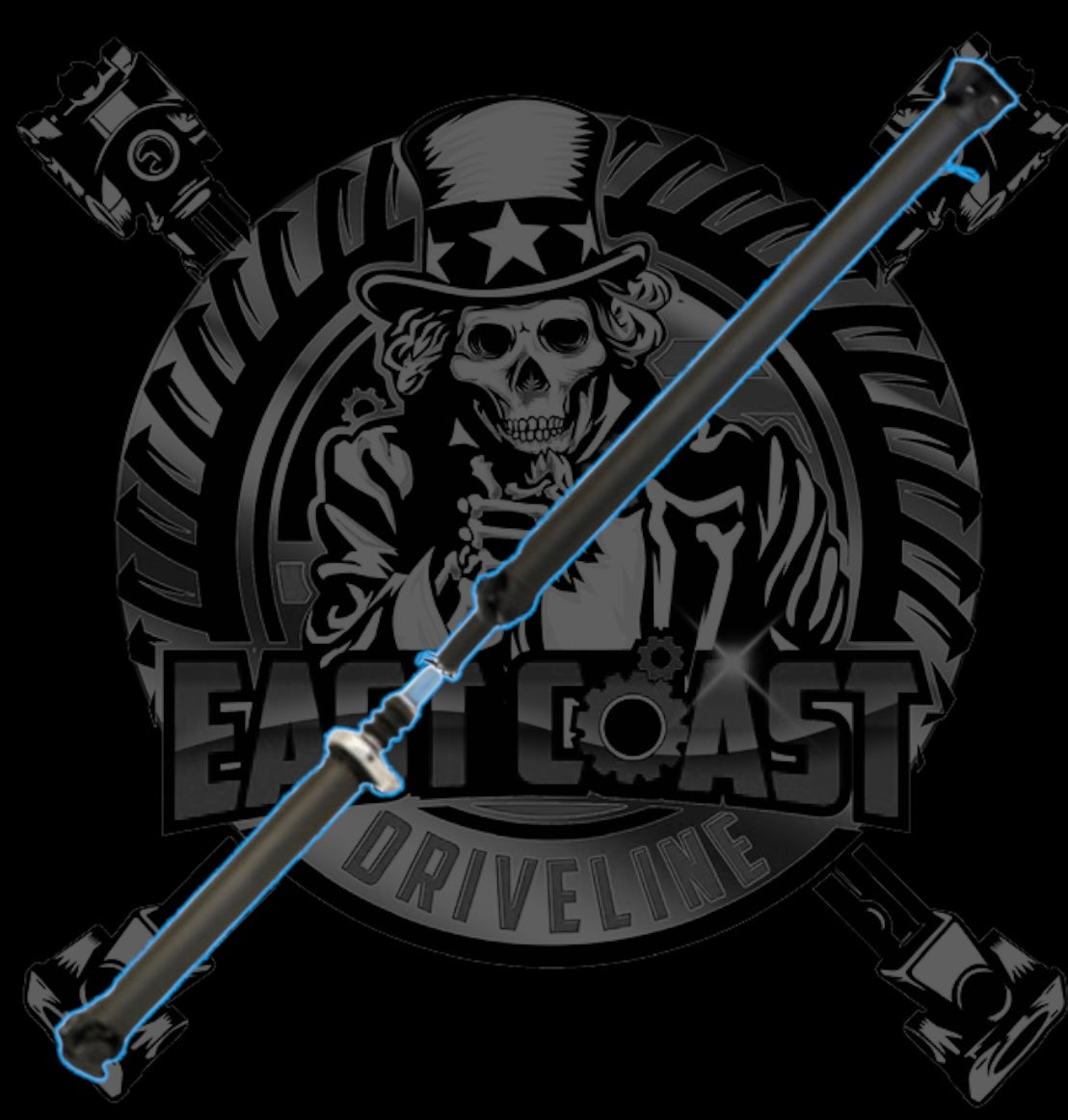

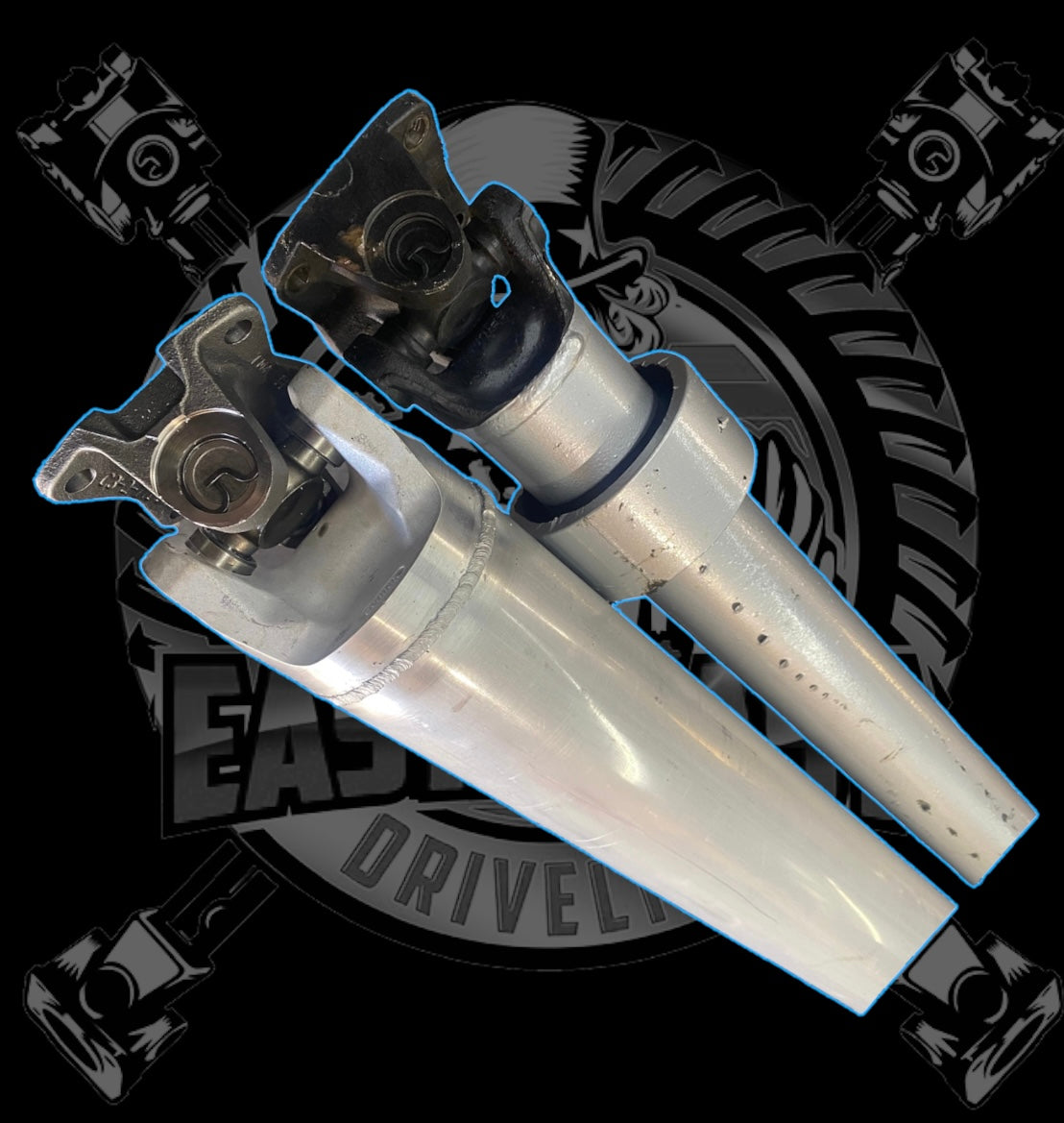

2011-2016 Ford F350 SUPER DUTY 6.2L & 6.7L Diesel AWD/4WD Automatic Custom HD 1 -Piece Aluminum Driveshaft. Fits Regular Cab, Single Rear Wheel with Chassis (60” cab to axle) Bed

Custom Made to Order 1 Piece Aluminum Slip Sleeve Driveshaft. 2-4 Days to Build.

Driveshaft made stock length unless we are told otherwise.

Email to: PB.EastCoastDrivelineInc@Gmail.com

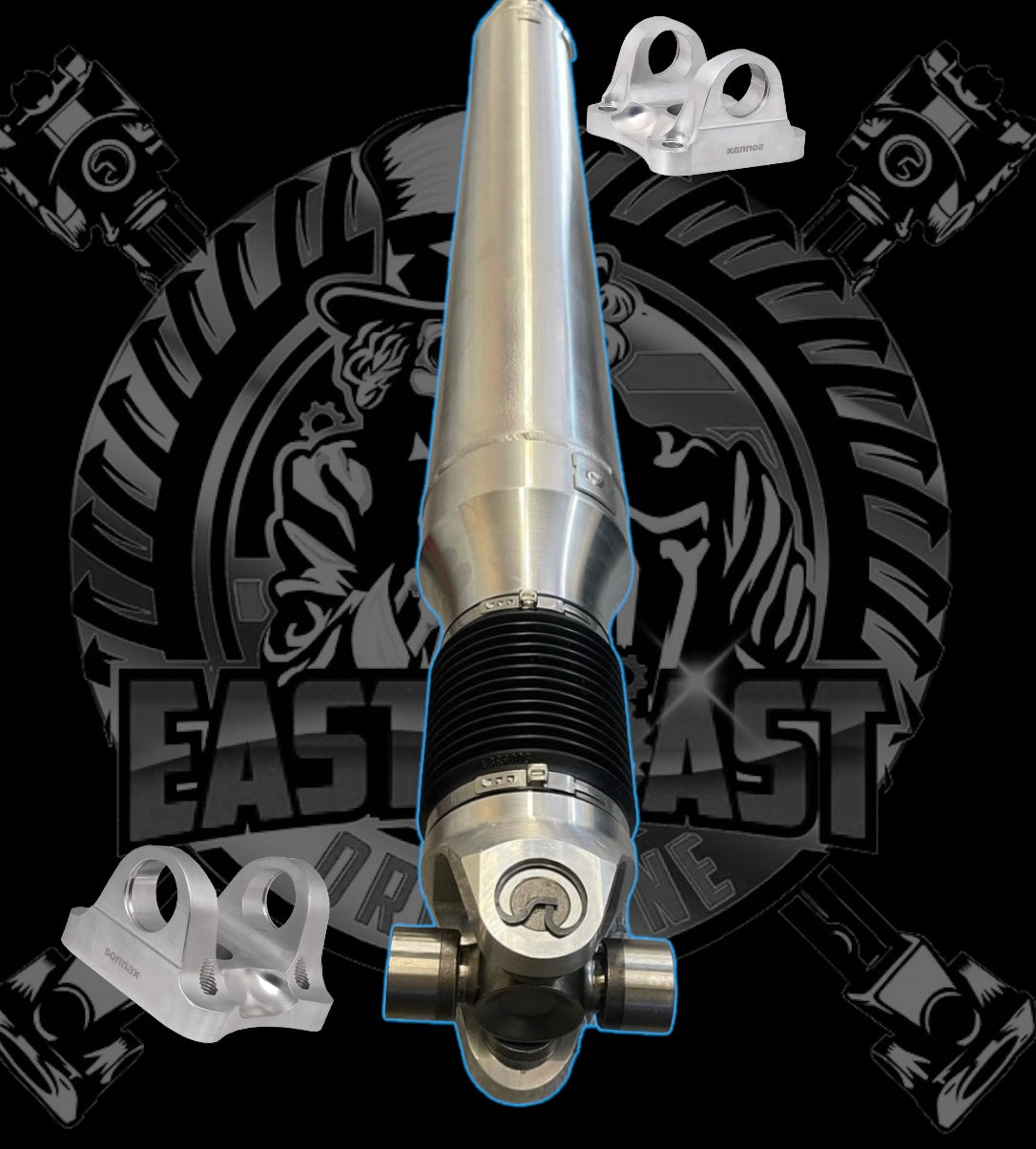

Driveshaft made with heavy duty Sonnax 4”x.125” or 5”x.125” Tubing and solid u-joints. Comes with new flanges and hardware for both ends.

Make sure new driveshaft has clearance away from hanger bearing bracket! REMOVE IF NEEDED! Any damage done to driveshaft by clearance issues voids all warranty.

FRONT FLANGE:

Pilot Type: F

Pilot Dia: 2.680

Bolt Cir Dia: 4.250

Bolt Hole Ct: 4

Bolt Hole Dia: 0.410

C/L to Face: 1.800

Swing Dia: 5.875

Joint Angle: 12.000

Sq Bolt Pattern / M12-1.75 threaded holes in flange

REAR FLANGE:

Pilot Type: F

Pilot Dia: 2.953

Bolt Cir Dia: 4.750

Bolt Hole Ct: 4

Bolt Hole Dia: 0.510

C/L to Face: 2.000

Swing Dia: 5.850

Sq Bolt Pattern / Hole in center
