2015-2016 Ford F250/F350 Superduty 6.7L Diesel Powerstroke AWD/4WD Rear 1 Piece HD 1480 Series Aluminum Driveshaft for Crew Cab 8’ Bed Dually or Single Rear Wheel

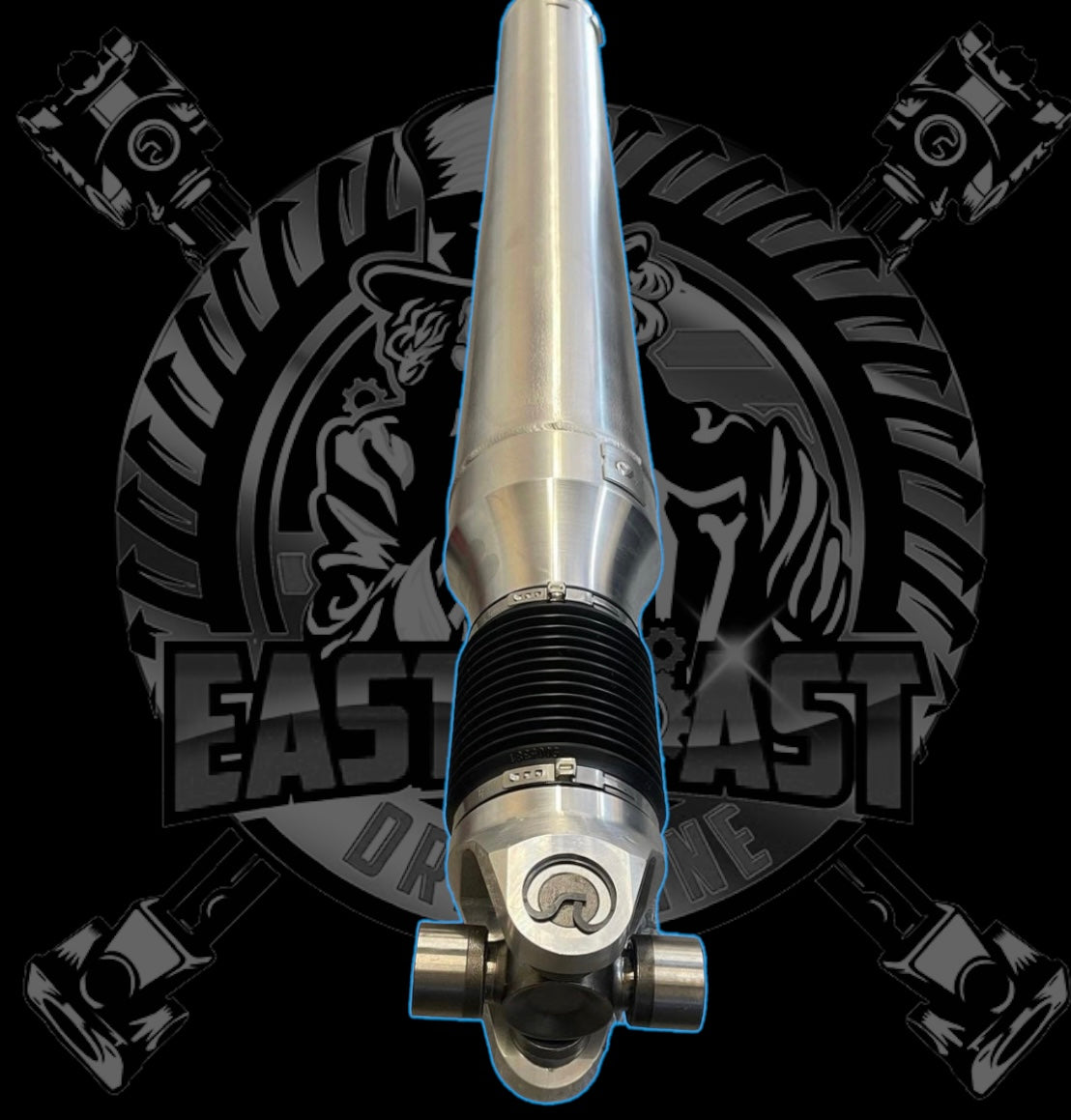

Custom Made to Order 1 Piece Aluminum Slip Sleeve Driveshaft. 2-7 Days to Build.

***If Truck is lifted Customer Must Provide Measurement! Need to measure truck from Flat of Flange on Transfer Case to Flat of Flange on Differential*** while truck is at ride height without the suspension hanging.
email: PB.EastCoastDrivelineInc@Gmail.com

***Stock Length for Dual Rear Wheel is 88 1/4” Flat to Flat at Ride Height***

***Stock Length for Single Rear Wheel is 89” Flat to Flat at Ride Height***

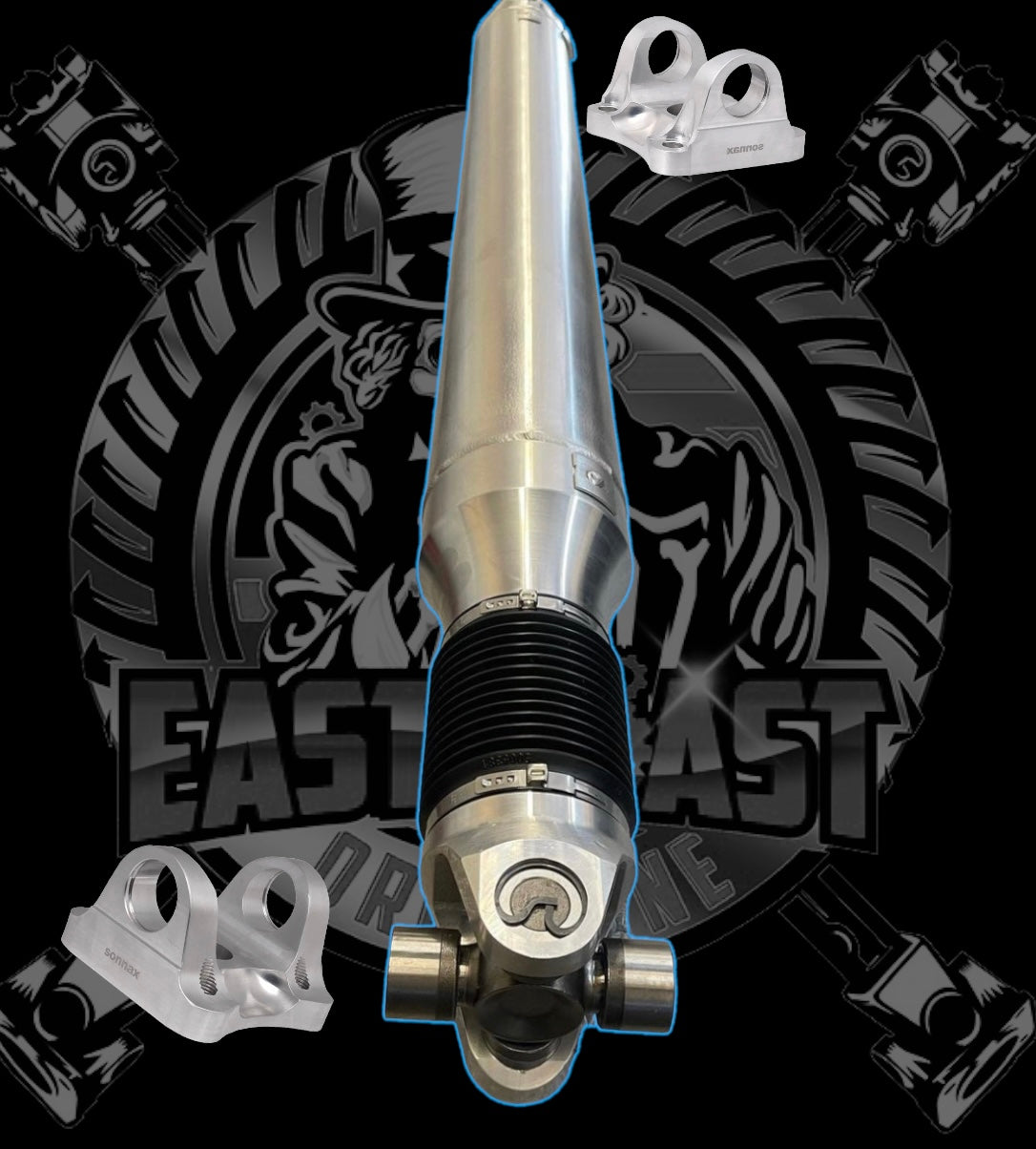

Driveshaft made with heavy duty Sonnax 5”x.125” Tubing and solid u-joints. Comes with new flanges.

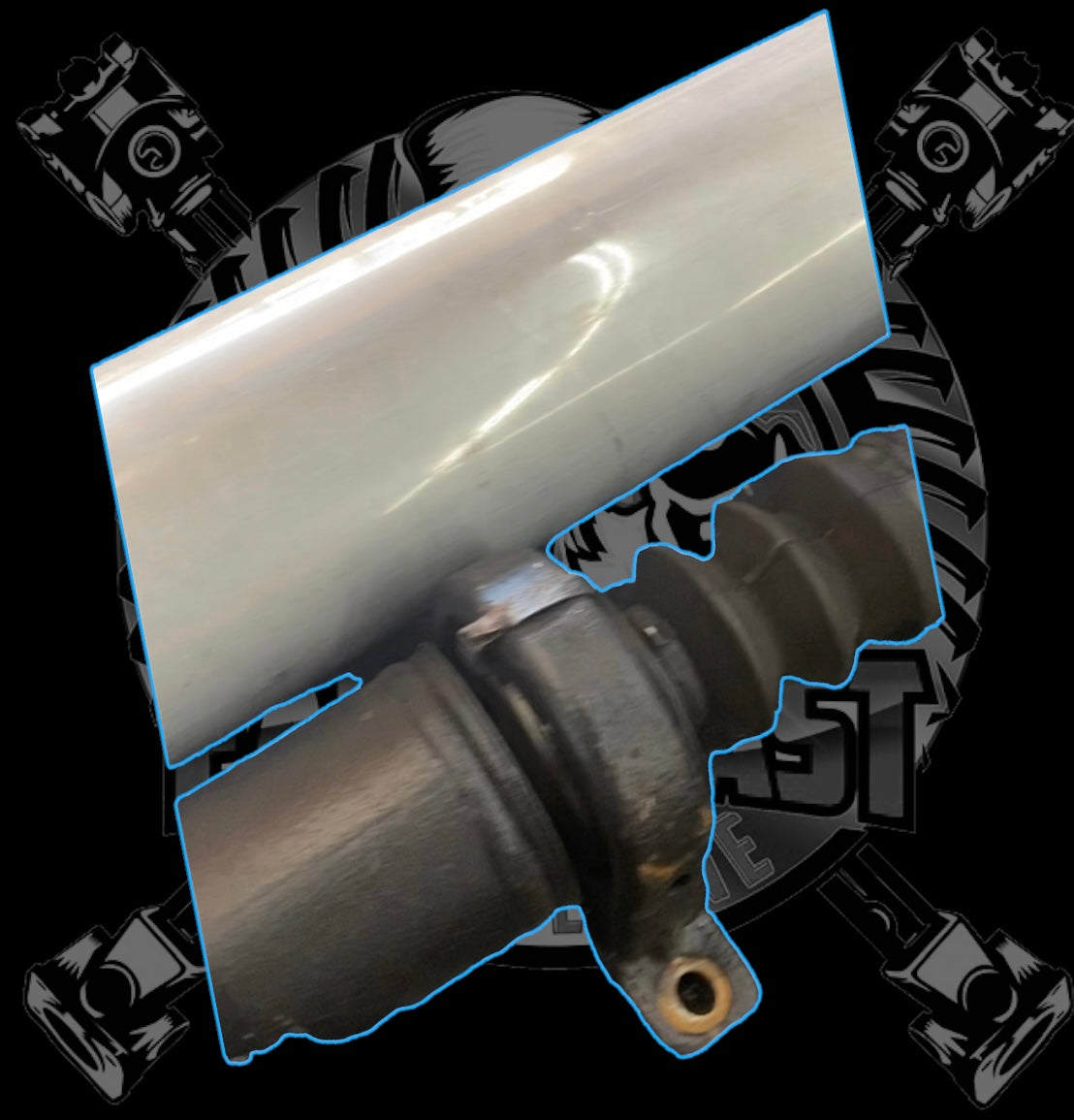

Driveshaft hanger bearing bracket on truck has to be removed.

FRONT FLANGE: Dually and Single

Pilot Type: F

Pilot Dia: 2.680

Bolt Cir Dia: 4.250

Bolt Hole Ct: 4

Bolt Hole Dia: 0.410

C/L to Face: 1.800

Swing Dia: 5.875

Joint Angle: 12.000

Sq Bolt Pattern / M12-1.75 threaded holes in flange

REAR FLANGE: Dually and Single

Pilot Type: F

Pilot Dia: 2.953

Bolt Cir Dia: 4.750

Bolt Hole Ct: 4

Bolt Hole Dia: 0.510

C/L to Face: 2.000

Swing Dia: 5.850

Sq Bolt Pattern / Hole in center
