2015-2017 Ford F150 3.5L Turbo 2WD SuperCrew and SuperCab 6.5’Bed 145”WB HD 5" 1350 Series 1 Piece Aluminum Driveshaft

Made to Order 2-5 Days Lead Time

IF TRUCK IS LIFTED OR LOWERED WE SUGGEST TAKING A NEW MEASUREMENT FROM FLAT OF TRANSMISSION TO FLAT OF DIFFERENTIAL WHILE IN RIDING POSITION. Email measurements to: PB.EastCoastDrivelineInc@Gmail.com

Product Description:

Stock Length 92.75” Flat of Transmission to Flat of Differential

We build each 1350 series driveshaft with either HD Carbon Fiber or 5" x .125 wall Kaiser KDS4-T8 aluminum tubing*, aluminum yoke shaft and spline sleeve assembly, weld yoke, and flange yokes, all components from Sonnax*, upgraded 1350 series non greaseable performance -joints from NEAPCO. Factory hardware is reused on both flanges. All driveshafts are high speed balanced for performance application.

**Our 1350 series driveshaft DOES NOT require additional adapters. We build each driveshaft with aluminum adapter flanges from Sonnax. Our driveshaft will bolt directly into your existing OEM flanges on your transmission and differential. This eliminates the need for any additional parts and hardware.**

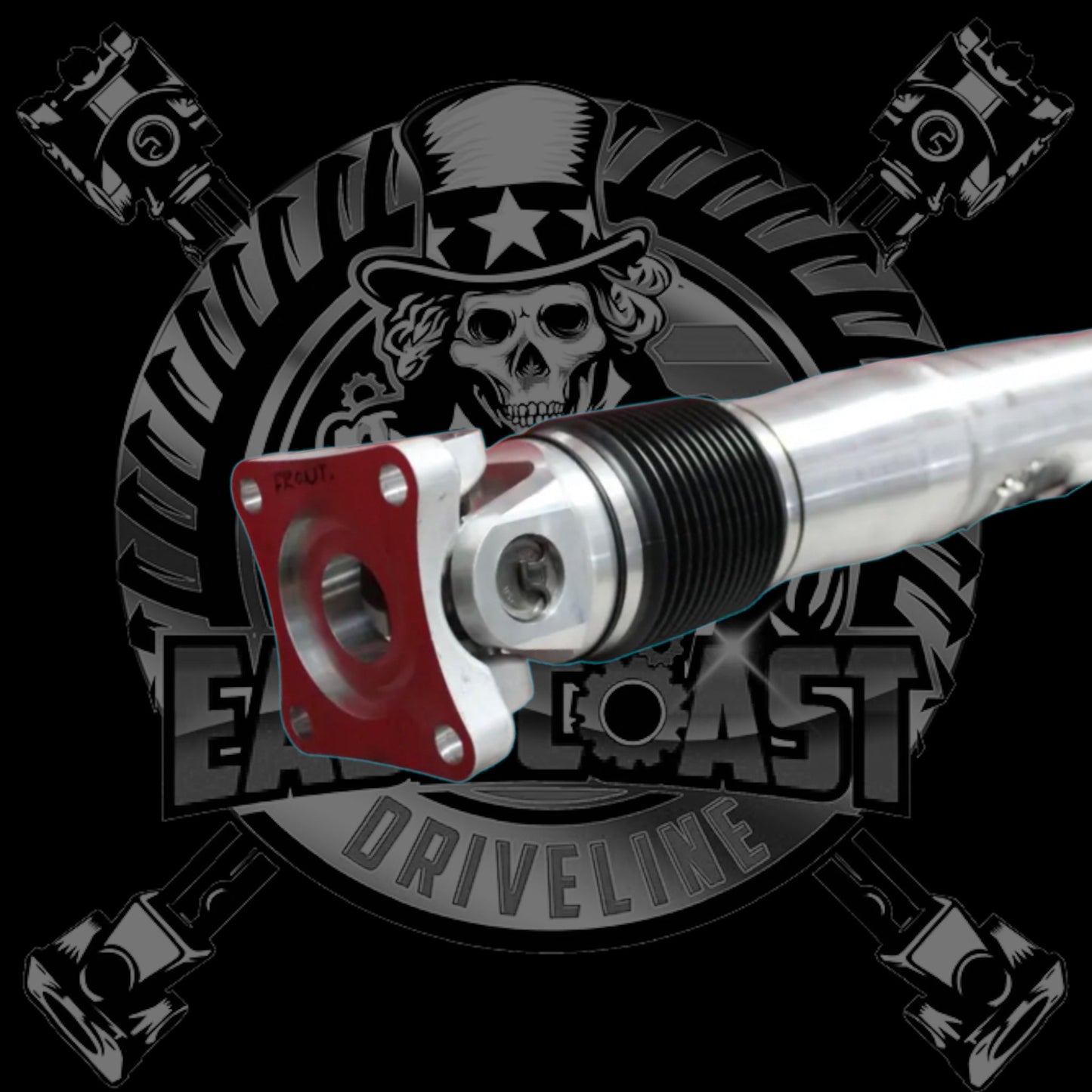

FRONT FLANGE

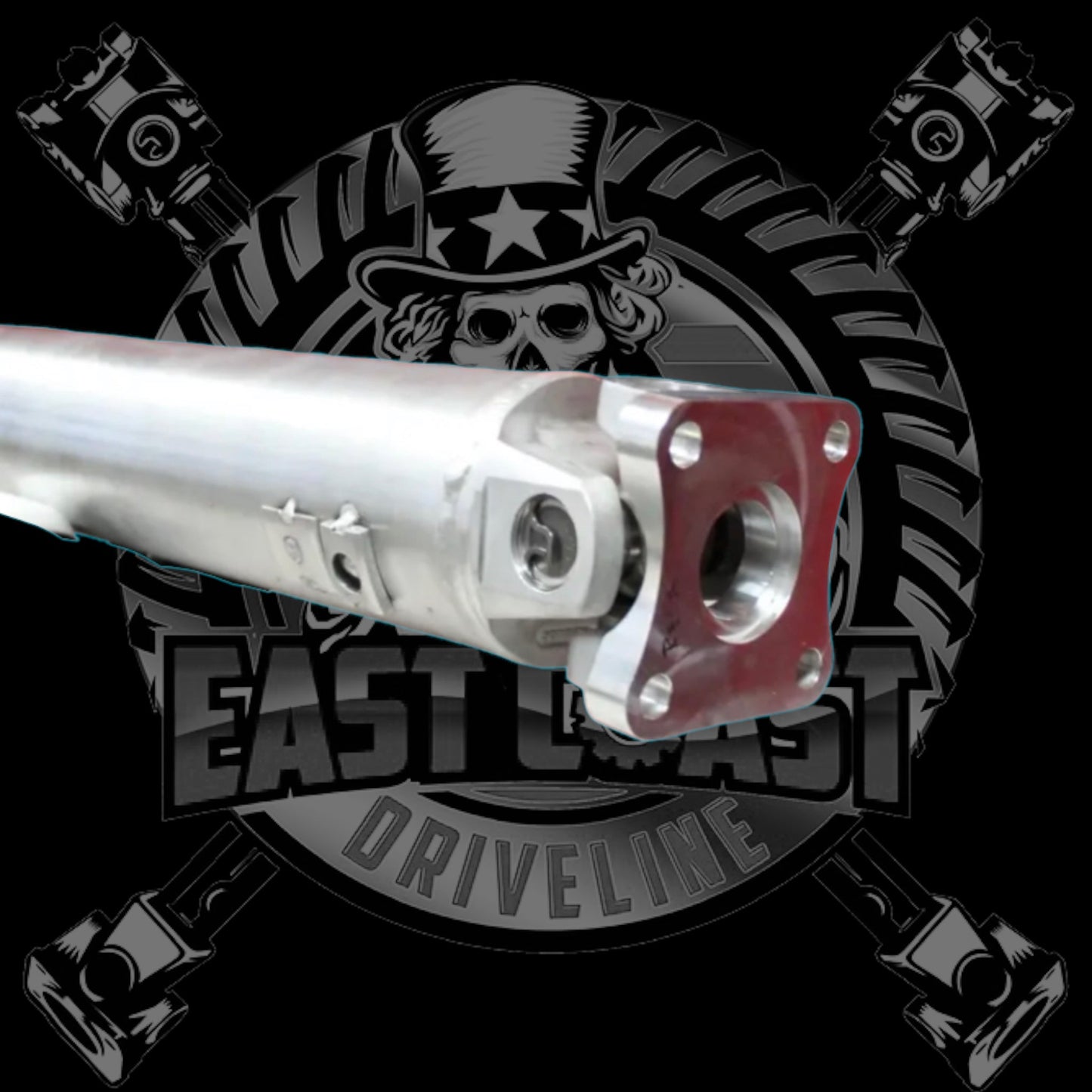

REAR FLANGE
