2015+ Ford F150 5.0L 2WD Regular Cab Shortbed 4" 1350 Series Aluminum or Carbon Fiber Slip Shaft
2015+ Ford F150 5.0L 2WD Regular Cab Shortbed 4" 1350 Series Aluminum or Carbon Fiber Slip Shaft
Made to Order 1 Week Lead Time
Product Description

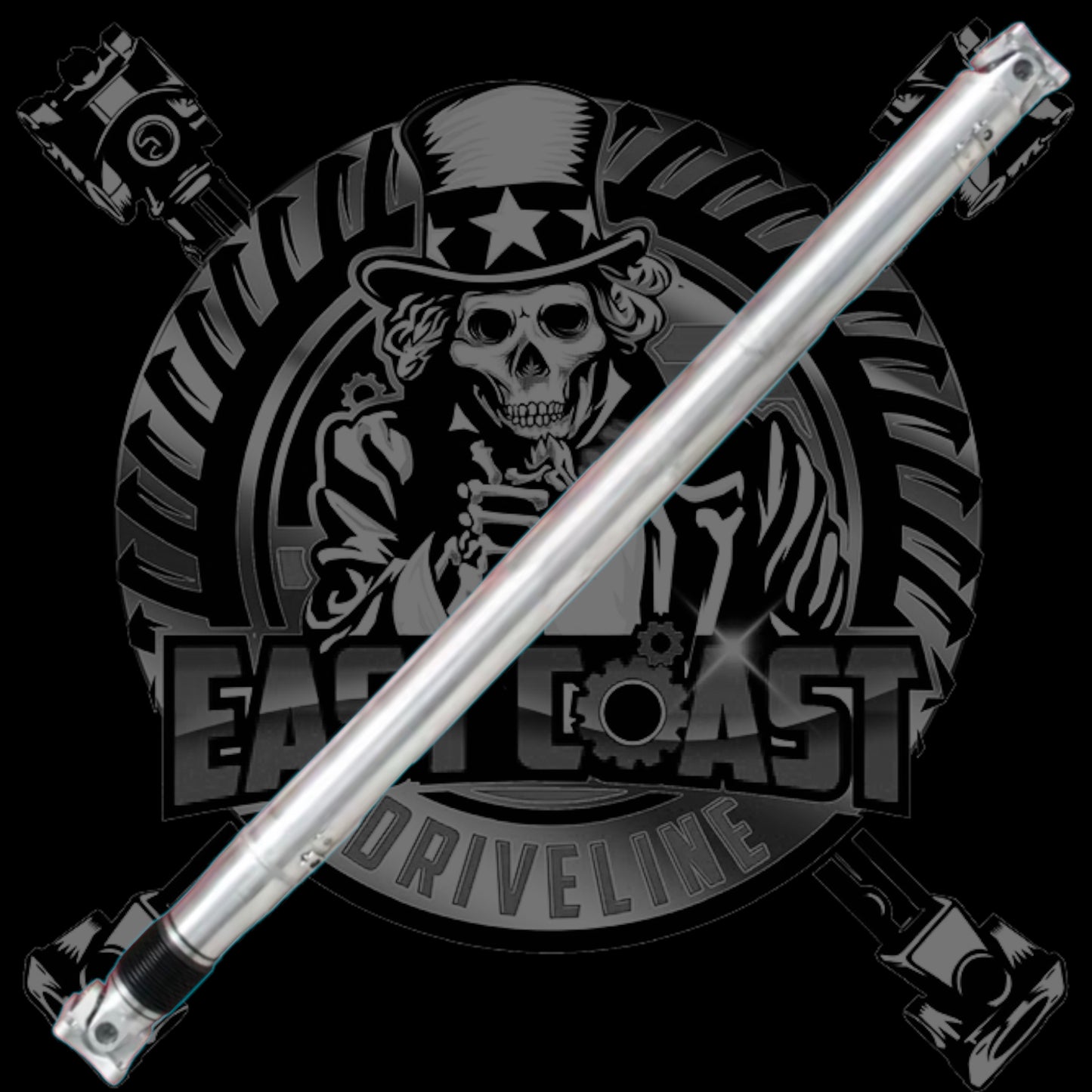

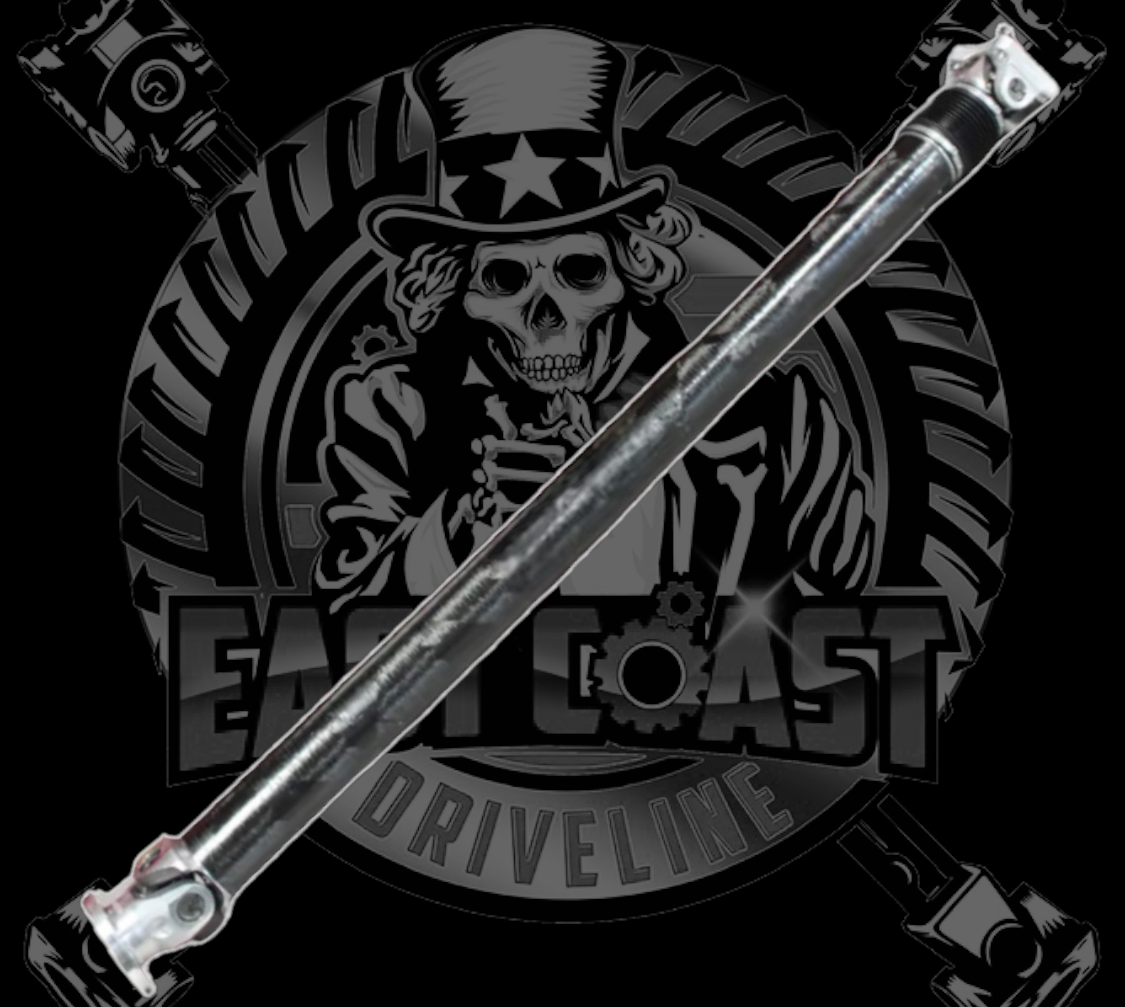

Ford F150 5.0L 2WD Reg Cab Shortbed 4" 1350 Series Aluminum Slip Shaft
Application:
2015 - up: Automatic F150 5.0L Regular Cab Shortbed 2WD
We build each 1350 series driveshaft with either HD Carbon Fiber or 4" x .125 wall Kaiser KDS4-T8 aluminum tubing*, aluminum yoke shaft and spline sleeve assembly, weld yoke, and flange yokes, all components from Sonnax*, upgraded 1350 series non greaseable performance -joints from NEAPCO. Factory hardware is reused on both flanges. All driveshafts are high speed balanced for performance application.
**Our 1350 series driveshaft DOES NOT require additional adapters. We build each driveshaft with aluminum adapter flanges from Sonnax. Our driveshaft will bolt directly into your existing OEM flanges on your transmission and differential. This eliminates the need for any additional parts and hardware.**

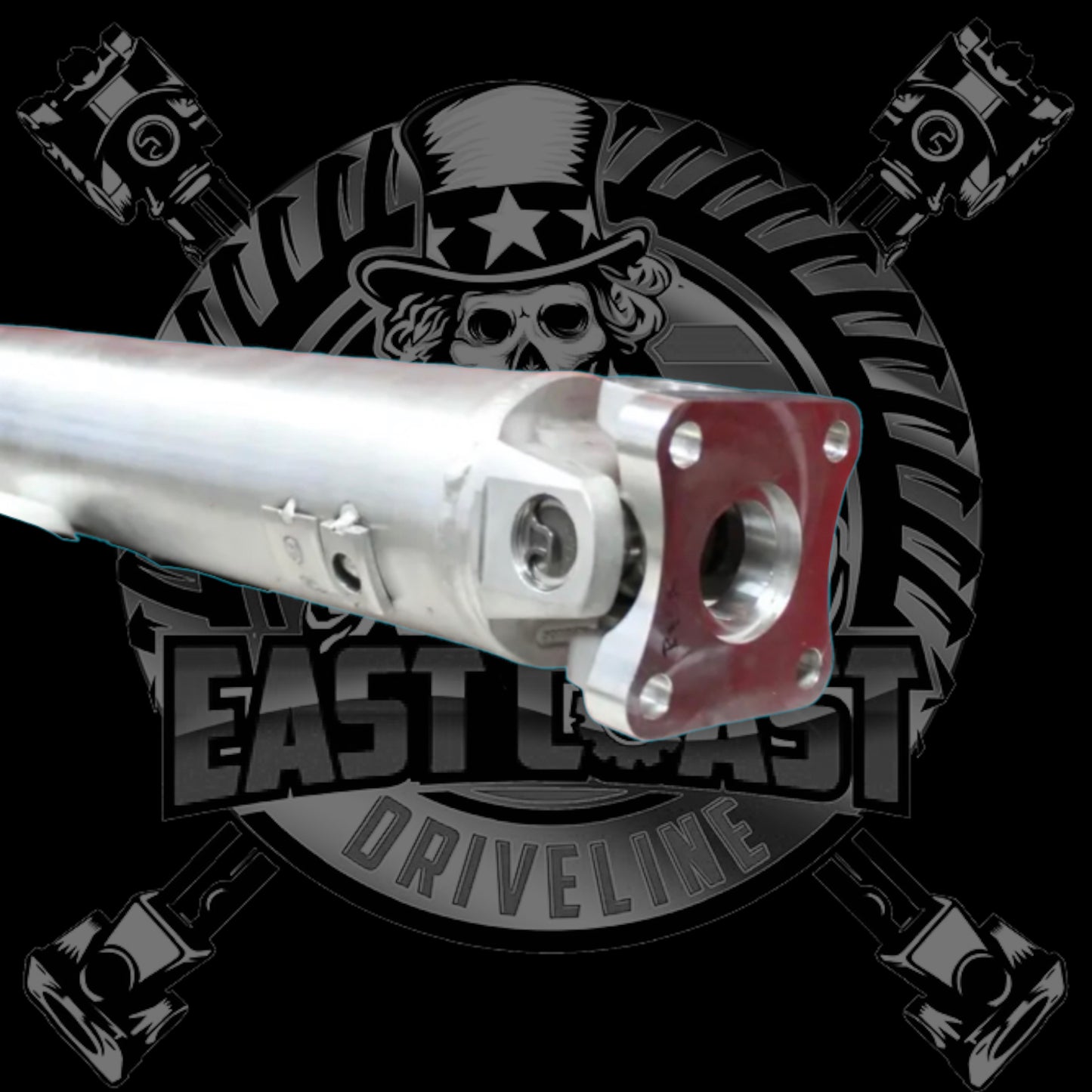

REAR FLANGE
Series | 1350 |
Flange Or Swing Dia. In. (A) | 5.250 |
Bolt Circle Dia. In. (B) | 4.250 |
Bolt Hole Dia. In (B) | .500 - DRILLED |
Number Of Bolt Holes | 4 |
Pilot Dia. M=Male F=Female (C) | 2.000 - FEMALE |
Material | 2024 Aluminum |

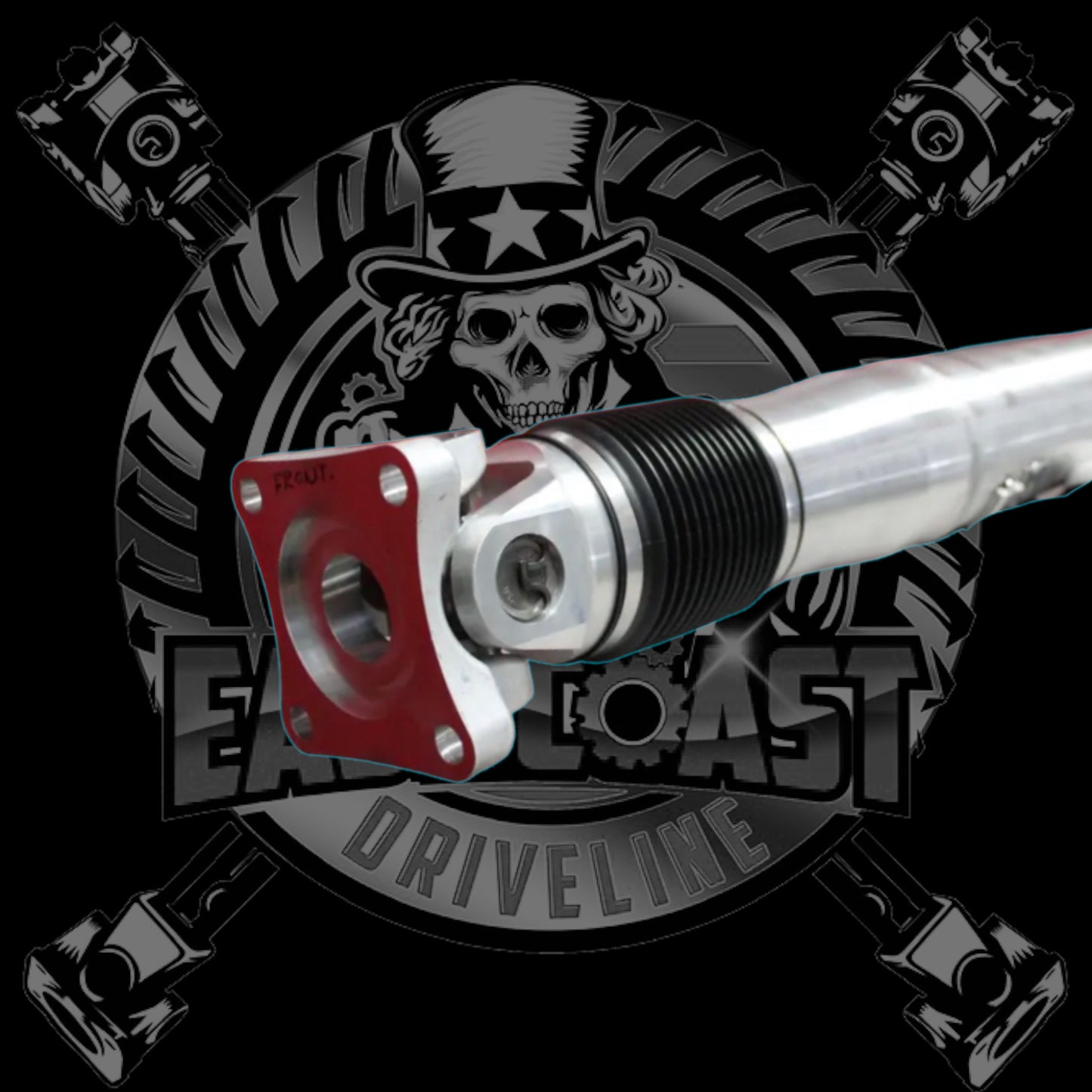

FRONT FLANGE
Series | 1350 |
Flange Or Swing Dia. In. (A) | 5.750 |
Bolt Circle Dia. In. (B) | 4.750 |
Bolt Hole Dia. In (B) | .510 - DRILLED |
Number Of Bolt Holes | 4 |
Pilot Dia. M=Male F=Female (C) | 2.953 - FEMALE |
Material |
2024 Aluminum |
