2018-2023 Toyota Tacoma AWD/4WD Rear 2 Piece Upgraded Driveshaft with Double Cardan on Rear Half going to Differential. Or 1 Piece HD Aluminum
2018-2023 Toyota Tacoma AWD/4WD Rear 2 Piece Upgraded Driveshaft with Double Cardan on Rear Half going to Differential. Or 1 Piece HD Aluminum
*Made-to-Order* 7-10 Days Build time plus shipping.
Complete new Rear 2 piece Driveshaft assembly made with heavy duty parts and solid u-joints.
(Measurements must be provided by customer. See instructions below on how to measure, or look at picture, only need 2 measurements)

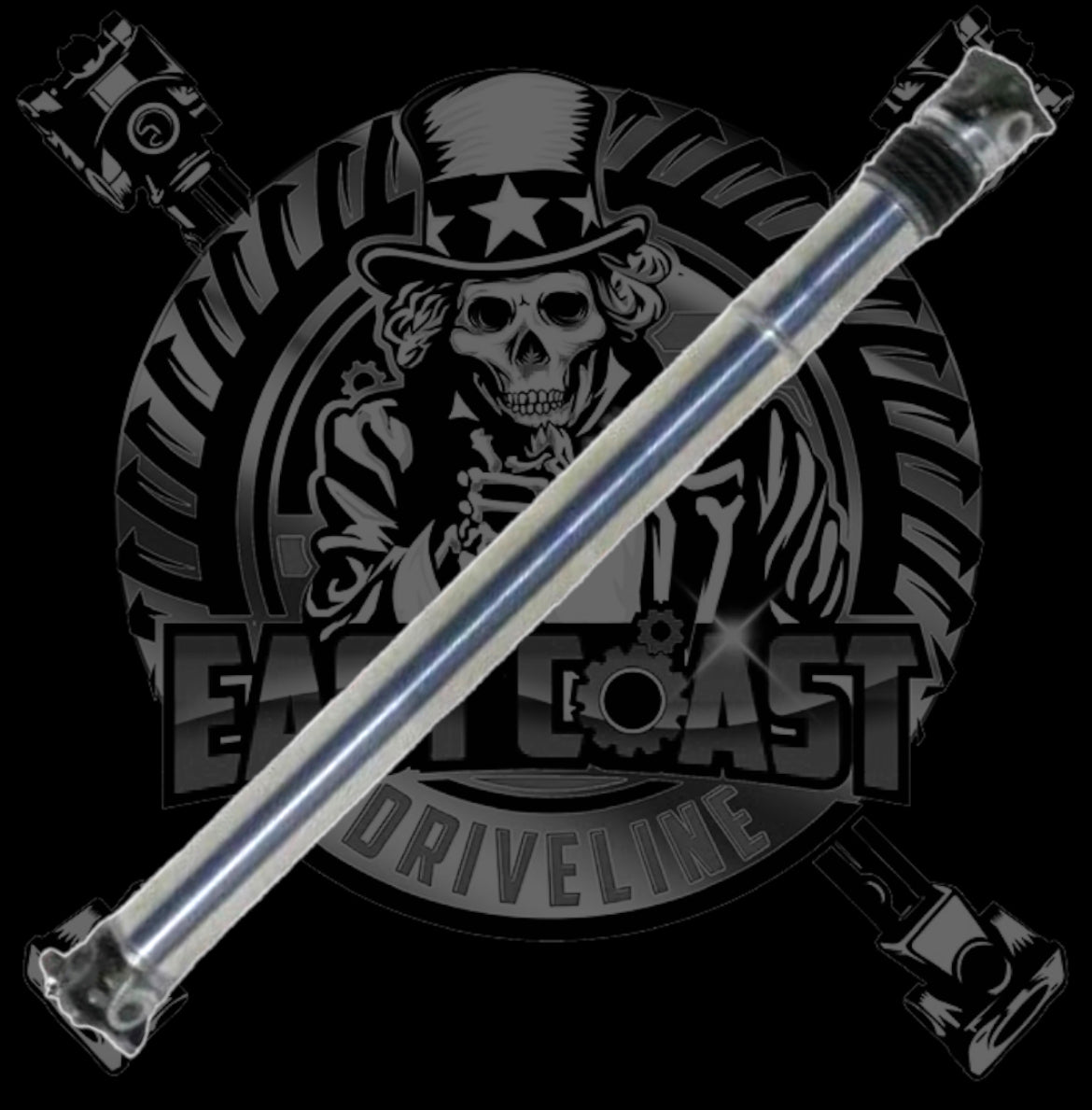

HD Aluminum 1 Piece Driveshaft made with either 4”x.125” Tubing or 5”x.125” Tubing, Greaseable Neapco U-Joints, and Sonnax HD Slip Sleeve.
FOR 2 PIECE DRIVESHAFT;
1. FLAT OF TRANSFER CASE FLANGE TO FLAT OF DIFFERENTIAL FLANGE WHILE TRUCK IS AT RIDE HEIGHT
2. FLAT OF FRONT T-CASE FLANGE TO CENTER OF HANGER BEARING BRACKET BOLT HOLES.
FOR 1 PIECE DRIVESHAFT;
1. FLAT OF TRANSFER CASE FLANGE TO FLAT OF DIFFERENTIAL FLANGE WHILE TRUCK IS AT RIDE HEIGHT
******MEASUREMENTS WHILE TRUCK IS AT RIDING HEIGHT! MEASURE THE TRUCK! NOT THE ORIGINAL DRIVESHAFT*****
SEND ALL MEASUREMENTS WITH ORDER # TO PB.EastCoastDrivelineInc@Gmail.com.

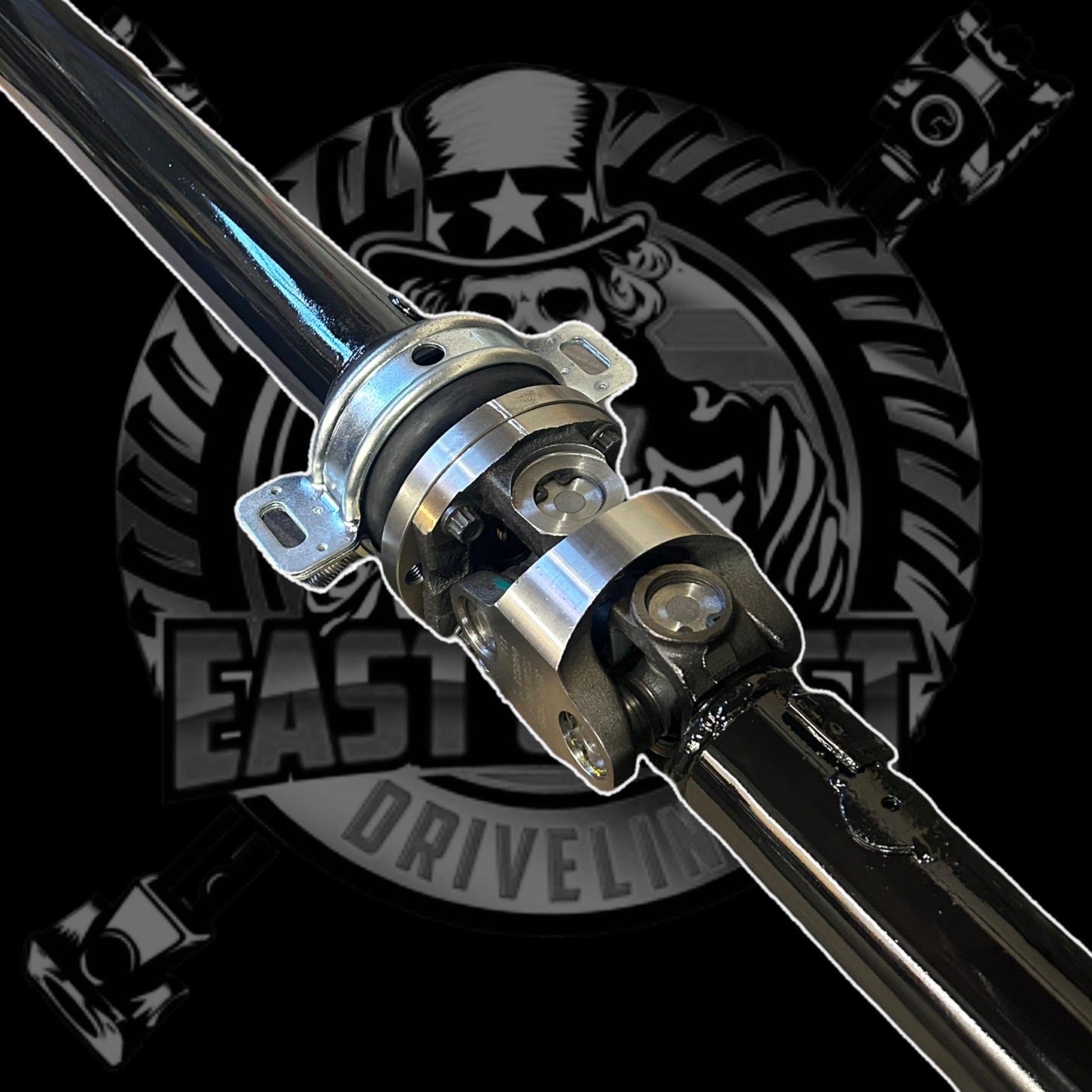

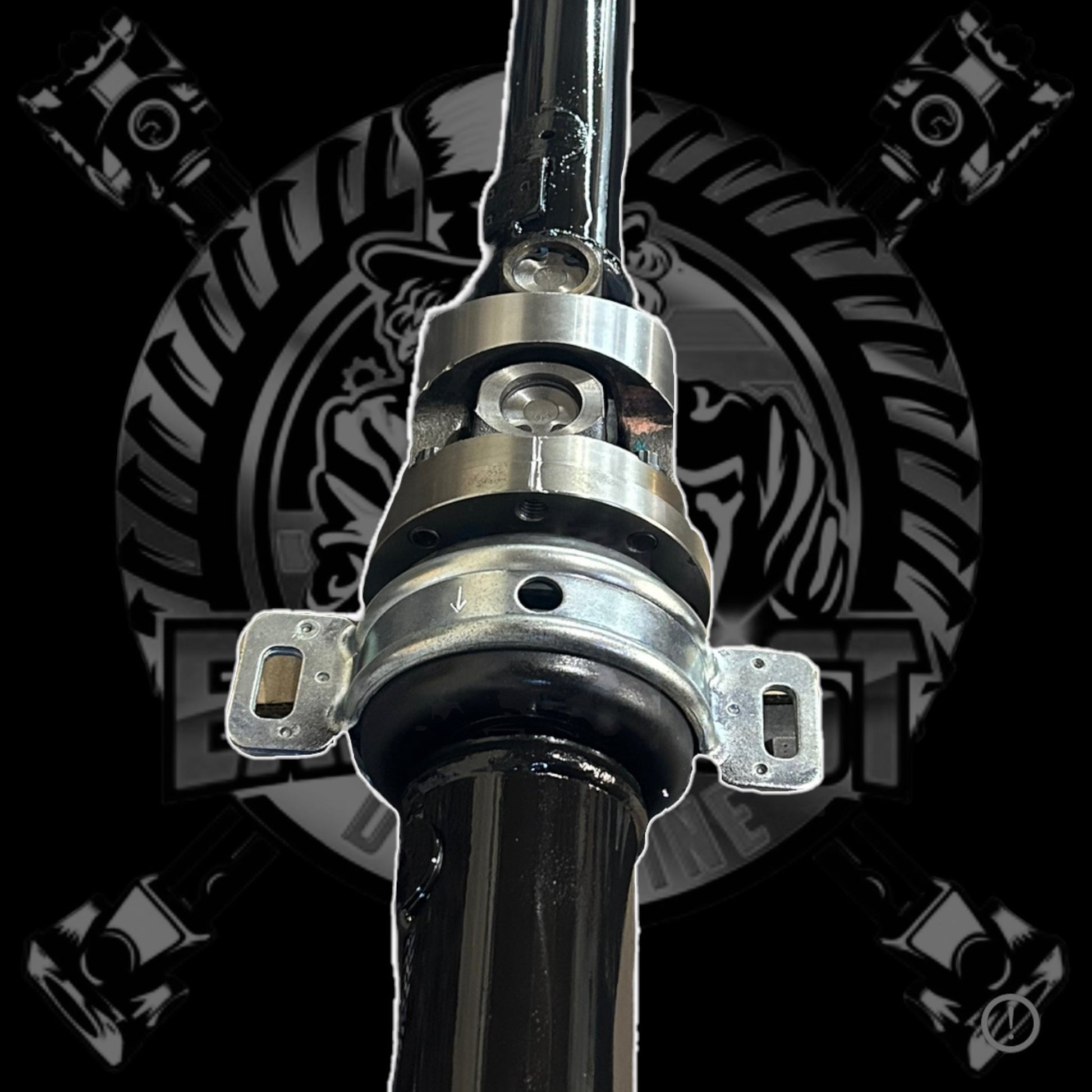

Front Half is 1330 Series with Toyota Flange Yoke, 3”x.083” Tubing (Can be made with thicker wall tubing upon Request ) and Toyota Hanger Bearing
Rear Half is made with a Heavy Duty 1350 Double Cardan for increased angle on lifted trucks, 2.5”x.095” Tubing (Can be made with thicker wall tubing upon Request), long travel 1330 series slip yoke with Toyota Flange Yoke for the rear differential.
