*Made-to-Order* 2-5 Days Build time plus shipping.

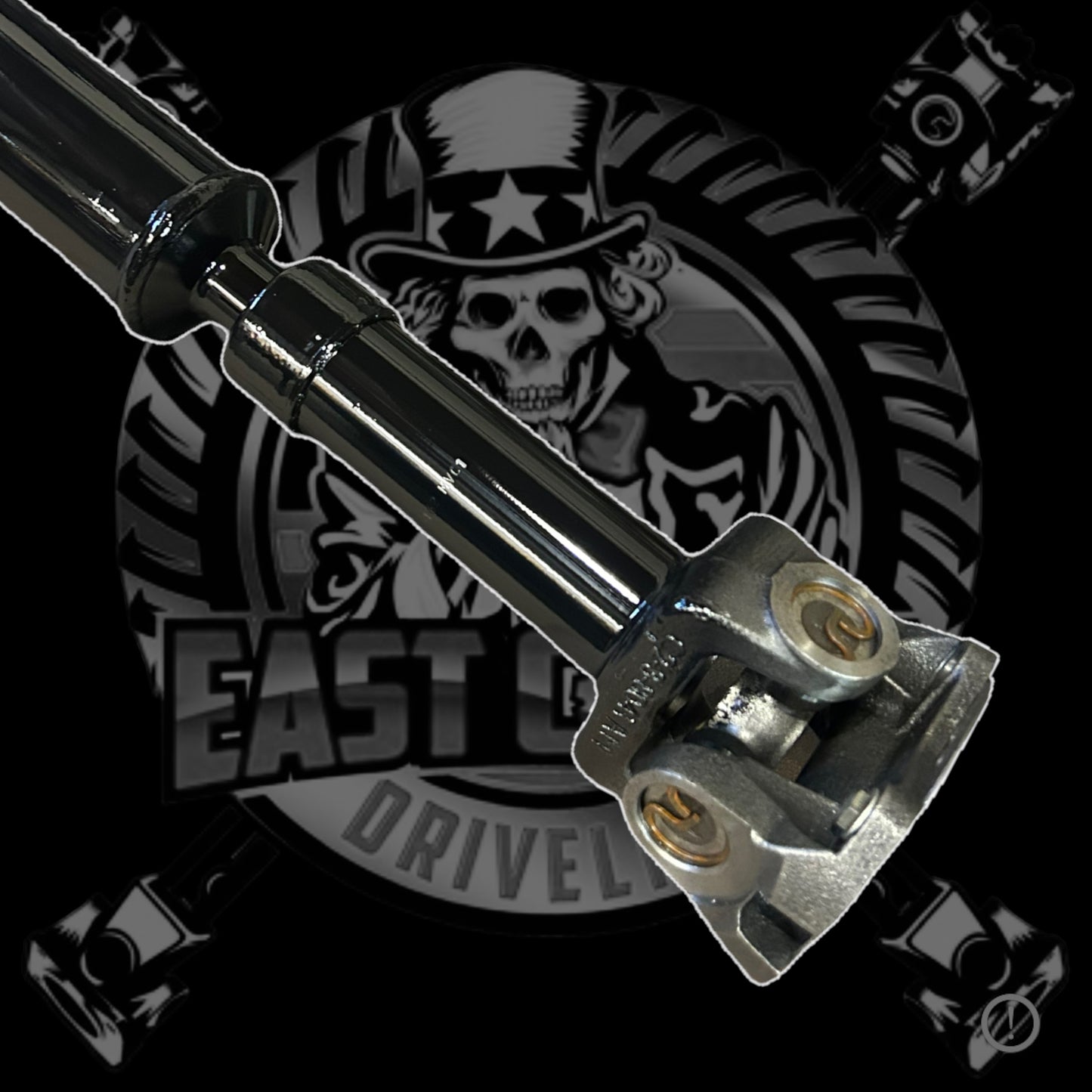

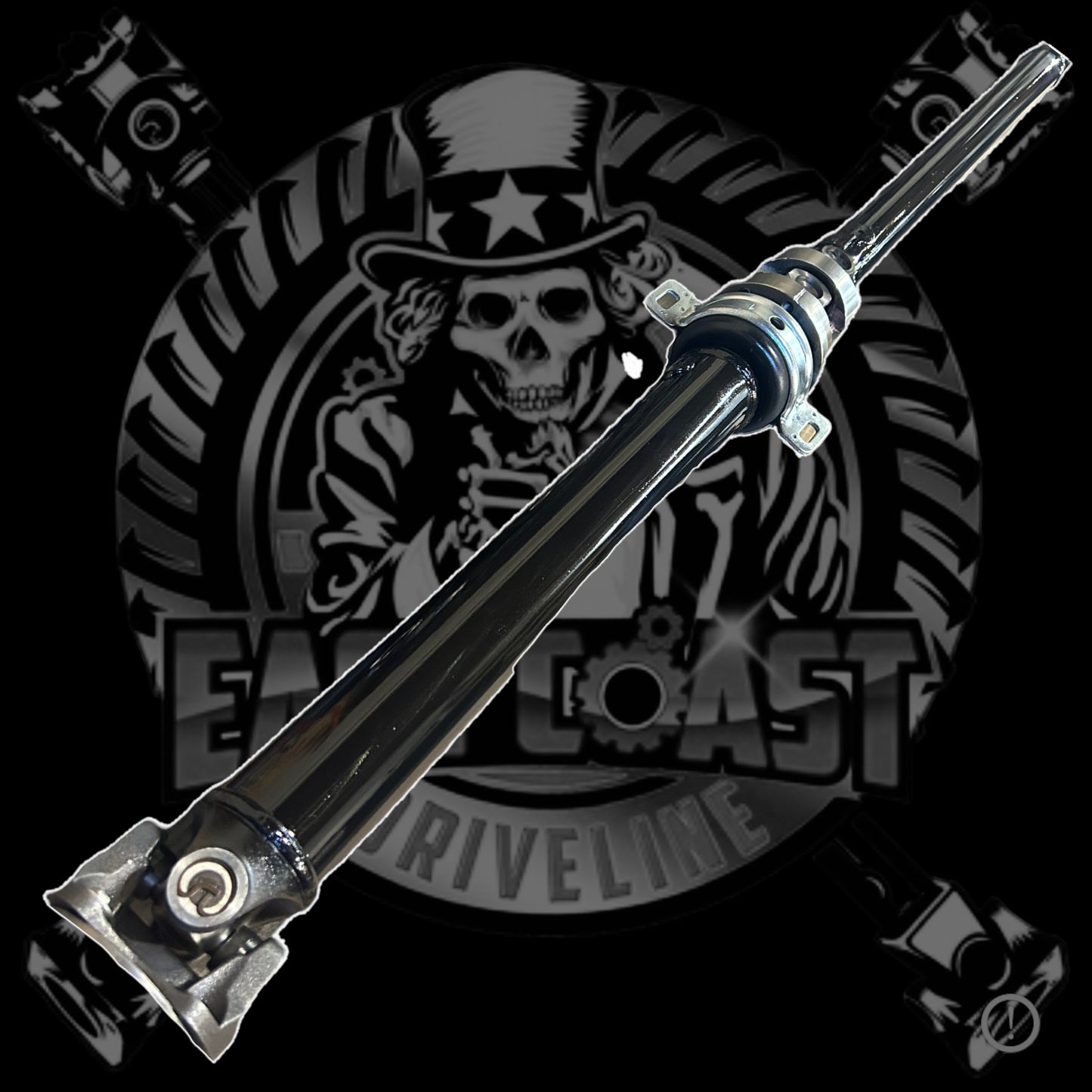

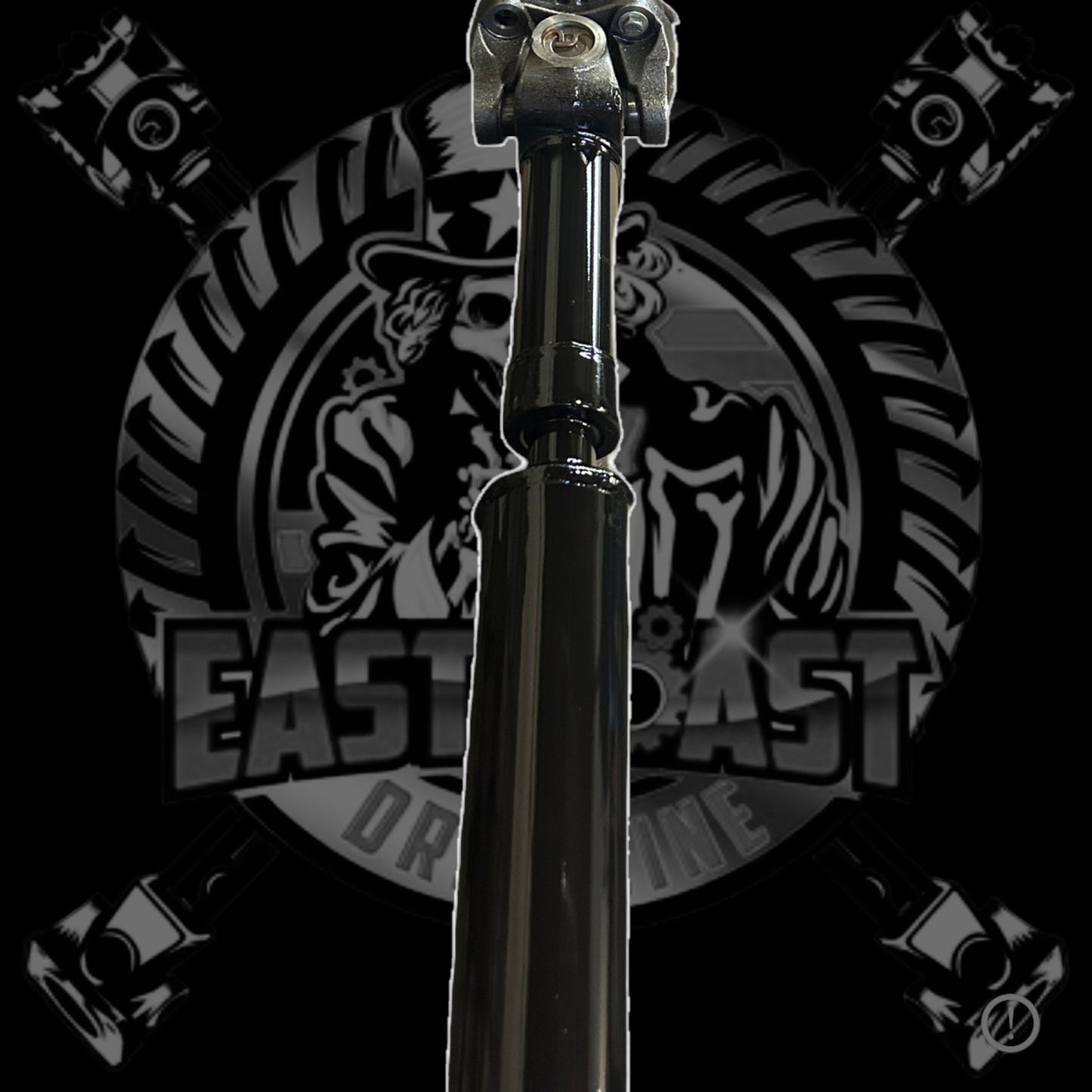

Complete new Rear 2 piece Driveshaft assembly made with heavy duty parts and solid u-joints.

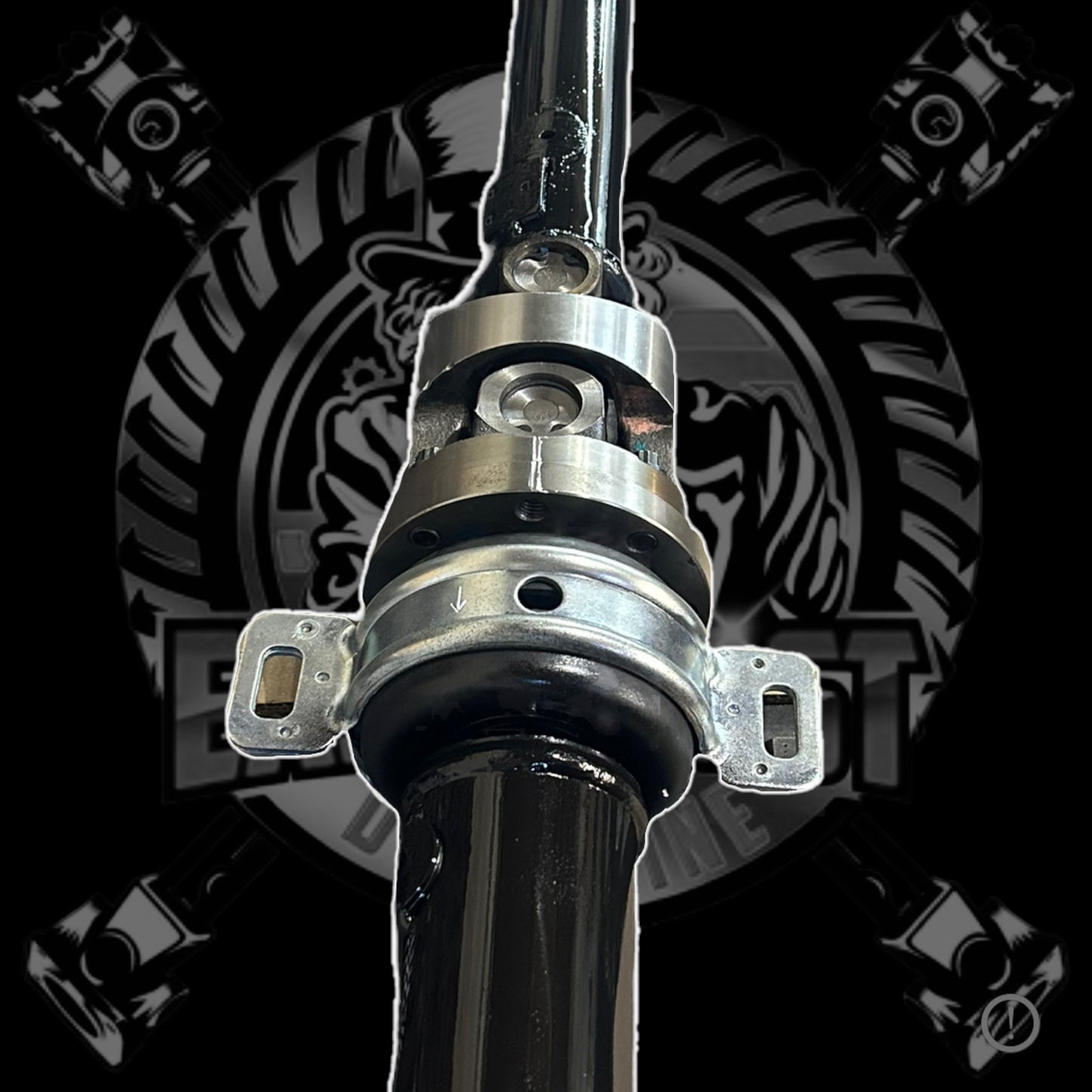

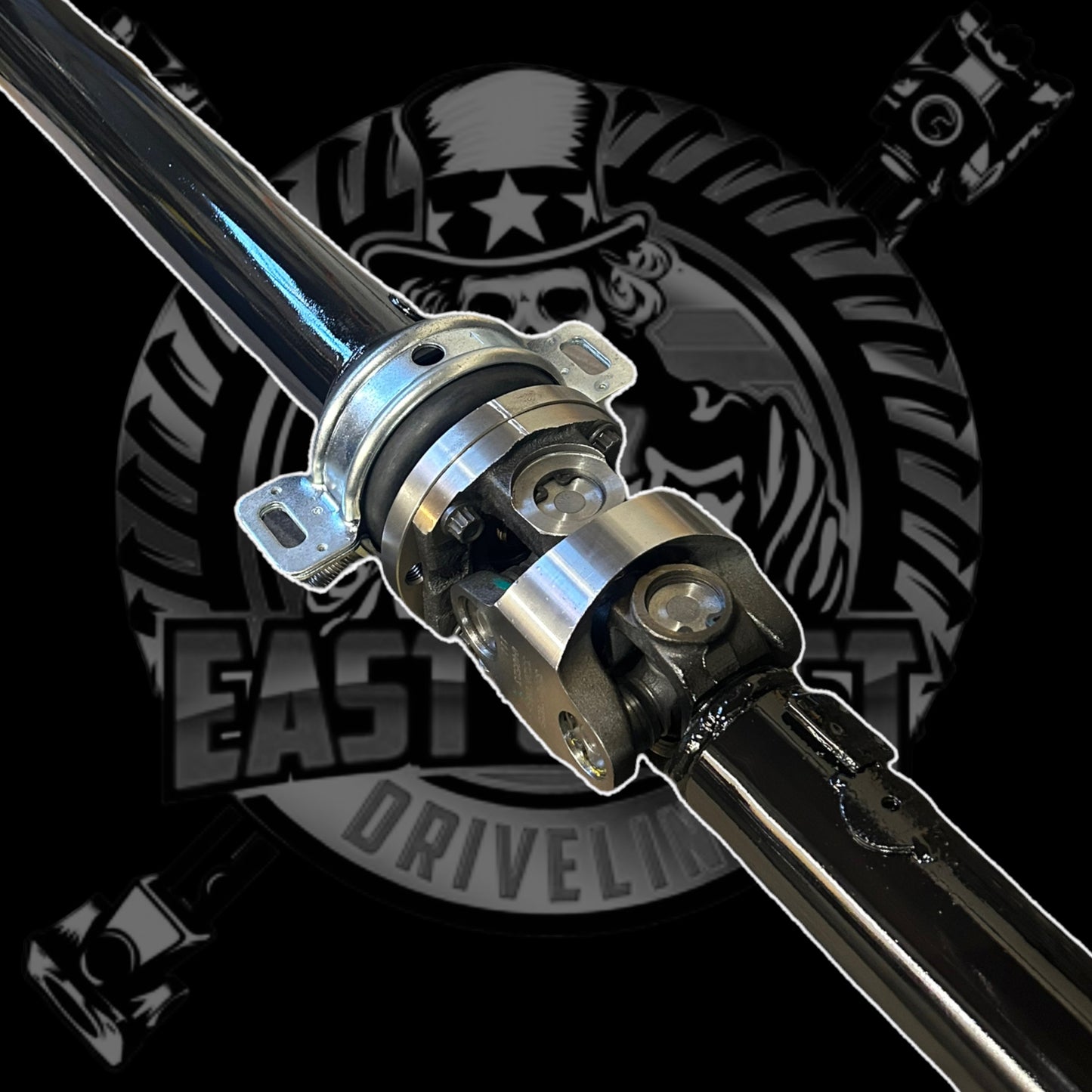

Front Half is 1330 Series with Toyota Flange Yoke, 3”x.083” Tubing (Can be made with thicker wall tubing upon Request ) and Toyota Hanger Bearing
Rear Half is made with a Heavy Duty 1350 Double Cardan for increased angle on lifted trucks, 2.5”x.095” Tubing (Can be made with thicker wall tubing upon Request), long travel 1330 series slip yoke with Toyota Flange Yoke for the rear differential.
DRIVESHAFT ASSEMBLY CAN BE MADE CUSTOM LENGTH FOR NO EXTRA CHARGE!
**Can also be made a 1-Piece Aluminum Driveshaft upon request. Depending on the length it would be made in either 4” or 5” Diameter Tubing with .125” Thick wall tubing. Must provide measurement from flat of transfer case to flat of differential flange with truck in riding position **
********IF TRUCK IS LIFTER YOU MUST TAKE 2 MEASUREMENTS WHILE TRUCK IS AT RIDING HEIGHT! MEASURE THE TRUCK! NOT THE ORIGINAL DRIVESHAFT******
1. FLAT OF FRONT T-CASE FLANGE TO CENTER OF HANGER BEARING BRACKET BOLT HOLES.
2. CENTER OF HANGER BEARING BRACKET BOLT HOLES TO FLAT OF REAR DIFFERENTIAL FLANGE.
SEND ALL MEASUREMENTS WITH ORDER # TO PB.EastCoastDrivelineInc@Gmail.com
