East Coast Driveline

2017-2018 Ford F250 Superduty 6.2L V8-Gas AWD/4WD Rear HD Upgraded 1480 Series Aluminum Driveshaft. Replaces OEM HC3Z4602F

2017-2018 Ford F250 Superduty 6.2L V8-Gas AWD/4WD Rear HD Upgraded 1480 Series Aluminum Driveshaft. Replaces OEM HC3Z4602F

$1,395.00 USD
$1,495.00 USD $1,395.00 USD
Sale Sold out
Driveshaft Options

2017-2018 Ford F250 Superduty 6.2L V8-Gas AWD/4WD Rear HD Upgraded 1480 Series Aluminum Driveshaft. Replaces OEM HC3Z4602F



Drive Shaft. Prop Shaft - Rear - 6.2L V8-Gas


142"/3607MM Wheelbase. 4WD (Part Time Drive).
Part #: HC3Z4602F
Usage: 07/11/2016 - 01/18/2018, F-Series Super Duty, 6.2L 16V OHC NA V8 Gas, LHD 4WD (Part Time Drive), 142"/3607MM Wheelbase, Ford 250 Series, With Single Rear Wheels

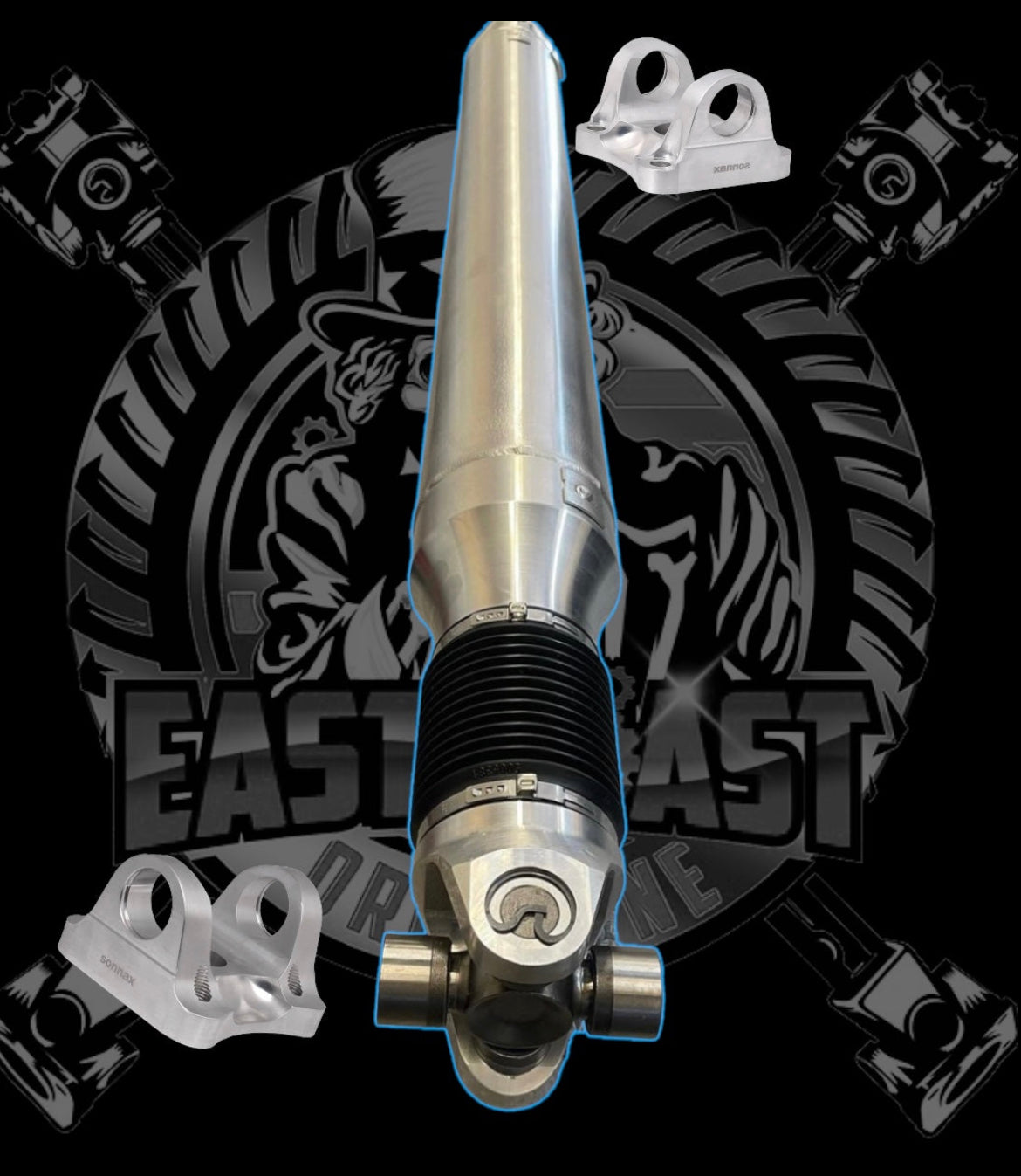

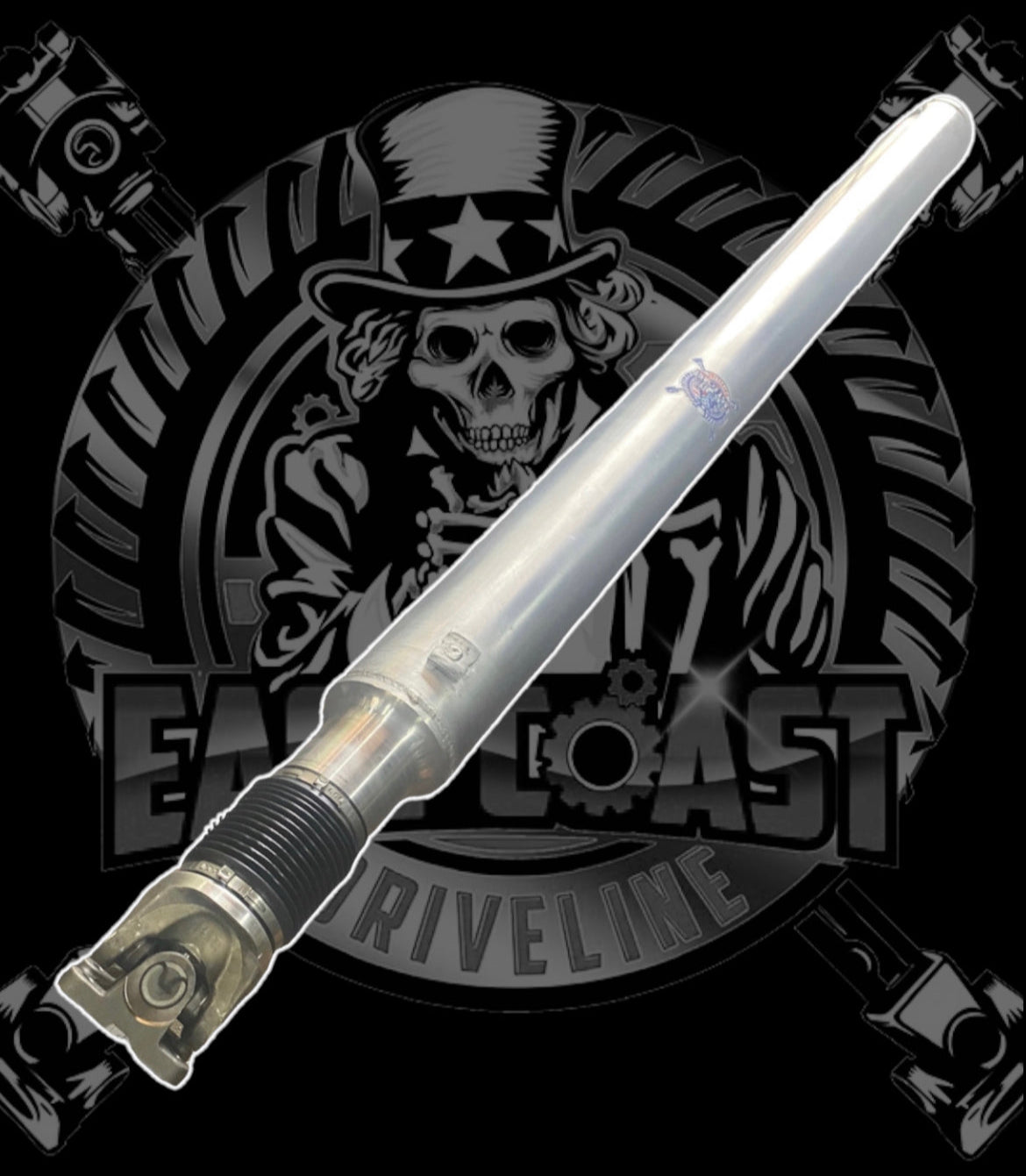

Made with either 4”x.125” Aluminum or 5x.125” Aluminum 1480 Series. Choice of Spicer Cast Iron Flange Yokes or upgraded Sonnax Billet Aluminum Flange Yokes. STOCK SERIES IS 1410 SERIES

EMAIL PB.EASTCOASTDRIVELINEINC@Gmail.com with measurements from Flat of Transfer Case to Flat of Differential while truck is at ride height!

Both front and rear flange yokes are the same. Comes with new hardware

SERIES:

1480

PILOT TYPE:

F

PILOT DIA:

2.953

BOLT CIR DIA:

4.750

BOLT HOLE CT:

4

BOLT HOLE DIA:

0.510
