2017-2019 Ford F250/F350 Superduty AWD/4WD HD Aluminum Rear Driveshaft FORD OEM: HC34-4602
2017-2019 Ford F250/F350 Superduty AWD/4WD HD Aluminum Rear Driveshaft FORD OEM: HC34-4602
FORD OEM: HC34-4602-FHB
Spicer Part 10063787FHB

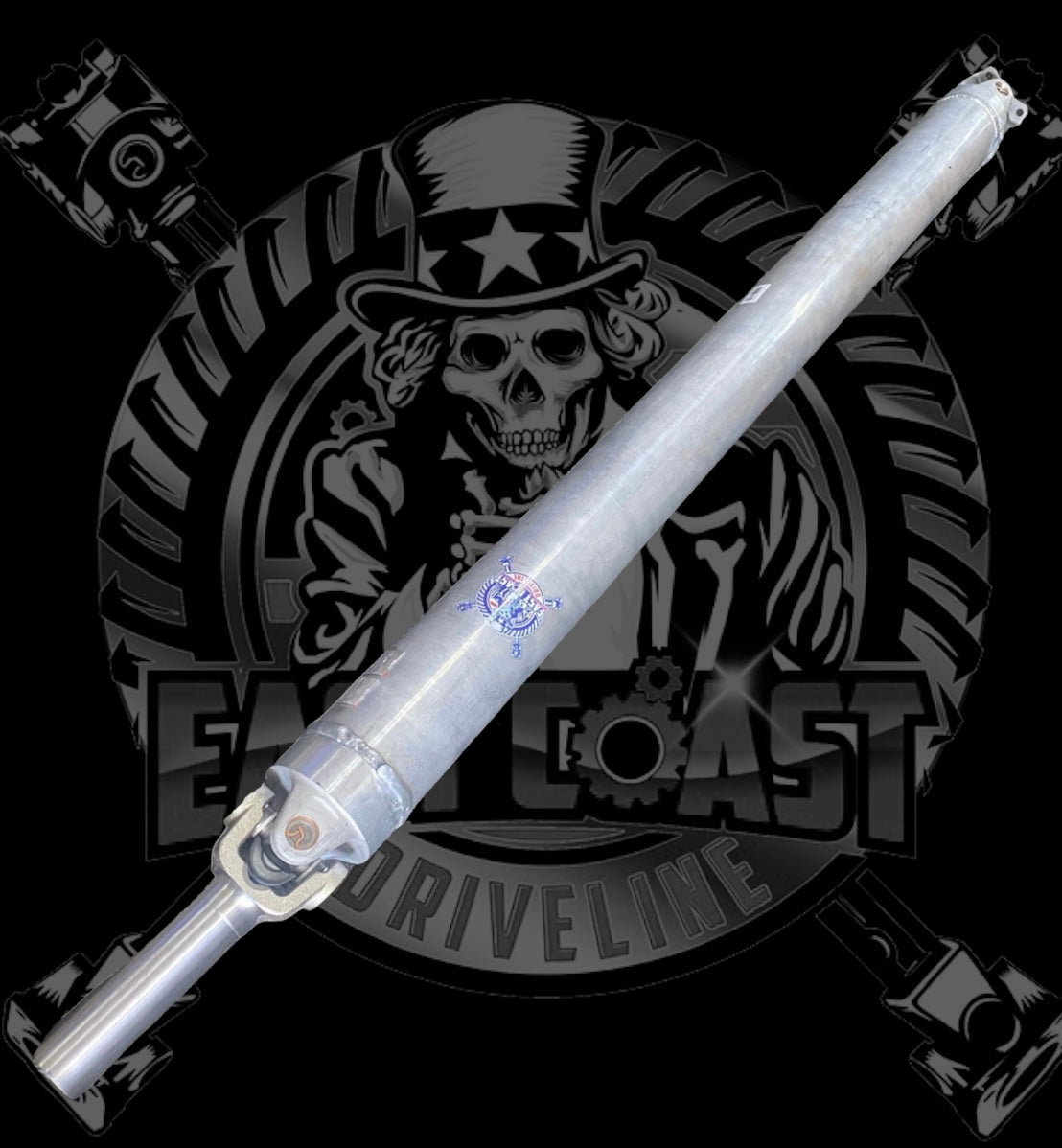

Custom Made to Order HD 5” Aluminum 1410 Series Driveshaft. 2-7 Days to Build and ship out.
Made with HD 5”x.125” Aluminum Tubing and Solid Spicer 1410 Series U-Joints.

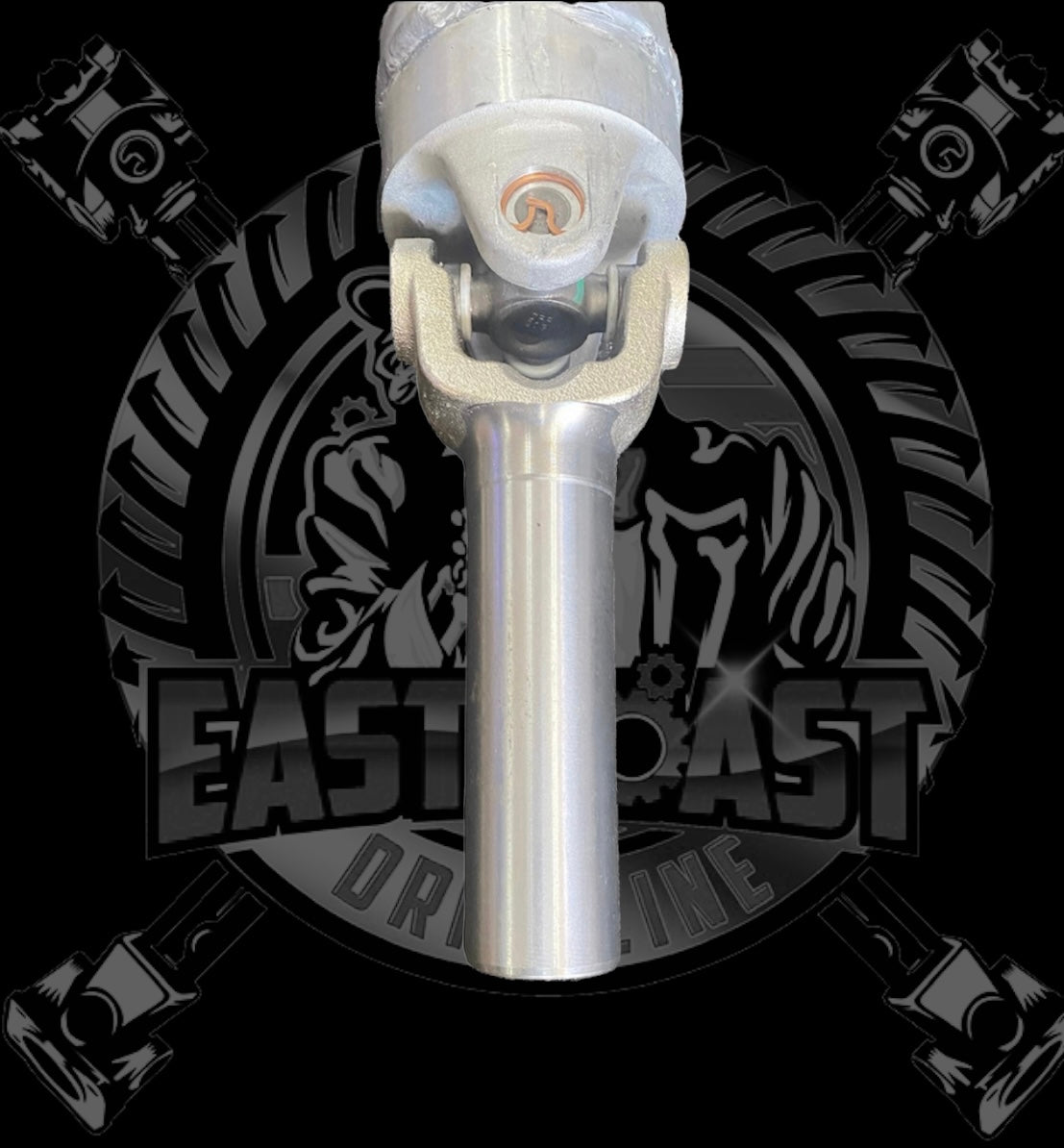

Front slip yoke had 33/34 Splines with 1.75” Inside Diameter and 2.300 Ground hub for the seal. Slip yoke measures to be 9.551” center u-joint to end.

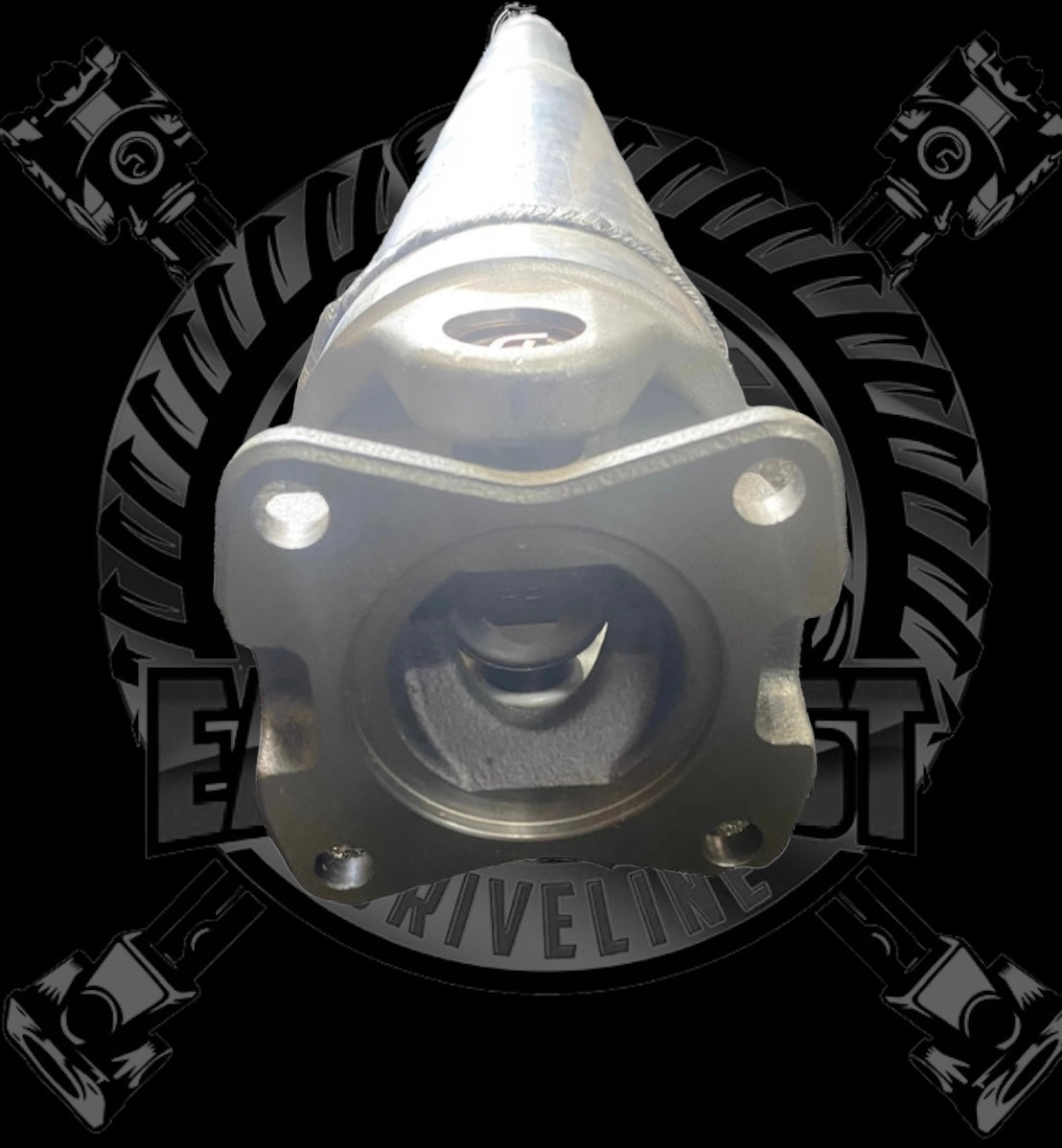

Rear flange yoke has a pilot size of 2.953” and bolt circle diameter of 4.75”.
Driveshaft is 68.5 inches Center U-Joint to Center U-Joint. Please make sure measurements are same before you order driveshaft. No returns for custom driveshaft.
*** If you need this driveshaft made at a different length please email PB.EastCoastDrivelineInc@Gmail.Com with order number and measurements you need driveshaft to be.
