East Coast Driveline

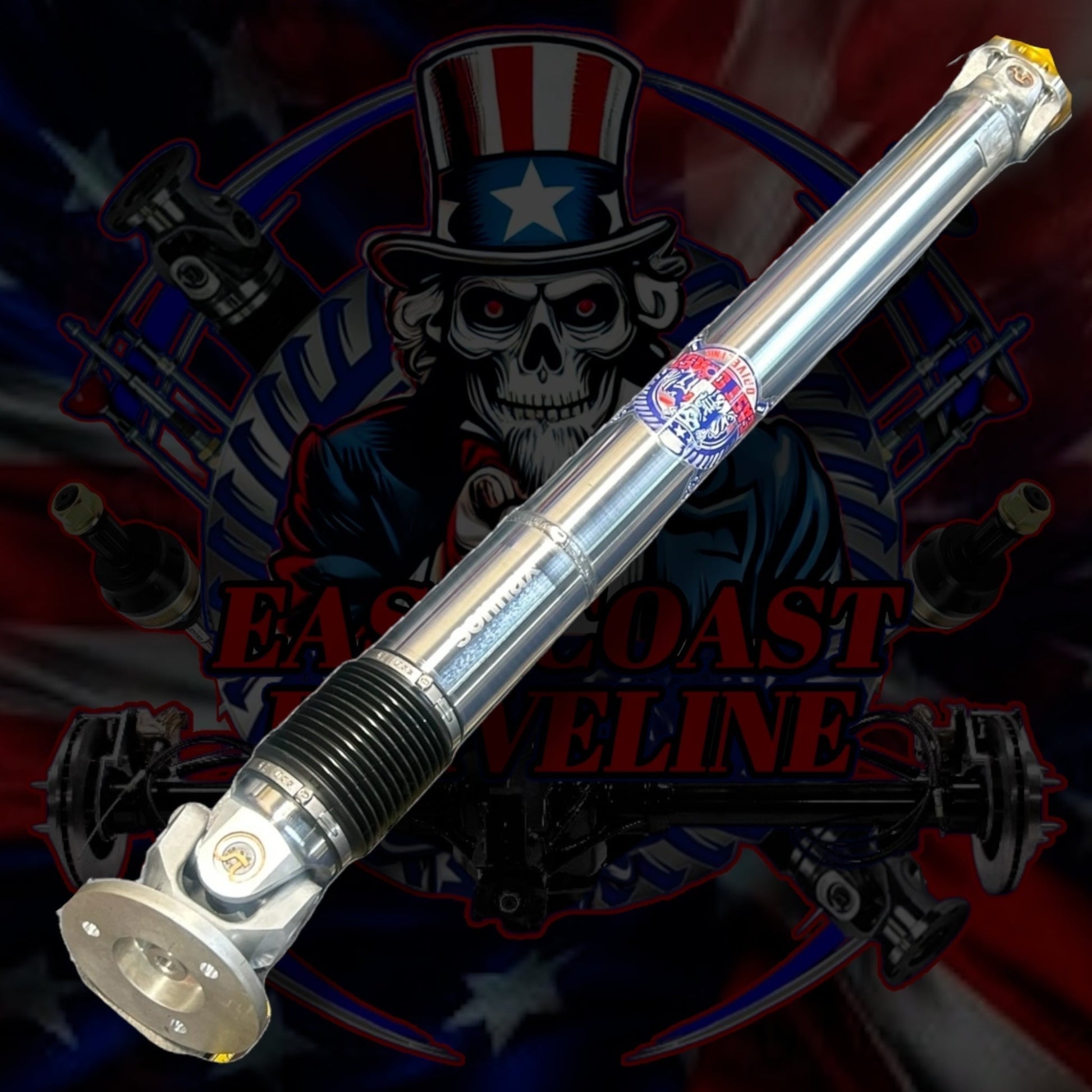

2017-2021 BMW M240i , 2014-2016 435i HD 1 Piece Driveshaft. F36 F31 F20 RWD Manual Transmission L=1432mm. Replaced OEM 26108678443, 26-10-8-678-443

2017-2021 BMW M240i , 2014-2016 435i HD 1 Piece Driveshaft. F36 F31 F20 RWD Manual Transmission L=1432mm. Replaced OEM 26108678443, 26-10-8-678-443

$2,295.00 USD
$2,295.00 USD
Sale Sold out
Style

Made to Order 1-2 Weeks Lead Time

Replaces Stock 2 Piece Steel Driveshaft. Manual Transmission

Part Number: 26108678443
Supersession(s): 26-10-8-678-443

Overall Length from end to end is:

1432mm or 56-3/8”

This Part Fits the Following Vehicles

Make Model Submodel Engine
BMW F22 M240i B58 3.0L
BMW F23 M240i B58 3.0L
BMW F30 335i N55 3.0L
BMW F33 435i N55 3.0L



Much Stronger and Flexible Racing Style Driveshaft made to withstand high torque and horsepower. (Gets rid if the weak Rubber Coupler on Transmission, no more hanger bearing, Strengthens and coverts the Rear CVJ to aHD Flange and U-Joint Setup. May cause slight vibrations going from a 2 piece to a 1 Piece Driveshaft.

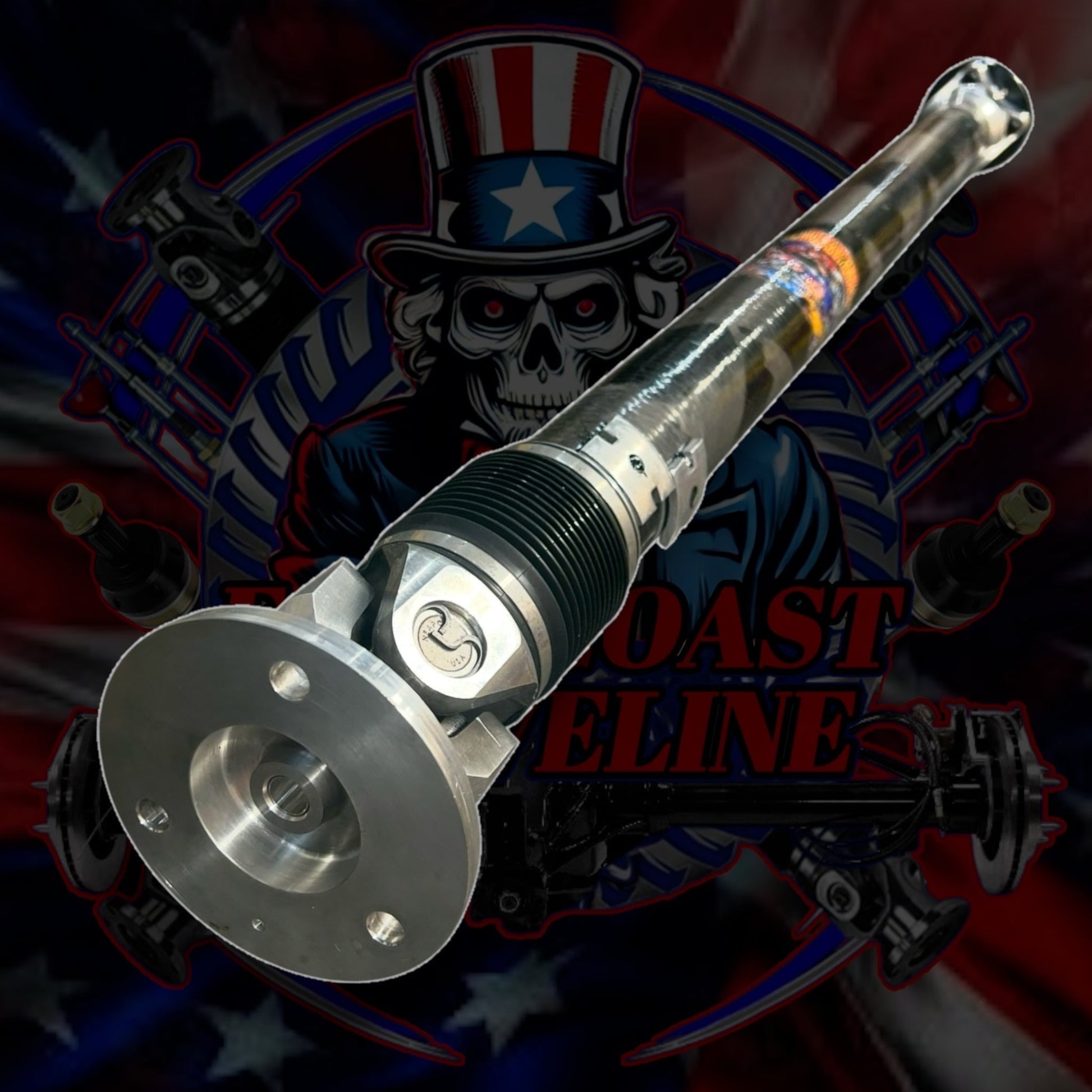

**Carbon Fiber driveshaft made with 3”ID x .125 or .155” wall Tubing, solid 1350 Series U-Joints and Billet Aluminum Flange Yokes with 105mm Front coupler delete Adapter. Custom Made Differential Adapter with 34 spline and threads.

***Can also be made in 3.5x.155” Carbon Fiber (3.81”OD). MUST CHECK CLEARANCE!! GETTING RID OF 2 PIECE DRIVESHAFT AND INSTALLING A MORE SOLID 1 PIECE DRIVESHAFT MAY CAUSE VIBRATIONS!

3” x .125 wall is 3510 ft/lbs Critical torque and 9865 rpm critical driveshaft speed

3” x .155 wall is 5196 ft/lbs Critical torque and 9204 rpm Critical driveshaft speed

3.5” x .155 wall is 6245 ft/lbs critical torque and 10,659 rpm critical driveshaft speed

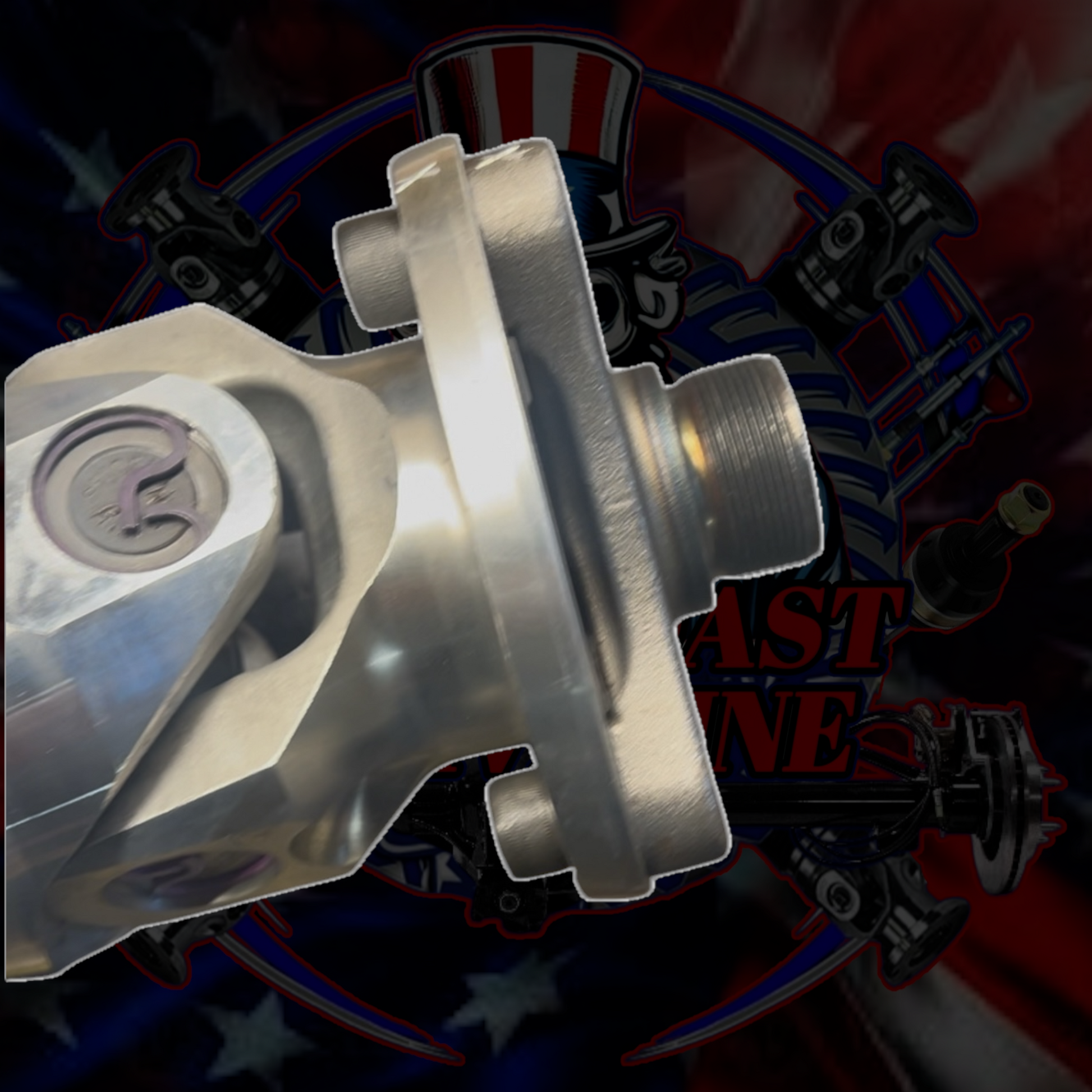

**Aluminum driveshaft made with 3.5”x .125” Tubing, solid 1350 Series U-Joints and Billet Aluminum Flange Yokes with 105mm Front coupler delete Adapter. Custom Made 34 spline Differential Adapter with spline and threads.

****MUST SHIP REAR SECTION OF ORIGINAL DRIVESHAFT FOR CUSTOM CONVERSION YOKE TO BE MADE FOR DIFFERENTIAL****
