East Coast Driveline

2019-2022 BMW M340i X-Drive G20 HD 1 Piece Carbon Fiber or Aluminum Driveshaft . BMW OEM Part Number: 26108678479 - (26-10-8-678-479)

2019-2022 BMW M340i X-Drive G20 HD 1 Piece Carbon Fiber or Aluminum Driveshaft . BMW OEM Part Number: 26108678479 - (26-10-8-678-479)

Regular price $4,294.99 USD
Regular price $4,494.99 USD Sale price $4,294.99 USD
Sale Sold out
Style
ADD New HD Chromoly Housing/300M Bar Pair of Axles: Rated 1000+HP?

Made to Order 1-2 Weeks Lead Time

Replaces Stock 2 Piece Steel Driveshaft

Part Number: 26108678479
Supersession(s): 26-10-8-678-479

Overall Length from end to end is:

1327mm or 52 1/4”

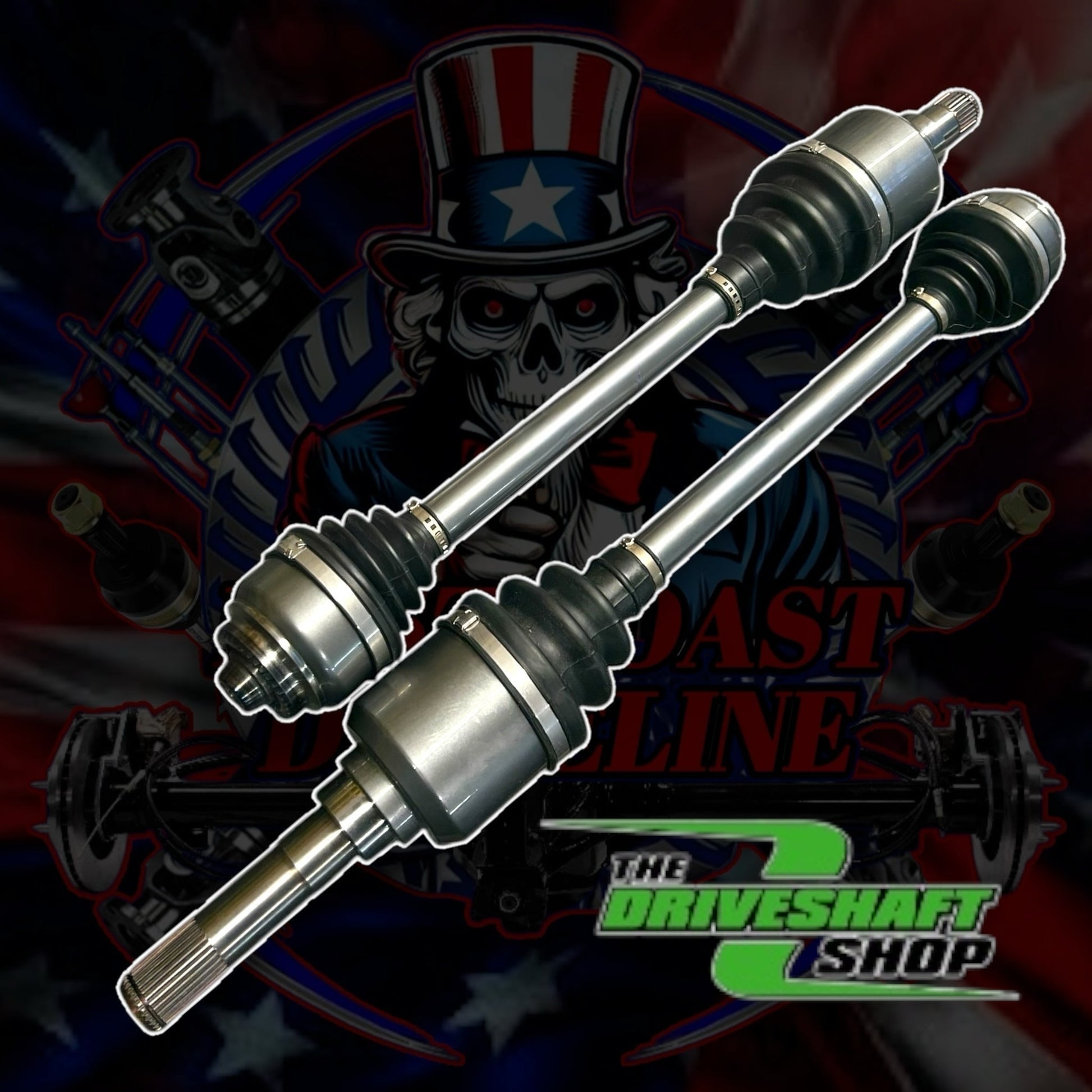

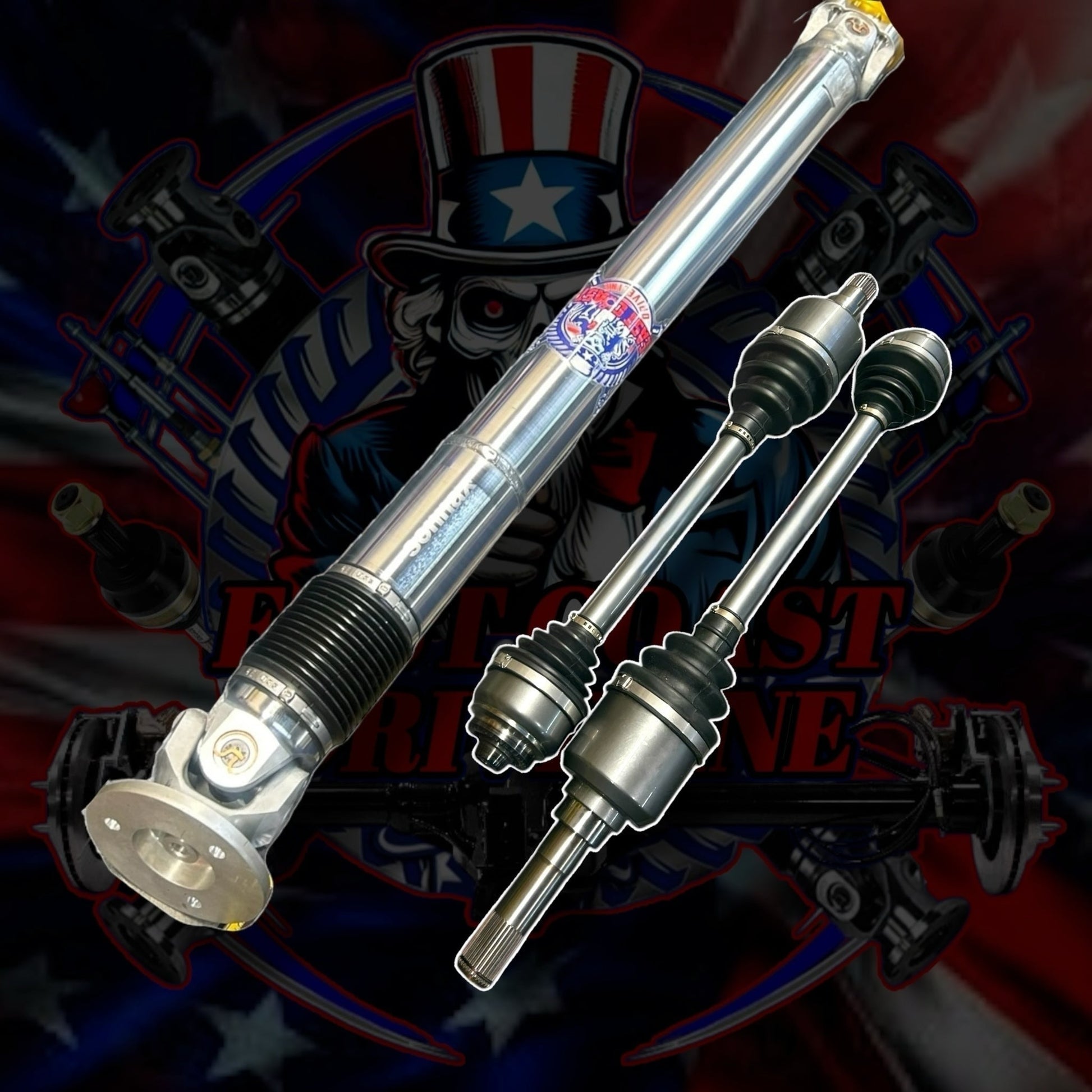

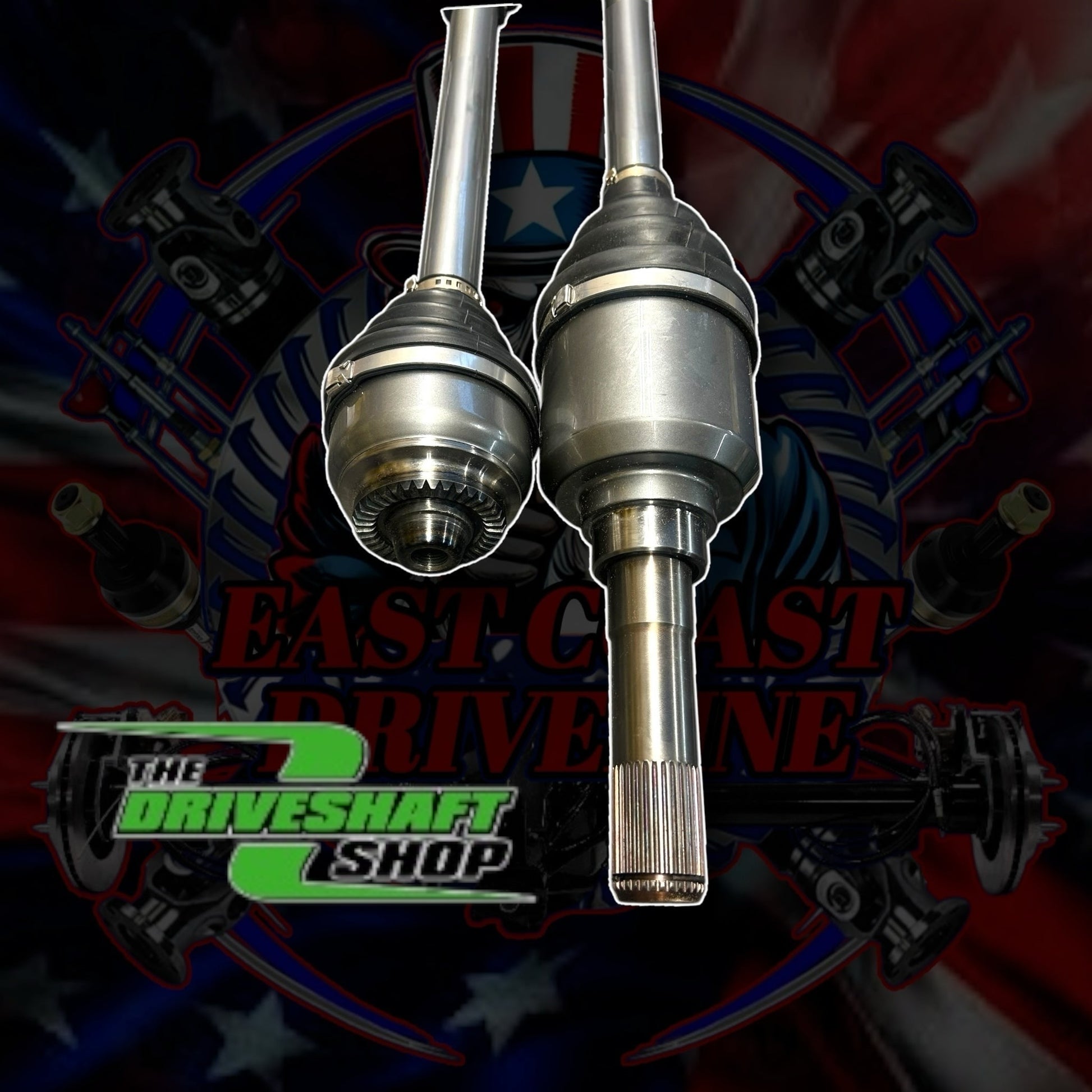

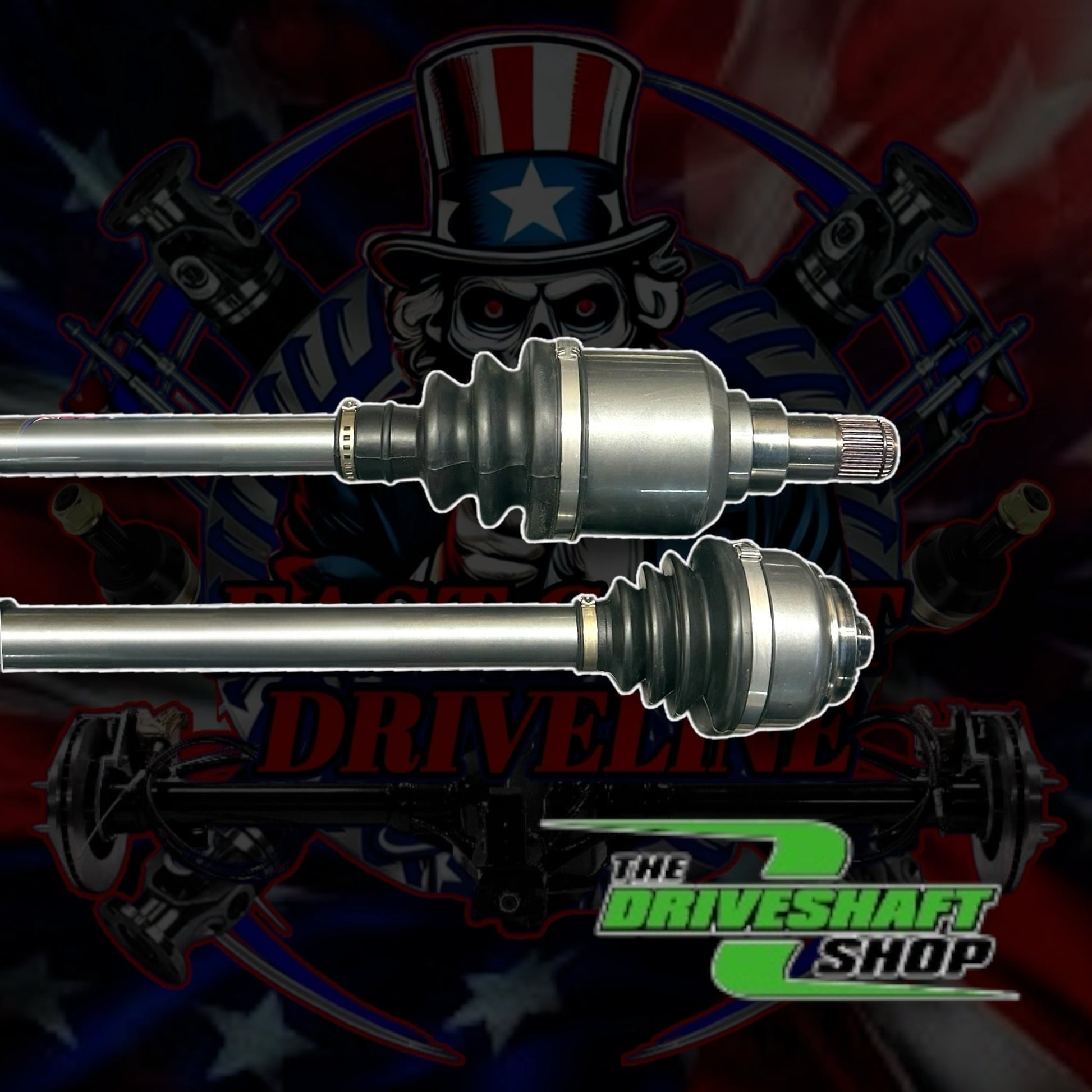

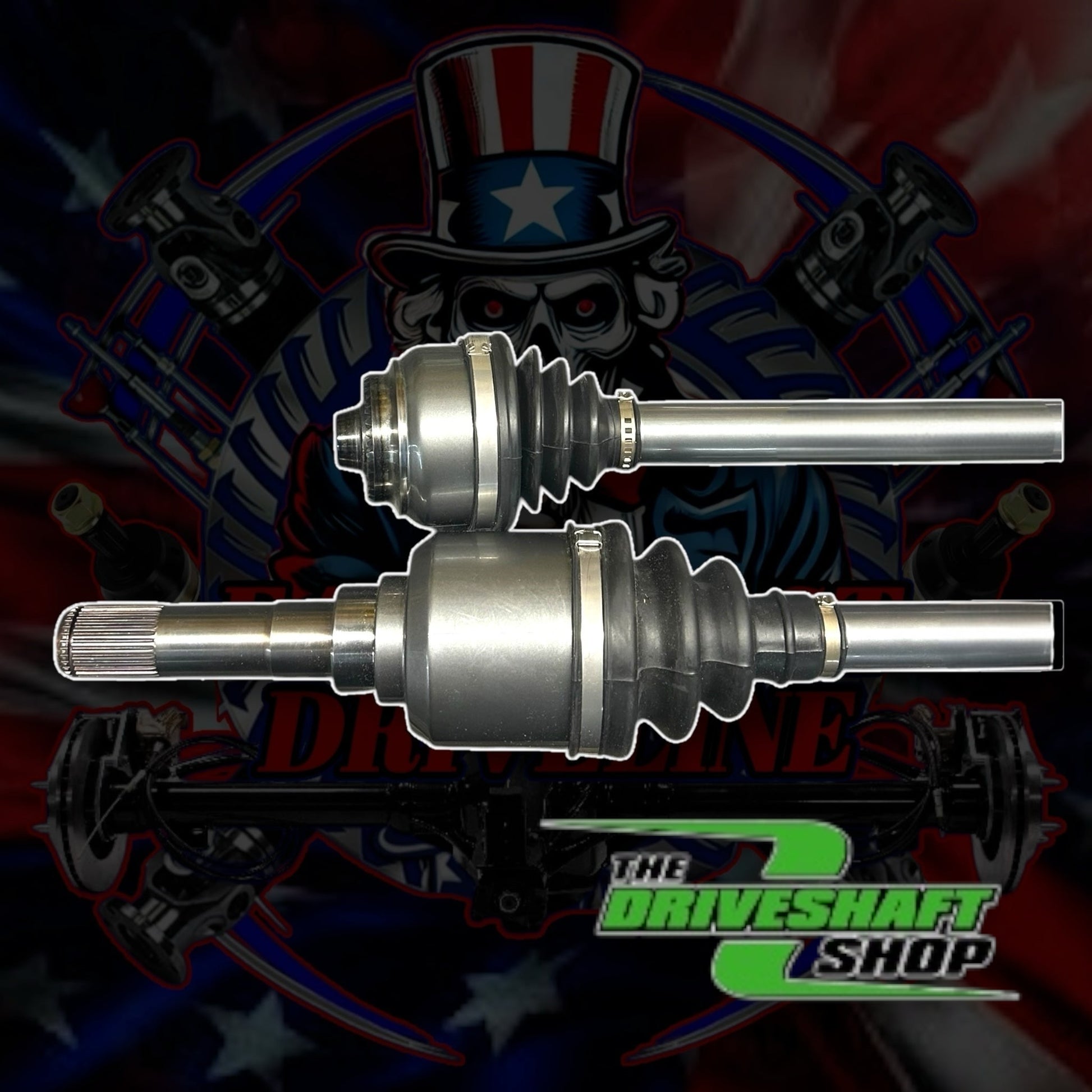

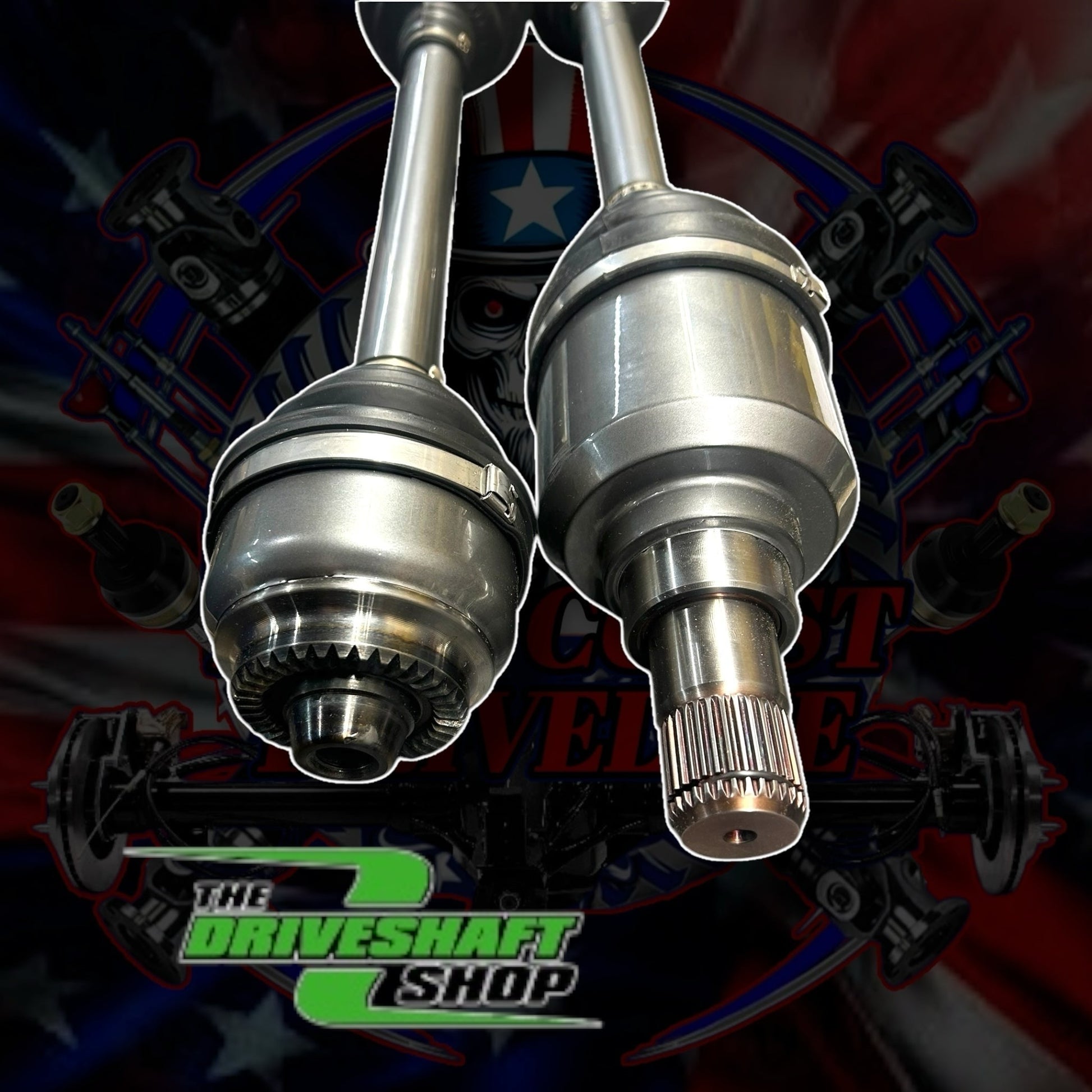

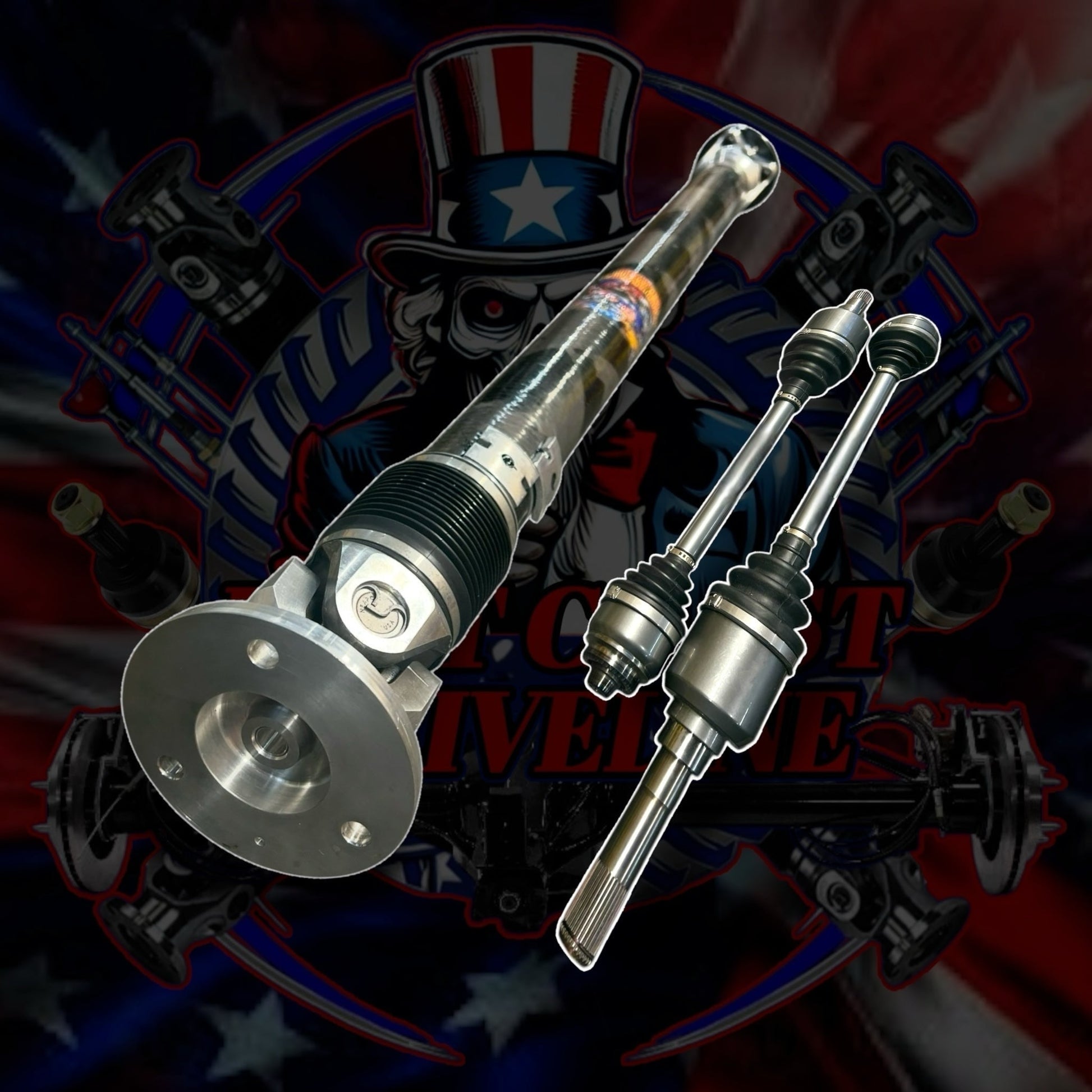

MAKE IT A KIT WITH NEW CHROMOLY AXLES

Much Stronger and Flexible Racing Style Driveshaft made to withstand high torque and horsepower. (Gets rid if the weak Rubber Coupler on Transmission, no more hanger bearing, Strengthens and coverts the Rear CVJ to aHD Flange and U-Joint Setup. May cause slight vibrations going from a 2 piece to a 1 Piece Driveshaft.

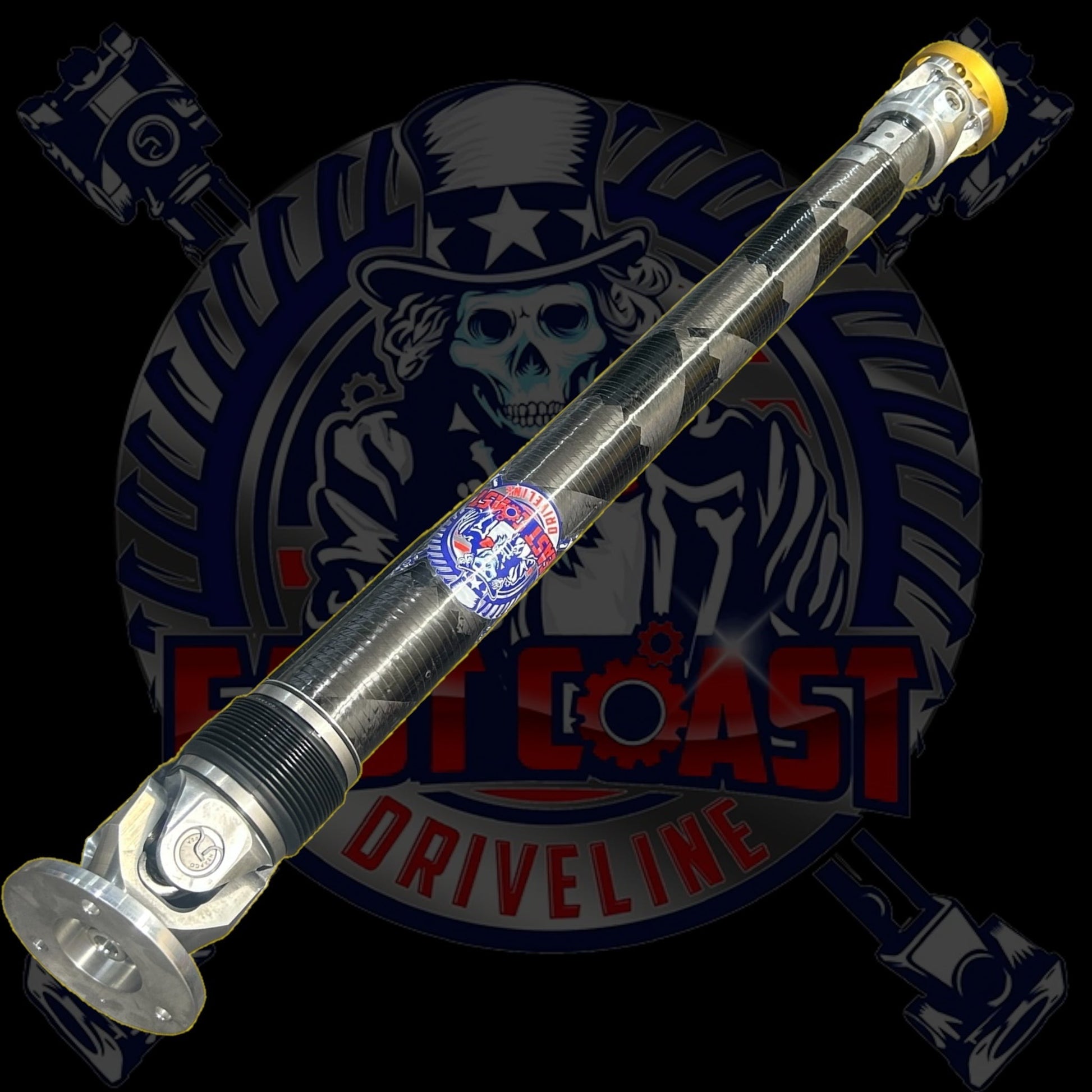

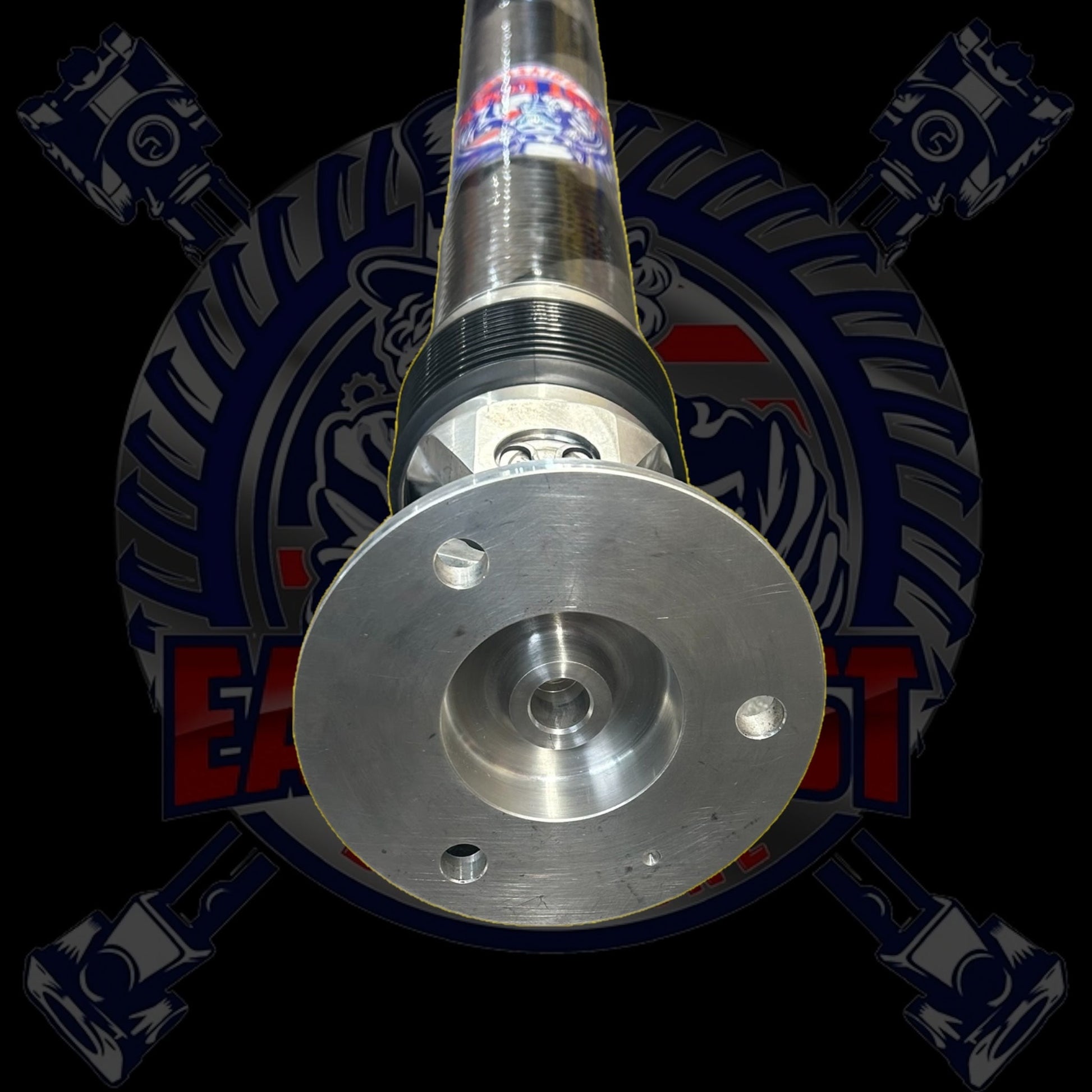

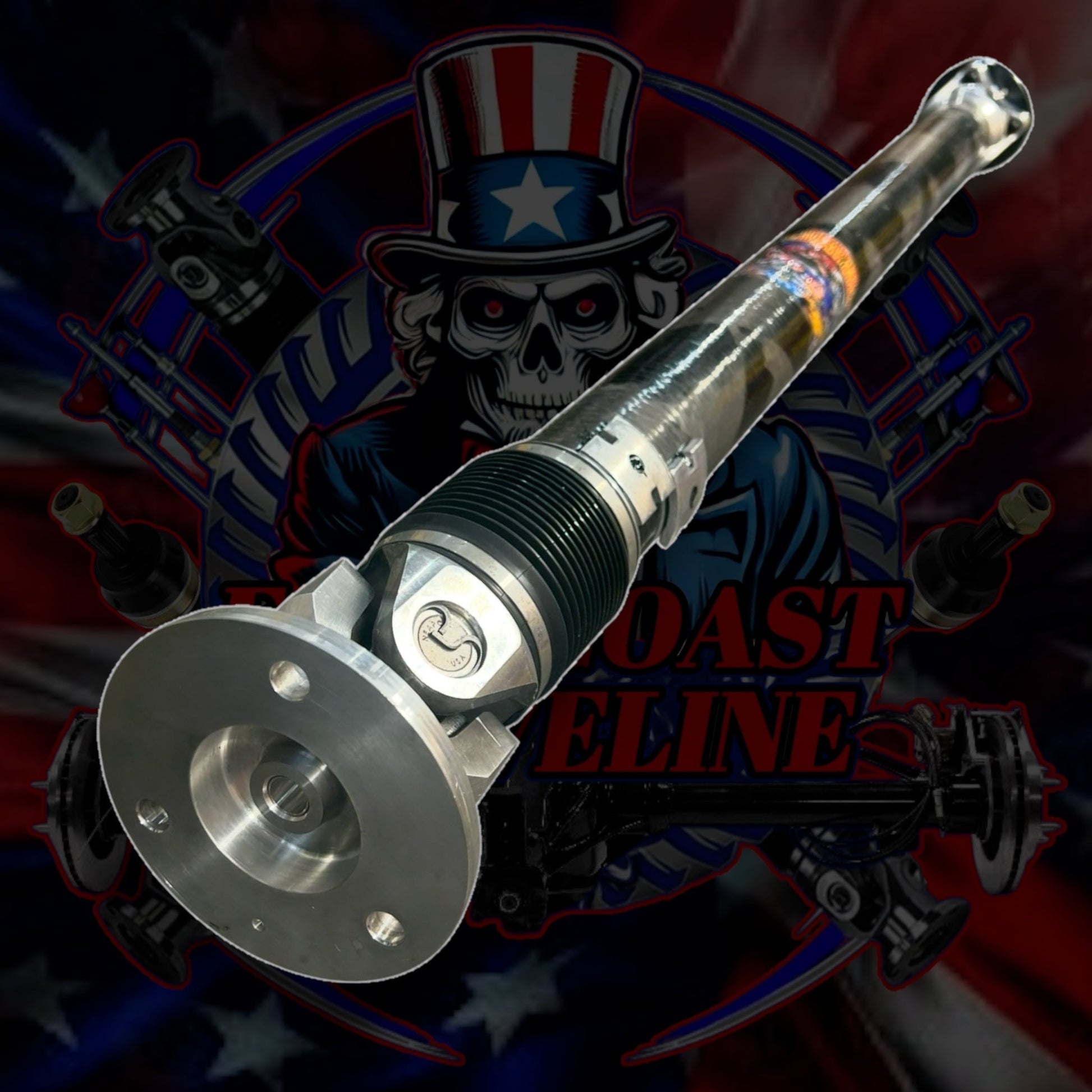

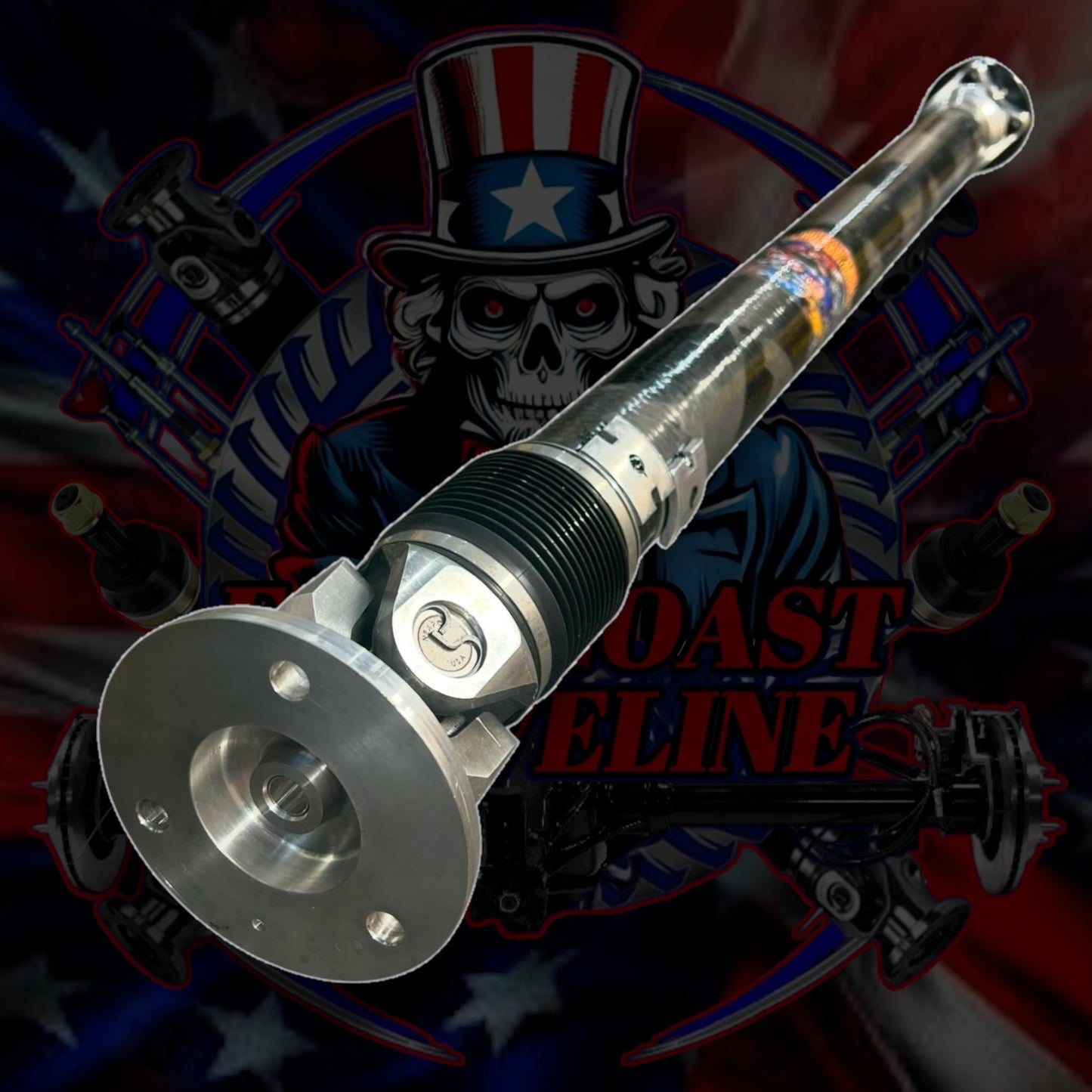

**Carbon Fiber driveshaft made with 3”ID x .125 or .155” wall Tubing, solid 1350 Series U-Joints and Billet Aluminum Flange Yokes with 96mm Front coupler delete Adapter. Custom Made Differential Adapter with 34 spline and threads.

***Can also be made in 3.5x.155” Carbon Fiber (3.81”OD). MUST CHECK CLEARANCE!! GETTING RID OF 2 PIECE DRIVESHAFT AND INSTALLING A MORE SOLID 1 PIECE DRIVESHAFT MAY CAUSE VIBRATIONS!

3” x .125 wall is 3510 ft/lbs Critical torque and 9865 rpm critical driveshaft speed

3” x .155 wall is 5196 ft/lbs Critical torque and 9204 rpm Critical driveshaft speed

3.5” x .155 wall is 6245 ft/lbs critical torque and 10,659 rpm critical driveshaft speed

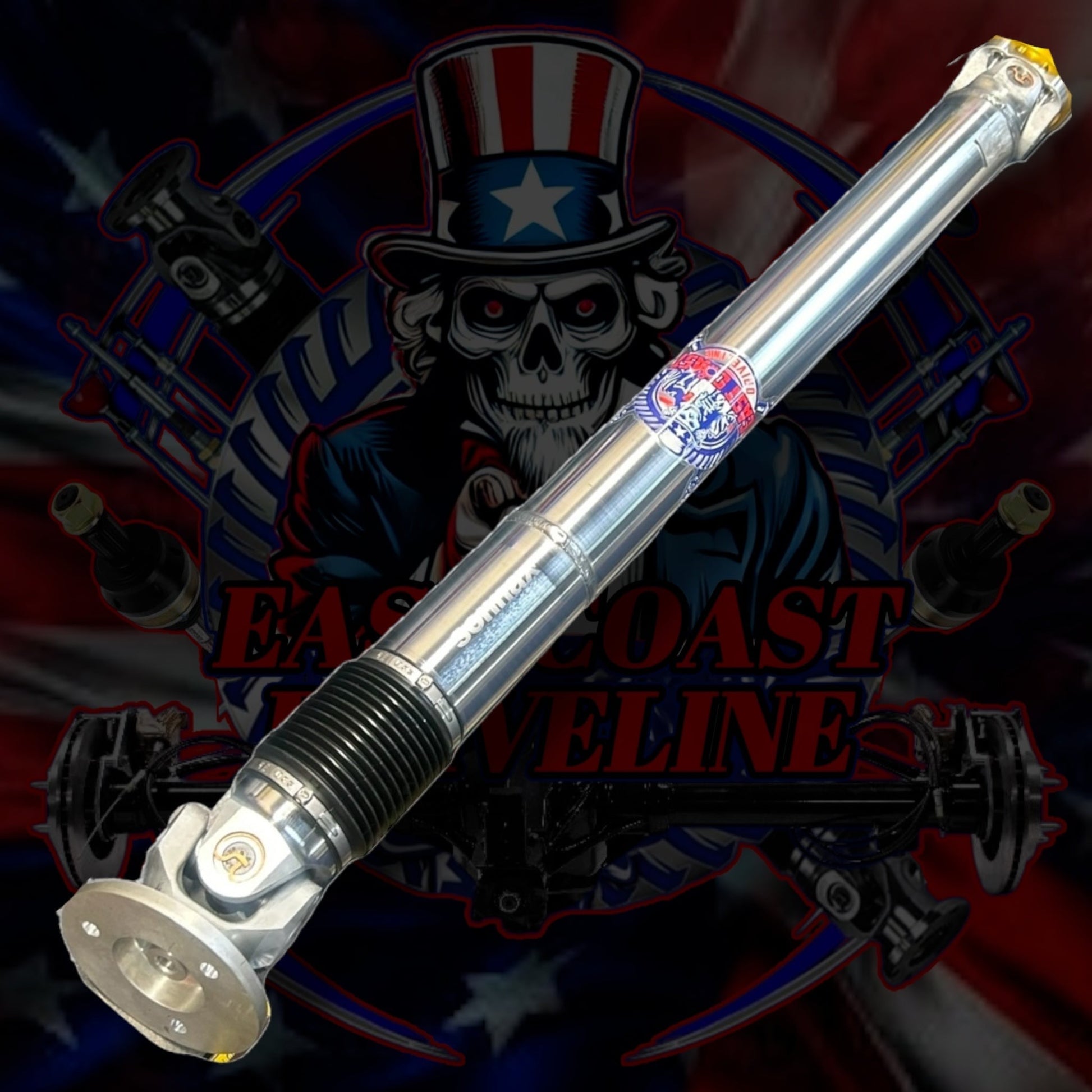

**Aluminum driveshaft made with 3.5”x .125” Tubing, solid 1350 Series U-Joints and Billet Aluminum Flange Yokes with 96mm Front coupler delete Adapter. Custom Made 34 spline Differential Adapter with spline and threads.



CUSTOMER IS RESPONSIBLE FOR CHECKING CLEARANCE IN TUNNEL FOR DRIVESHAFT ORDERED. ANY DAMAGE DONE TO DRIVESHAFT FROM HEAT SHIELD, EXHAUST, TANK, BOLTS, etc VOIDS ALL WARRANTY ON CUSTOM MADE TO ORDER DRIVESHAFT.

ALL SALES ARE FINAL. CUSTOM MADE TO ORDER DRIVESHAFTS CANNOT BE RETURNED AND WILL BE NO REFUNDS.

Terms and Conditions

Due to the intended use of high performance products, East Coast Driveline Inc. ("ECD”) products and each part thereof, are sold "AS IS” and with all faults. To the fullest extent allowed by law, ECD Racing Products makes NO written, oral, expressed, or implied statement of warranty or guarantee on any product or part sold. ECD will not be liable for any direct, indirect, incidental, consequential, or special damages, including but not limited to, damage, injury, loss of life, loss of property or equipment, loss of profits or revenue, or claims from any individual or entity arising from the use of any ECD product.

RACING IS A DANGEROUS ACTIVITY AND PURCHASERS OF ECD PRODUCTS ACKNOWLEDGE THE INHERENT RISKS ASSOCIATED. ECD MAKES NO REPRESENTATIONS THAT ITS PRODUCTS CAN REDUCE OR ELIMINATE ANY SUCH RISK. ECD PRODUCTS ARE NOT FOR STREET, HIGHWAY, OR AIRCRAFT USE and are intended ONLY for race vehicles operated on closed-course facilities or race tracks with appropriate supervision of qualified technicians or mechanics to ensure that the safety needs of the race driver and others are met. ECD products could be combined with other products or parts which may not be suitable and could adversely affect performance of other race parts or the vehicle. The user shall determine the ultimate suitability and safety of the product for its intended use, and the user assumes all responsibility and risk in connection therewith.
