2019-2023 BMW M8 & 2019-2020 M850i F91/F92 S63 4.4L V8 HD 1 Piece Carbon Fiber or Aluminum Driveshaft BMW - 26107855833 - (26-10-7-855-833)
2019-2023 BMW M8 & 2019-2020 M850i F91/F92 S63 4.4L V8 HD 1 Piece Carbon Fiber or Aluminum Driveshaft BMW - 26107855833 - (26-10-7-855-833)
Couldn't load pickup availability
Made to Order 1-2 Weeks Lead Time
Replaces Stock 2 Piece Steel Driveshaft
BMW Part # 26-10-7-855-833 , 27107855833
Overall Length from end to end is:
1288 mm or 50.71 inches
110MM GEN 2 Front Adapter
27 Spline Differential Output Yoke
Much Stronger and Flexible Racing Style Driveshaft made to withstand high torque and horsepower. (Gets rid if the weak Rubber Coupler on Transmission, no more hanger bearing, Strengthens and coverts the Rear CVJ to aHD Flange and U-Joint Setup. May cause slight vibrations going from a 2 piece to a 1 Piece Driveshaft.

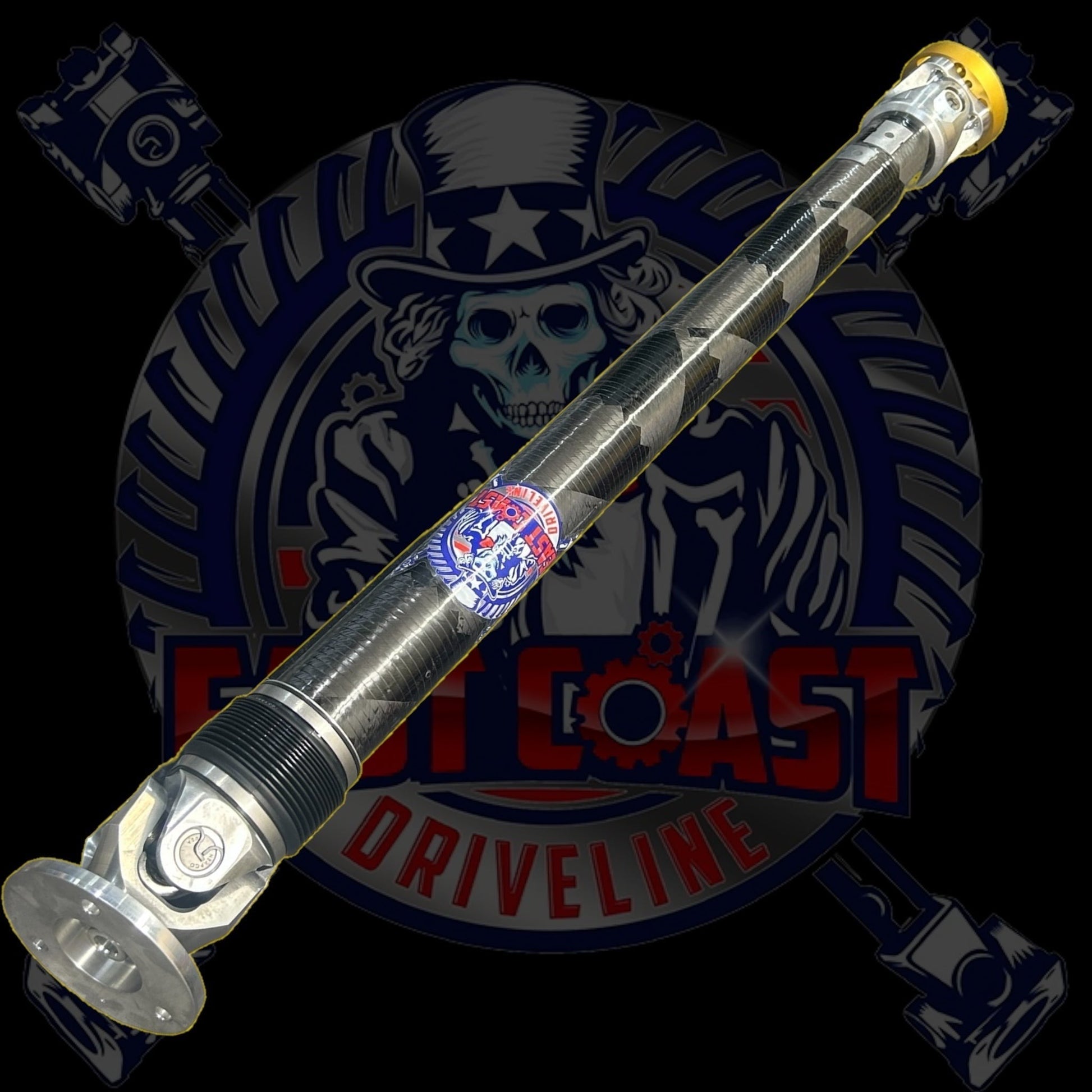

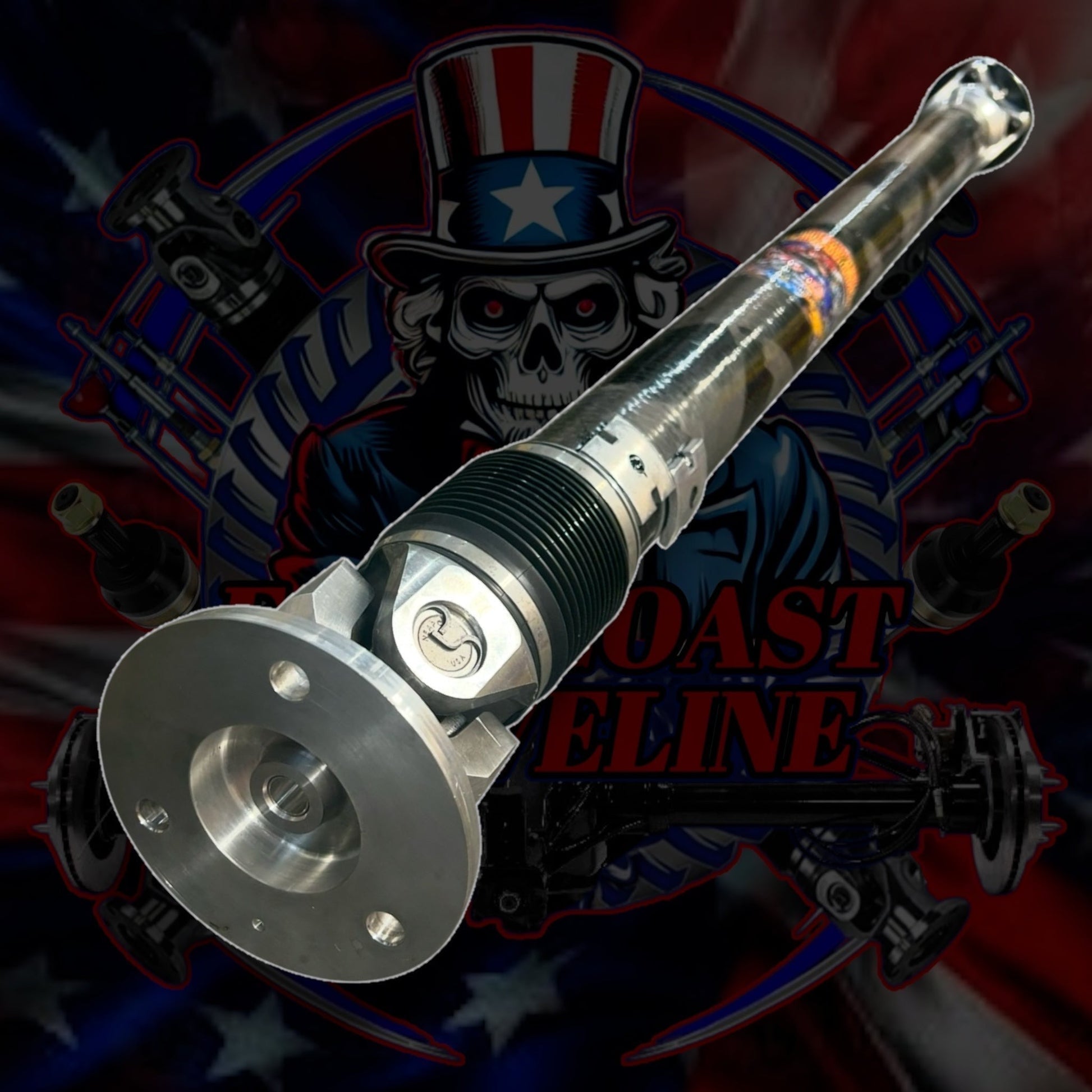

**Carbon Fiber driveshaft made with 3”ID x .125 or .155” wall Tubing, solid 1350 Series U-Joints and Billet Aluminum Flange Yokes with Front coupler delete Adapter. Custom Made Differential Adapter with 27 spline and threads.
***Can also be made in 3.5x.155” Carbon Fiber (3.81”OD). MUST CHECK CLEARANCE!!
3” x .125 wall is 3510 ft/lbs Critical torque and 9865 rpm critical driveshaft speed
3” x .155 wall is 5196 ft/lbs Critical torque and 9204 rpm Critical driveshaft speed
3.5” x .155 wall is 6245 ft/lbs critical torque and 10,659 rpm critical driveshaft speed

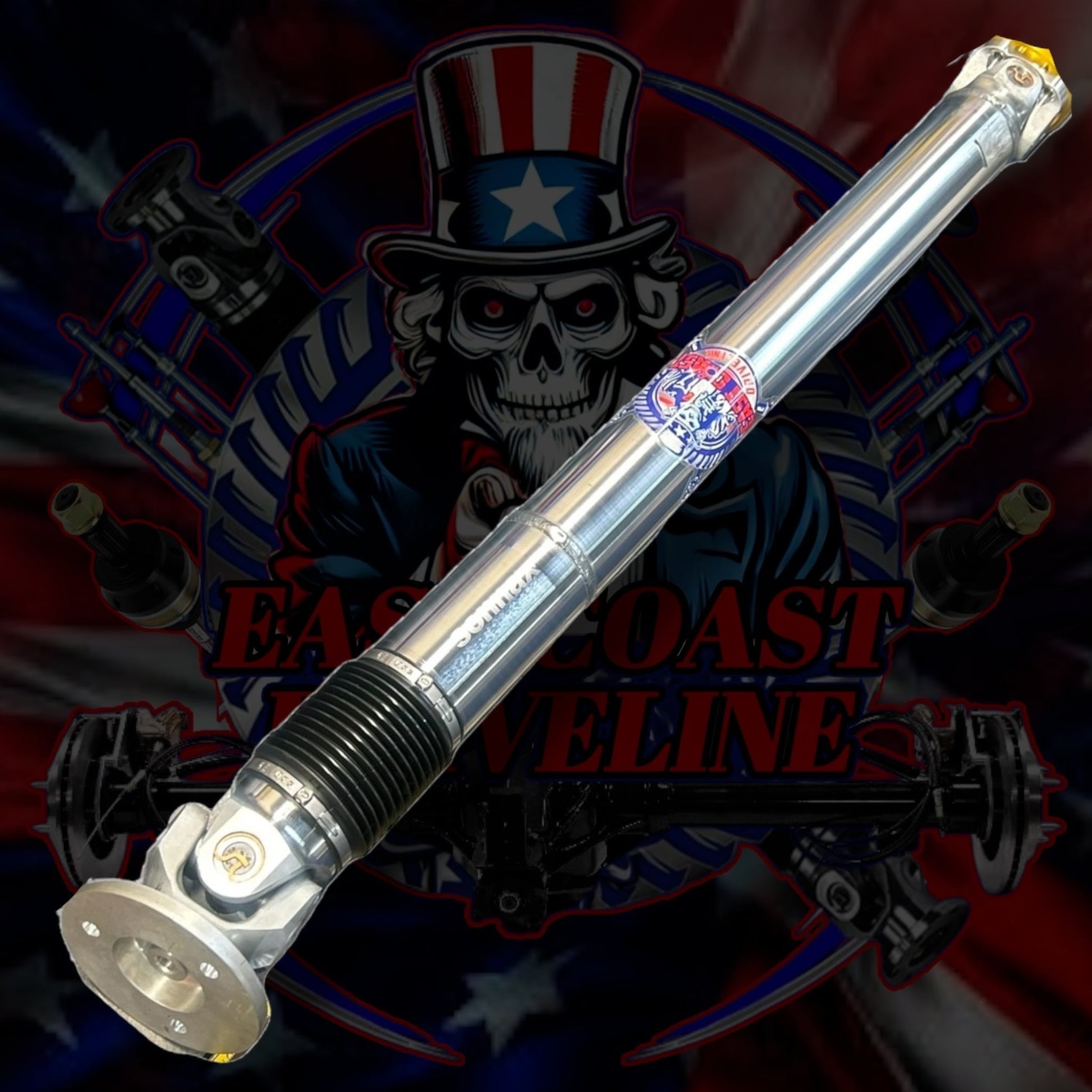

**Aluminum driveshaft made with 3.5”x .125” Tubing, solid 1350 Series U-Joints and Billet Aluminum Flange Yokes with Front coupler delete Adapter. Custom Made 27 spline Differential Adapter with spline and threads.
****MUST SHIP REAR SECTION OF ORIGINAL DRIVESHAFT FOR CUSTOM CONVERSION YOKE TO BE MADE FOR DIFFERENTIAL****
VEHICLE FITMENT
| Year | Make | Model | Body & Trim | Engine & Transmission |
|---|---|---|---|---|
| 2023 | BMW | M8 | Competition | 4.4L V8 - Gas |
| 2022 | BMW | M8 | Base, Competition | 4.4L V8 - Gas |
| 2020 | BMW | M8 | Base, Competition | 4.4L V8 - Gas |
| 2020 | BMW | M8 Gran Coupe | Base, Competition | 4.4L V8 - Gas |
| 2020 | BMW | M850i xDrive | Base | 4.4L V8 - Gas |
| 2019 | BMW | M850i xDrive | Base | 4.4L V8 - Gas |
