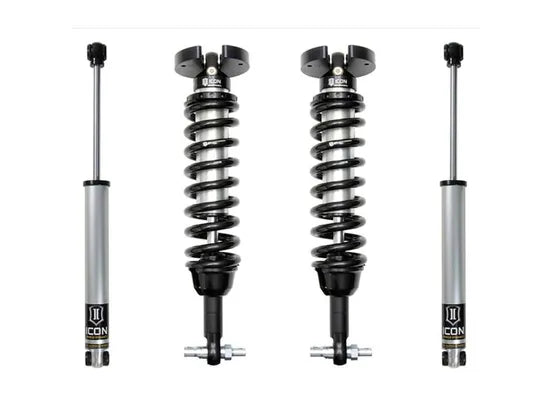

2019-2024 Chevy Silverado 1500 / GMC 1500 Icon K73061 Stage 1 1.5-3.5" Suspension System

2019-2024 Chevy Silverado 1500 / GMC 1500 Icon K73061 Stage 1 1.5-3.5" Suspension System

Regular price $2,239.85 USD
Regular price $2,995.80 USD Sale price $2,239.85 USD
Sale Sold out

DESCRIPTION

ICON Vehicle Dynamics 2019-UP GM Silverado/Sierra 1500 suspension systems are designed to dramatically increase the on and off-road ride quality. Icon engineers primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, Icon engineers researched each component of the GM platform's suspension and addressed any areas where performance could be extracted. The stage 1 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and Icon-engineered eibach coil springs for superior vehicle "feel" through the range of travel. These coilovers are also height adjustable from 1.5-3.5" allowing the use of larger, more aggressive wheel and tire combinations. Icon 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-UP GM Silverado/Sierra 1500 stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.



System Components



  • 71605 (Qty: 1) | 19-UP GM 1500 2.5 VS IR coilover kit
  • 76526 (Qty: 2) | 07-UP GM 1500 0-2" rear 2.0 VS IR



Notes:



  • Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
  • 2019-UP Chevrolet Silverado 1500 Trail Boss and 2019-UP GMC Sierra 1500 AT4 lift height range 0-1.5" over stock

Features and Benefits

  • Adjustable coilovers provide 1.5-3.5" of front lift height
  • Increased lift height allows for fitment of larger and more aggressive tires
  • Up to 25% increase in front wheel travel over stock
  • Icon shocks feature vehicle specific tune for superior performance and ride quality
  • 2.5 Series coilovers feature corrosion resistant CAD plated shock body with 7/8" shaft
  • 2.0 Aluminum Series rear shocks feature corrosion resistant anodized shock body with 5/8" shaft
  • 7.5" aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
  • FK Rod End bearings provide extended longevity and minimal deflection
  • Shocks are fully rebuildable and revalveable
  • Direct bolt-in design makes for a simple and straightforward installation
WARNING:

TECH SPECS

DOWNLOAD INSTRUCTIONS: K73061 Instructions
WEIGHT: 60 lbs.
PART K73061 FITS: 2019-2022 Chevy Silverado 1500
