2020-2023 Jeep Gladiator Front 1350 Series XTreme Duty Front Driveshaft
2020-2023 Jeep Gladiator Front 1350 Series XTreme Duty Front Driveshaft
Application:
This Xtreme Duty Series Solid 1350 CV Driveshaft will work up to 42" Tall Tires. Bigger tires add more Weight, Traction, and more Pressure on your Drivetrain Components like your Driveshafts, Axles, Gears, Etc., so you want to make sure you are buying the right driveshaft for your Jeep. This Driveshaft will work up to a 6" Lift after that the angle may be too Severe or it may Bind. Our driveshafts are made for specific length for 0-6” Lift. READ BELOW

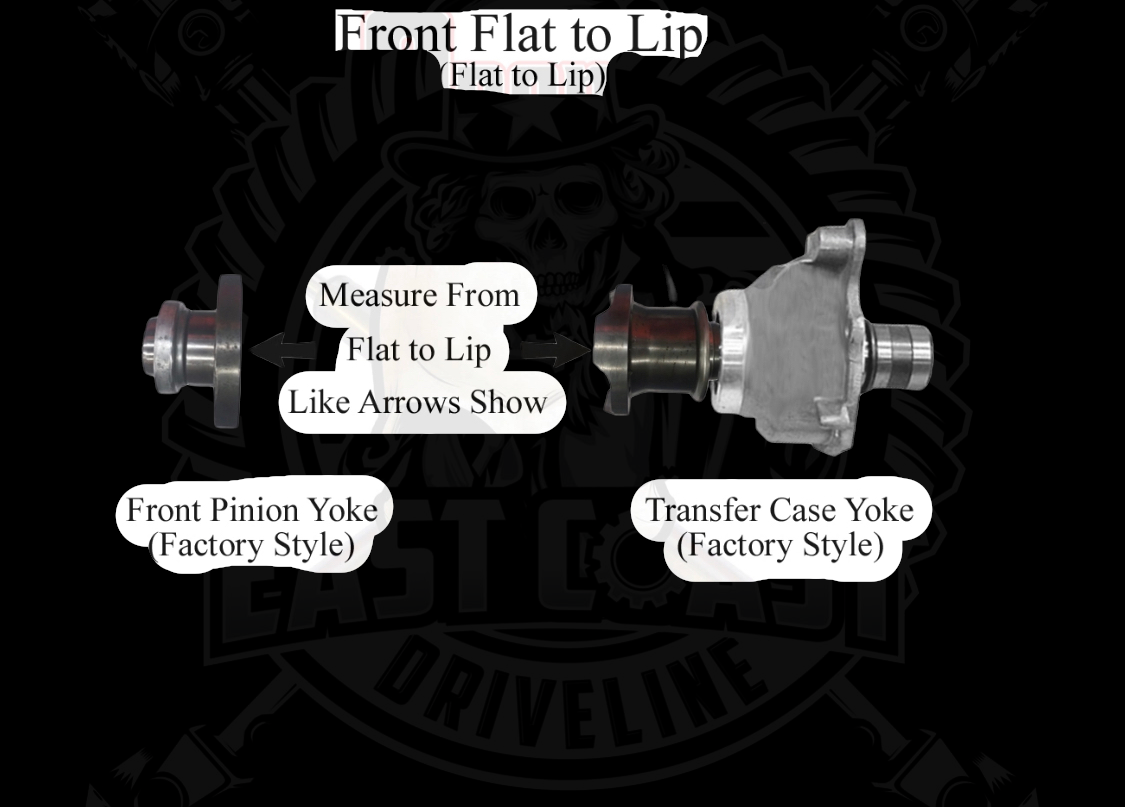

*****Please enter Your Measurement, Year, Make, Model, Rubicon or NON Rubicon and Lift Size in the notes if you need custom length or if you have an EVO lift kit. Or you can e-mail us at PB.EastCoastDrivelineinc@Gmail.Com, or call us at 631-348-1818 after you have purchased the Item. All measurements must be taken with the jeep sitting at Ride Height***
Benefits for Buying an ECD Driveshaft:
- Front Driveshaft Part# DS-Jeep-Gladiator-1350CVFront
- Made out of 2" X .120 Wall D.O.M. tubing that is Double the Strength of the Factory Tubing and will clear the exhaust and cross member eliminating damage to the driveshaft at full droop.
- Has Long 1 1/2" Full Spline Slip n Stub unlike our Competitors that use a 1 3/8 Slip n Stub.
- Built only with Components made by Spicer and Neapco.
- Has the Strongest Solid Non Greasable U-joints on the Market. You Break the U-joint we replace it.
- Has a Heavy Duty Flange on it that fits your OEM Pinion Flange so it is Easier to install and you won't Disturb the Crush Sleeve.
- Comes with Grade 10 CV Bolts with small heads on them so they are easier to install and a Packet of Loctite. Our Competitors use grade 8.

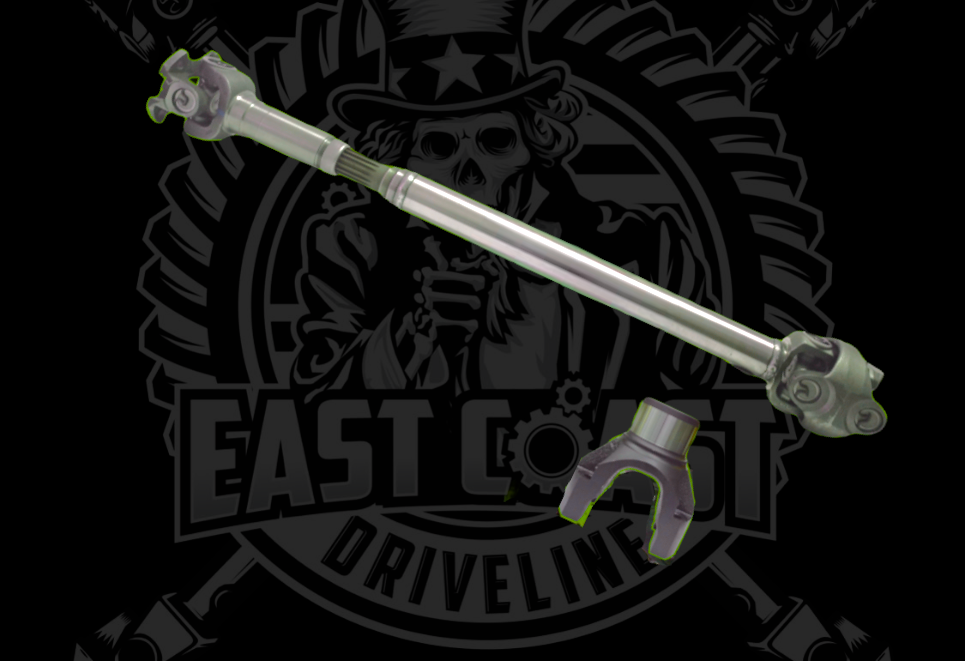

This Item will include the following parts as Pictured up Top:
[1] 2" X .120 Wall Extreme Duty 1350 CV Driveshaft with Solid Non Greasable U-joints, with a OEM Style Flange. Lifetime Warranty if you twist our tube, break a weld, or break a U-joint in half due to Torque.
[1] American Made Front 1350 Half Round Transfer Case Output Shaft Yoke.
[4] Grade 10 CV bolts.
[1] ECD T-shirt
Driveshafts come painted Gloss Black Show Quality.
ALL OUR DRIVESHAFTS ARE “MADE TO ORDER” TO THE CUSTOM LENGTH OF YOUR LIFTED TRUCK.
