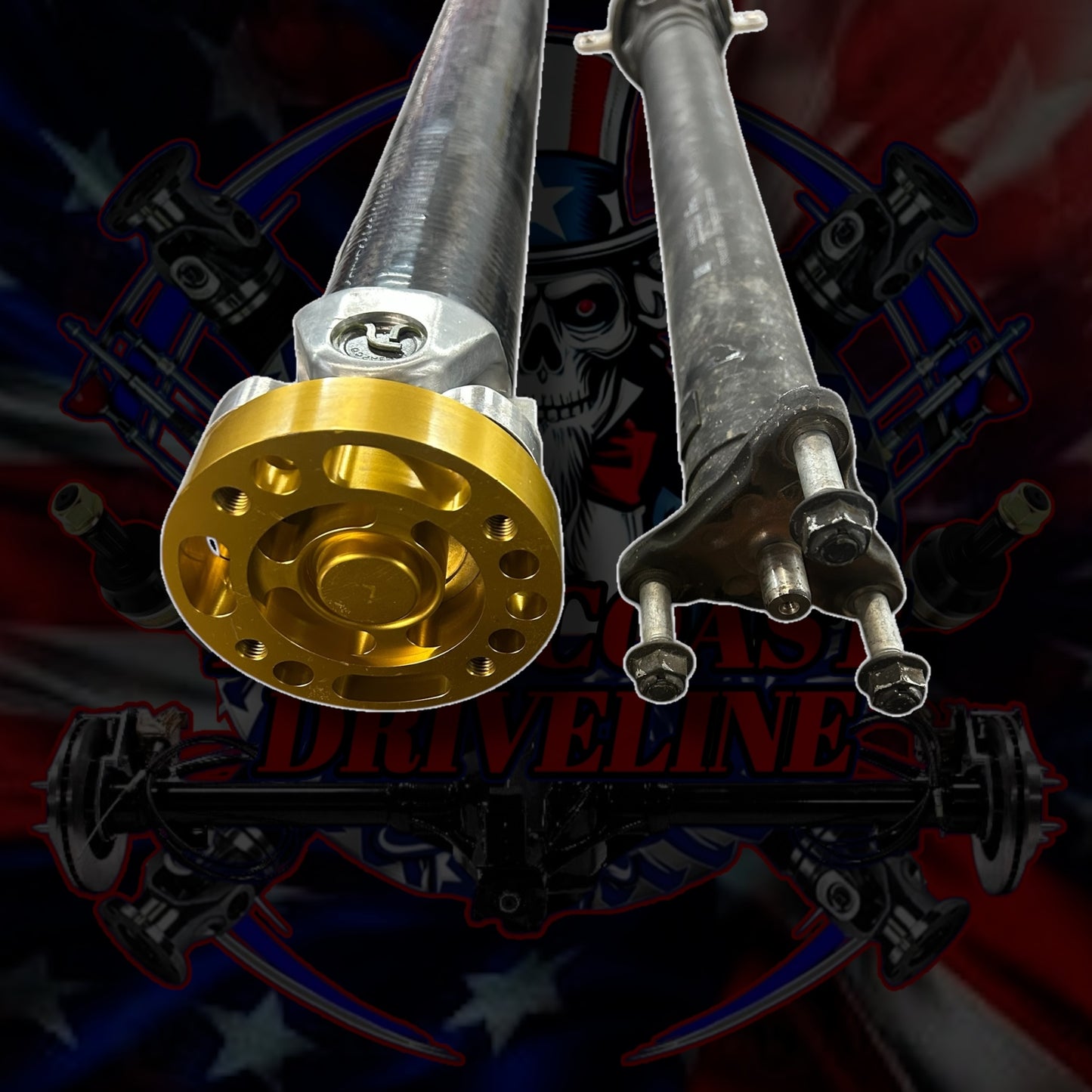

2019-2024 BMW M340i rwd 2021-2024 M440i G20/G22/G23/G26 HD 1 Piece Carbon Fiber or Aluminum Driveshaft . BMW OEM Part Number: 26109488375, 26-10-9-488-375
2019-2024 BMW M340i rwd 2021-2024 M440i G20/G22/G23/G26 HD 1 Piece Carbon Fiber or Aluminum Driveshaft . BMW OEM Part Number: 26109488375, 26-10-9-488-375
Couldn't load pickup availability
Made to Order 5-10 days Lead Time
Carbon Fiber 1-3 Weeks
2019-2024 BMW M340i rwd G20/G21 2021-2024 M440i HD 1 Piece Carbon Fiber or Aluminum Driveshaft . BMW OEM Part Number: 26109488375, 26-10-9-488-375

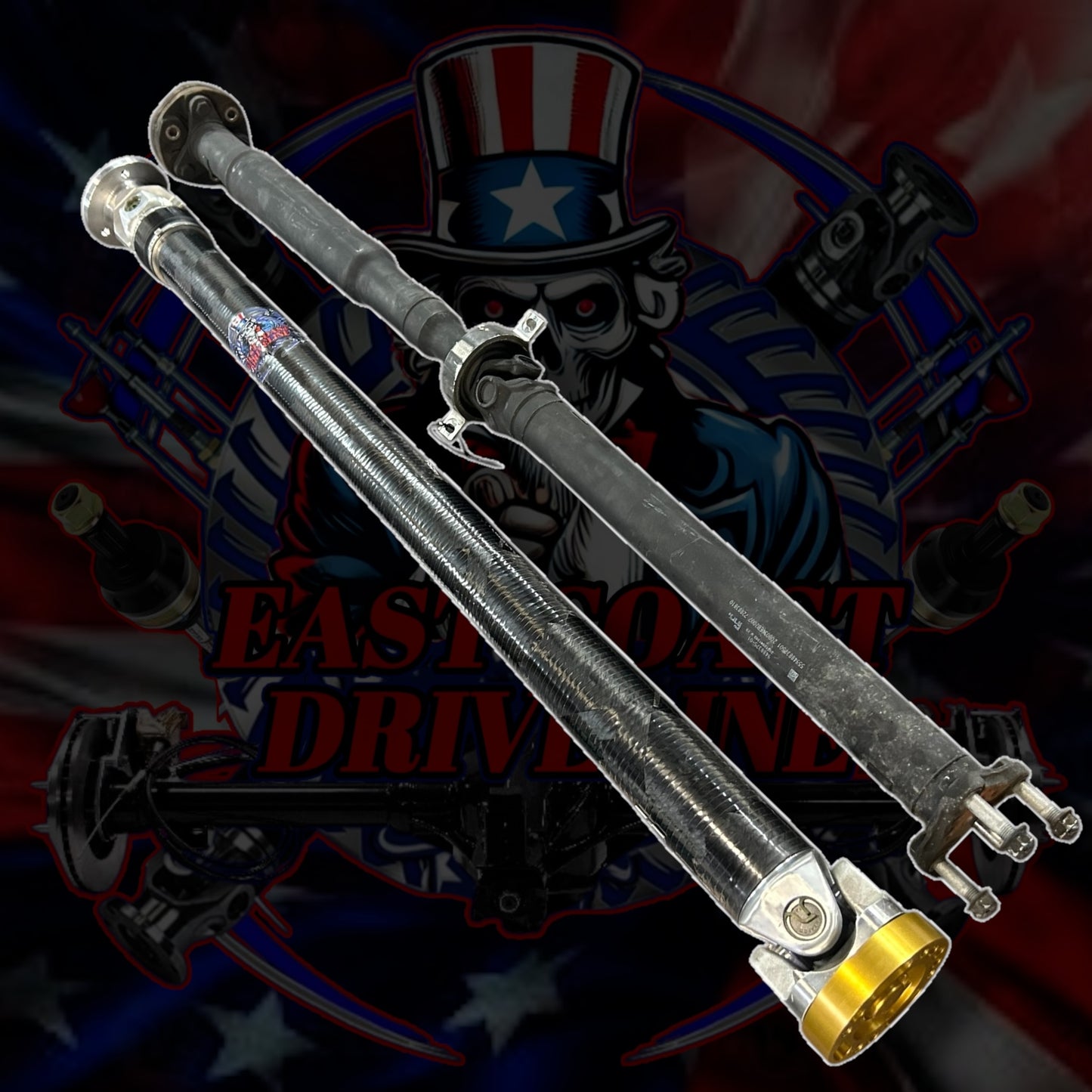

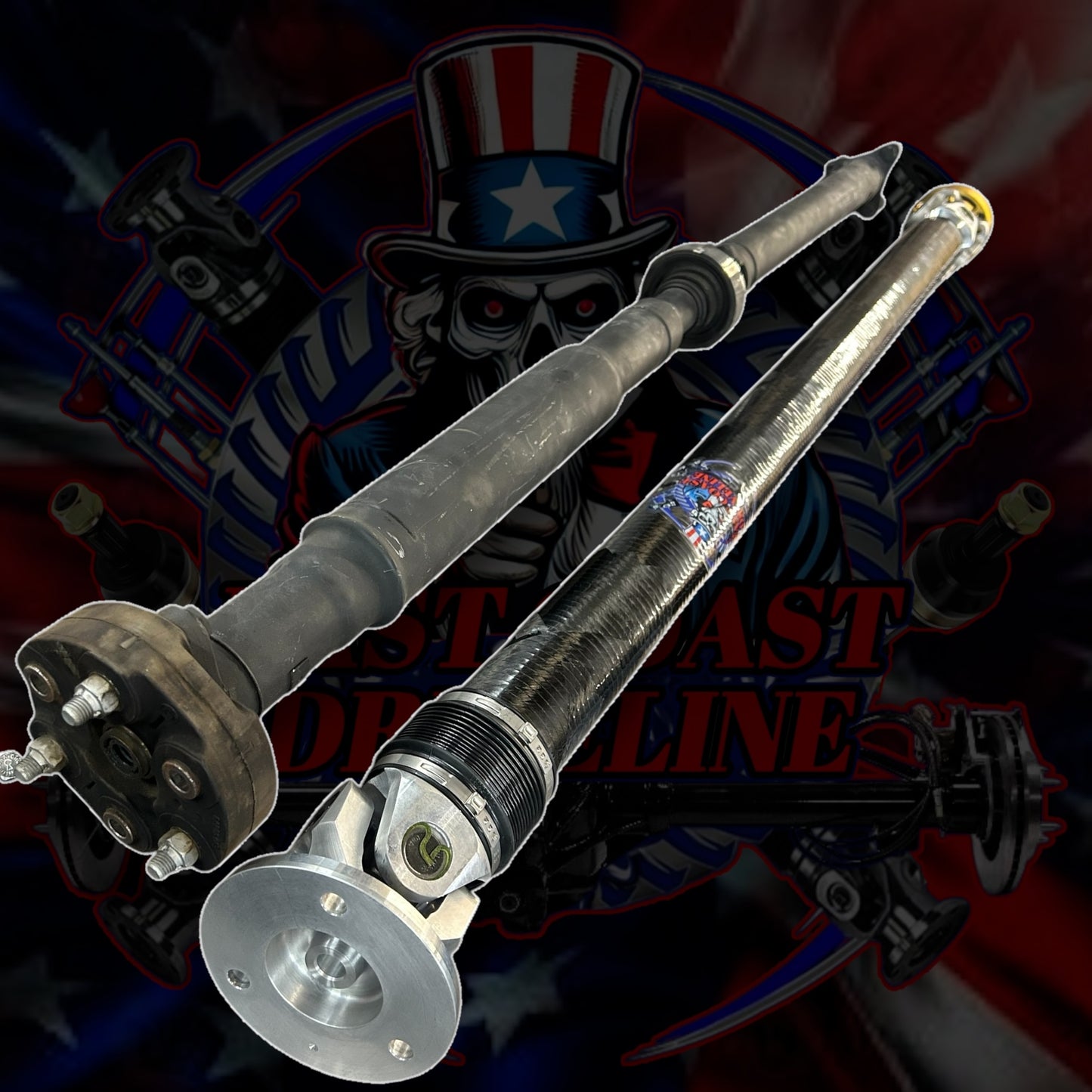

Replaces Stock 2 Piece Steel Driveshaft

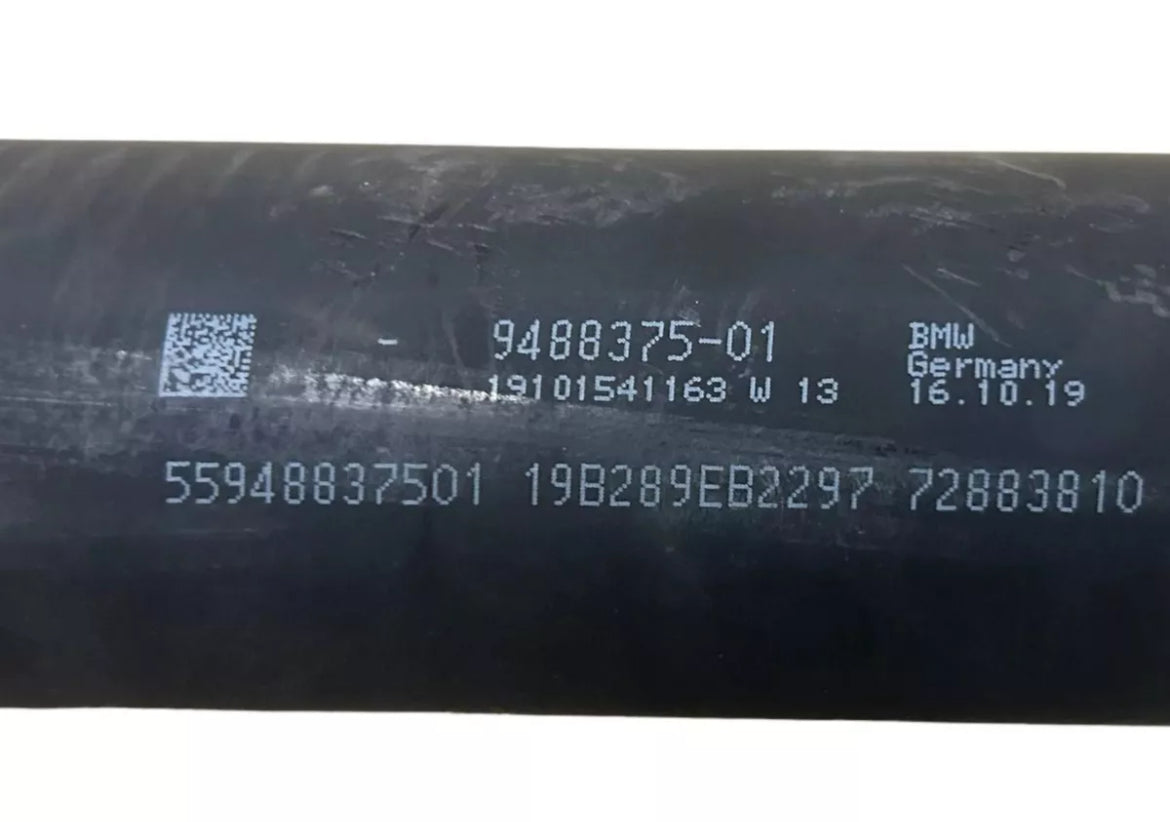

- SKU: 26-10-9-488-375
- Other Names: Drive Shaft, Drive Shaft 261010
- Description: M440i. M340i.
- L= 1528MM
- Fits M340i (2019 - 2024)

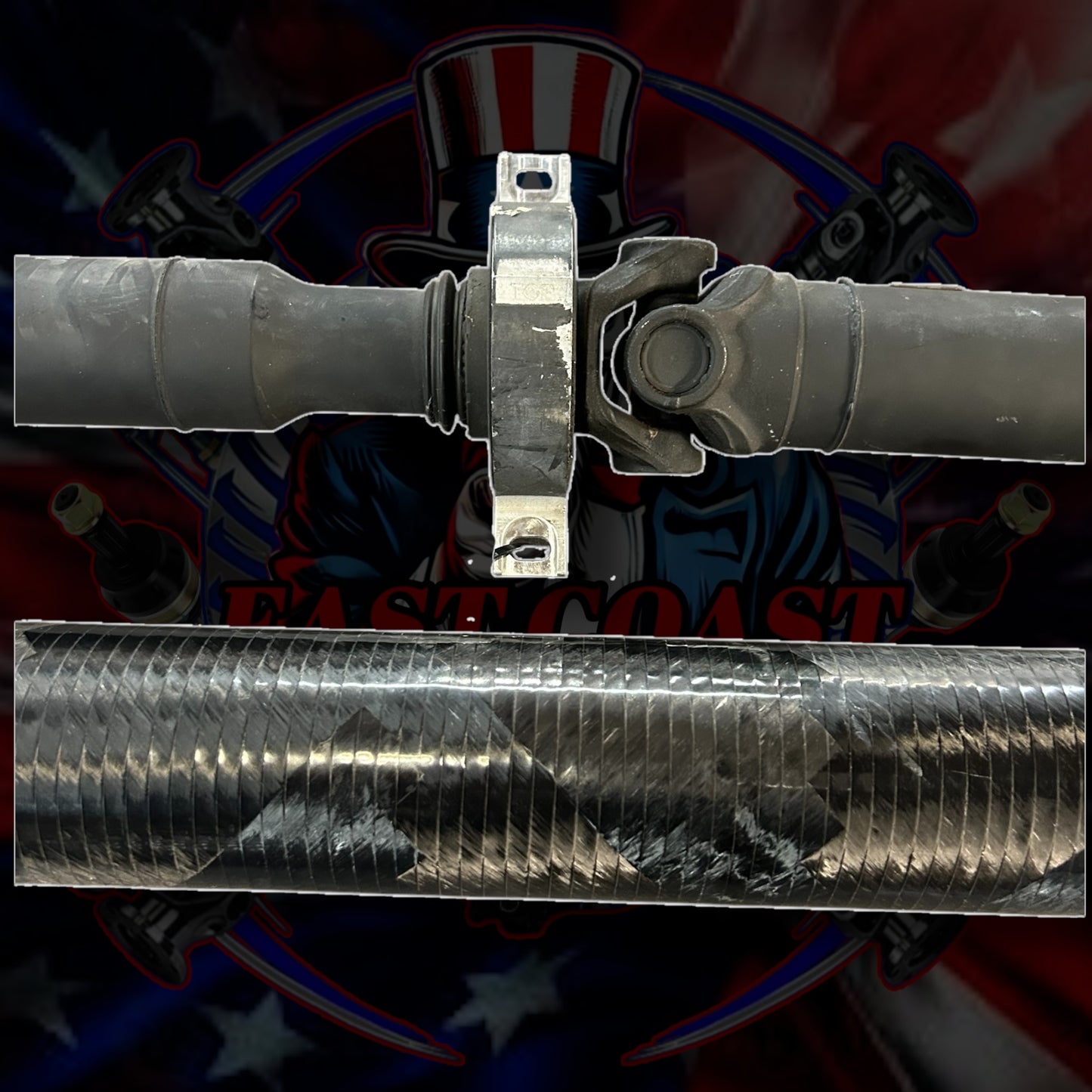

Much Stronger and Flexible Racing Style Driveshaft made to withstand high torque and horsepower. (Gets rid if the weak Rubber Coupler on Transmission, no more hanger bearing, Strengthens and coverts the Rear CVJ to aHD Flange and U-Joint Setup. May cause slight vibrations going from a 2 piece to a 1 Piece Driveshaft.

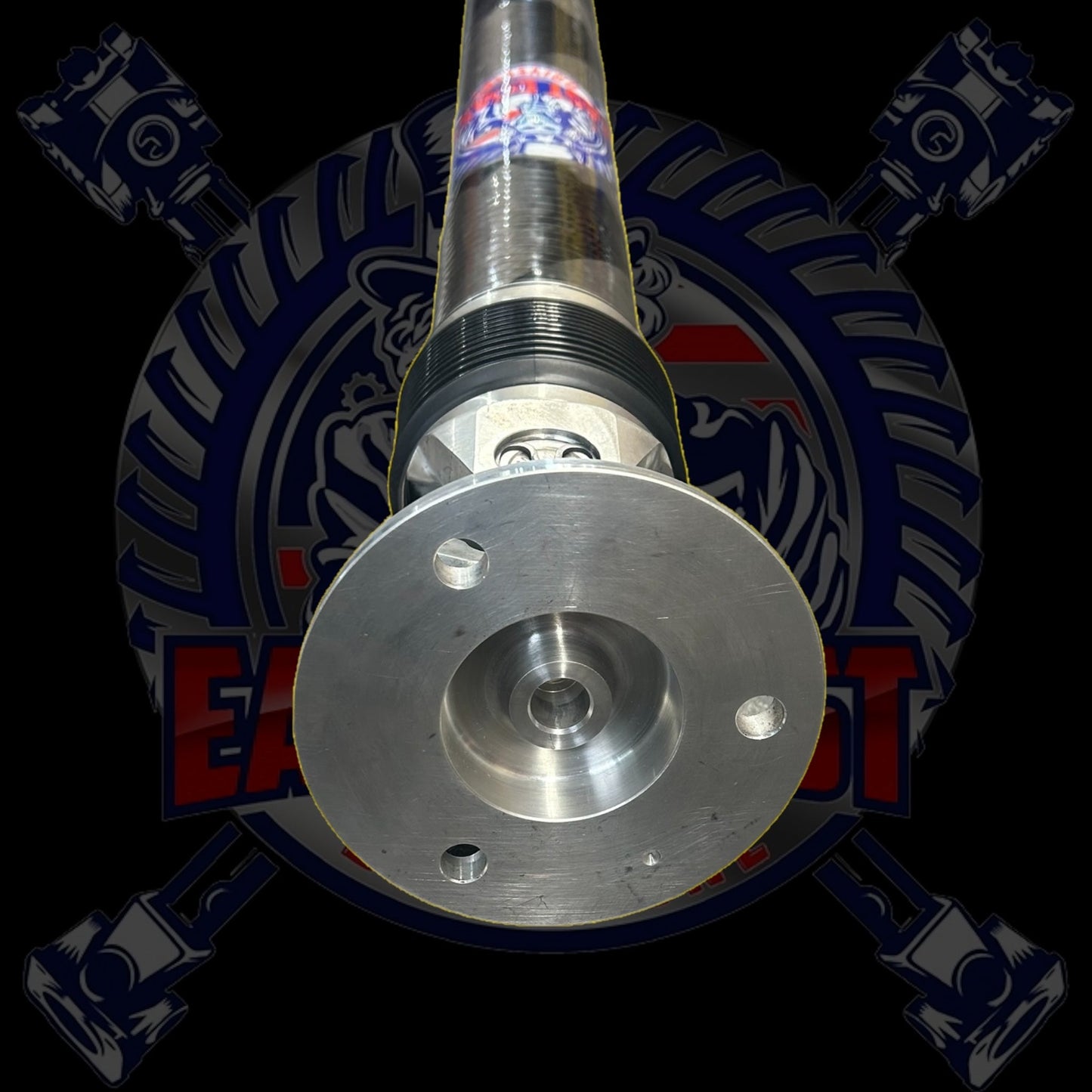

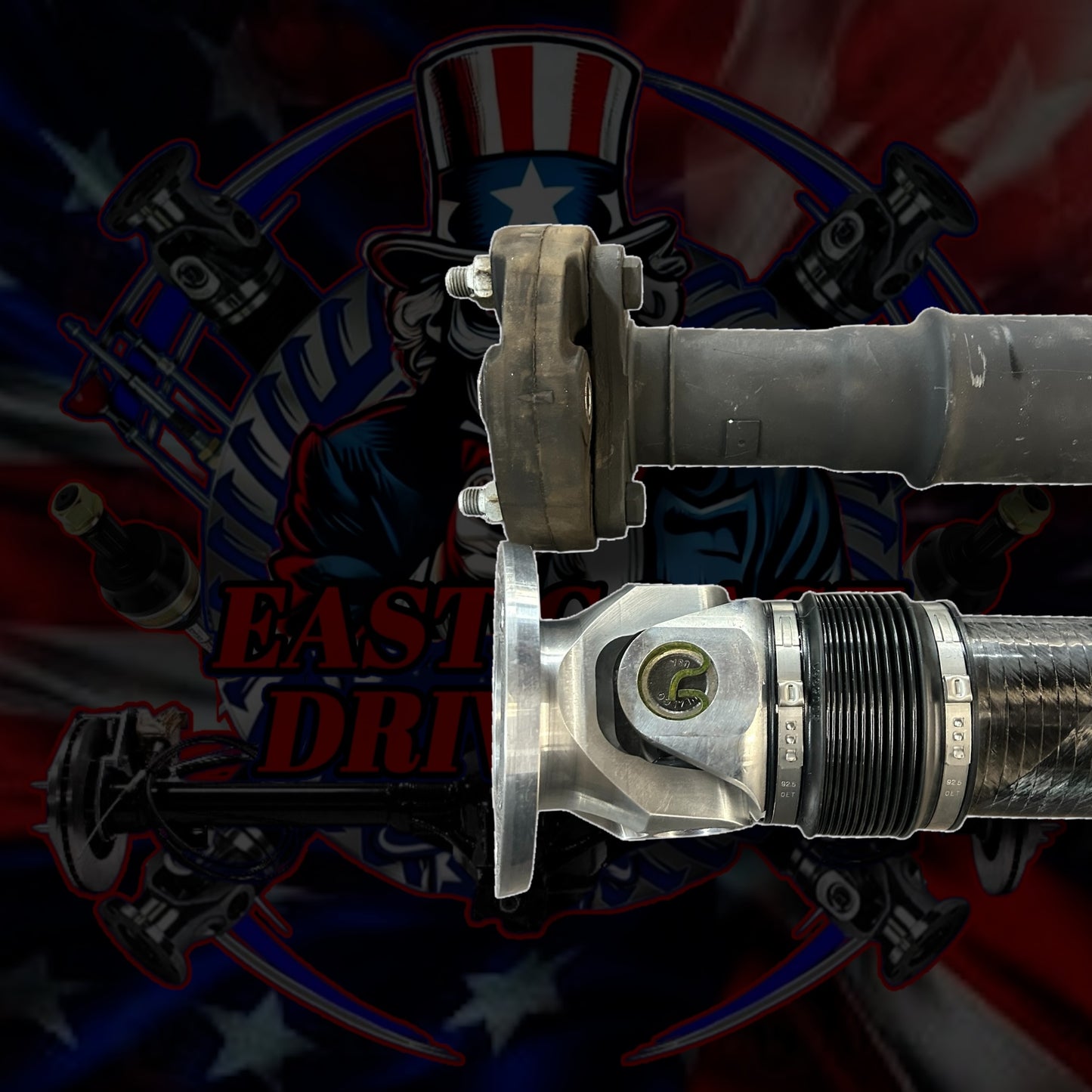

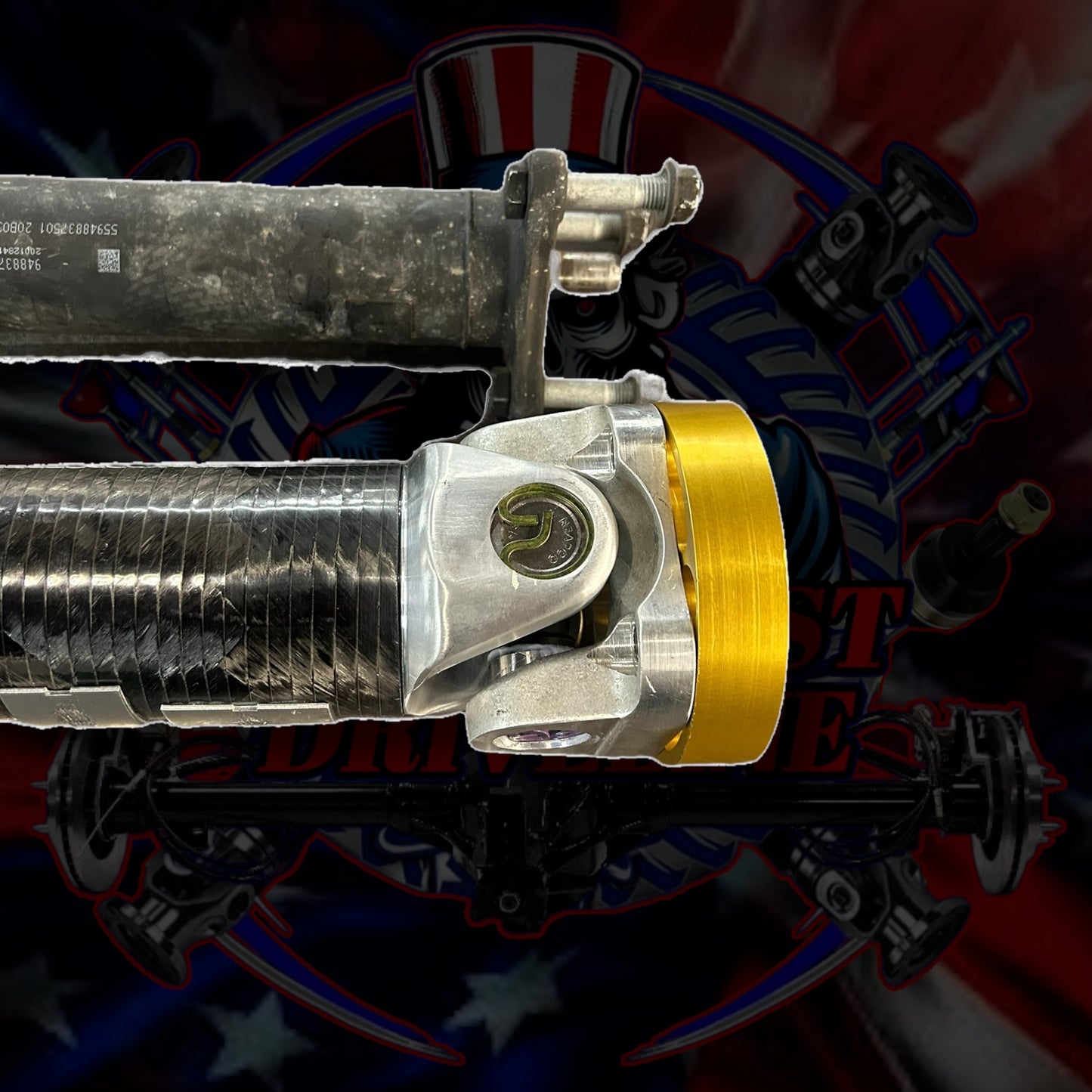

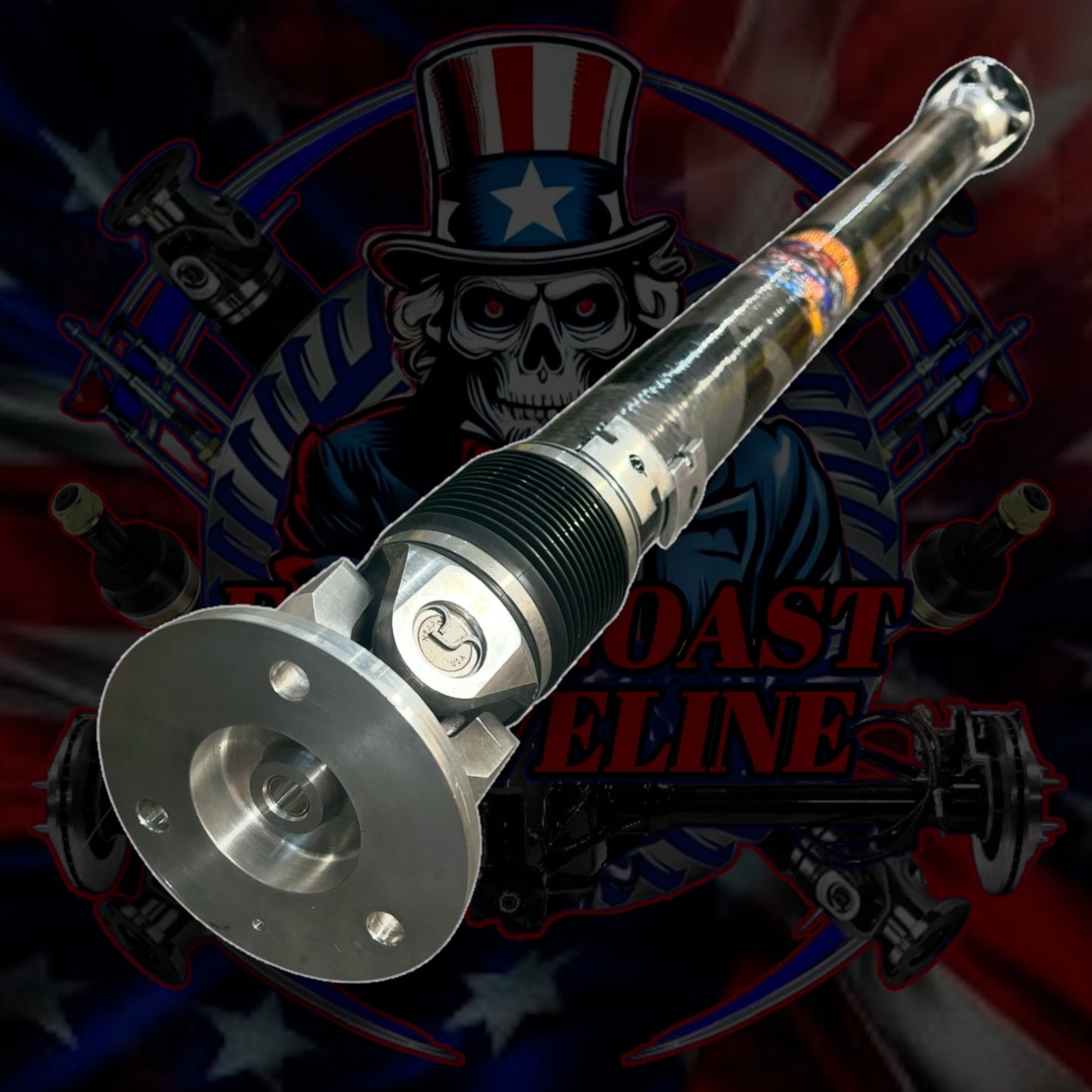

**Carbon Fiber driveshaft made with 3”ID x .125 or .155” wall Tubing, solid 1350 Series U-Joints and Direct mount Billet Aluminum Flange Yoke that replaces Front coupler. Billet Adapter plate and billet flange yoke replace rear coupler

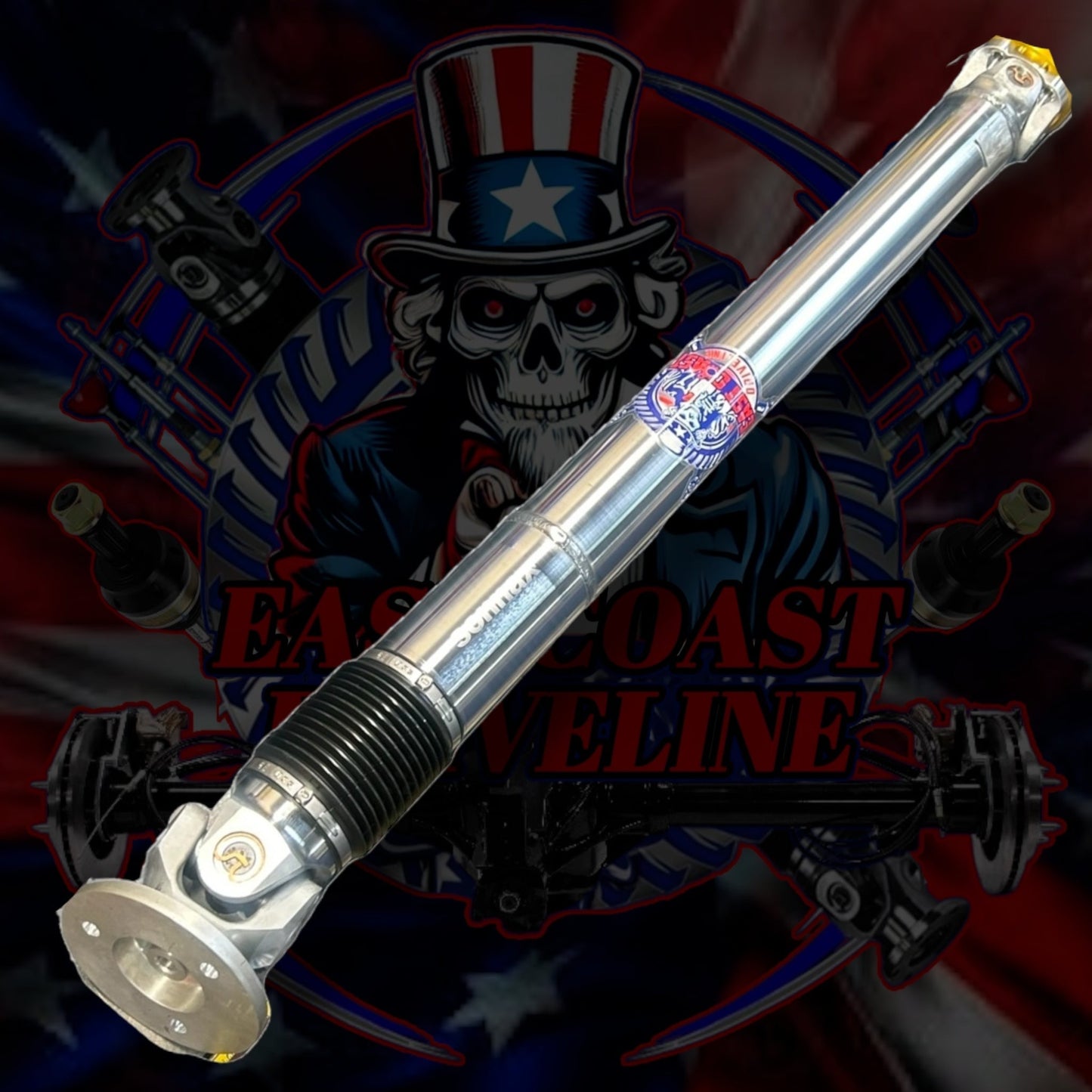

**Aluminum driveshaft made with 3.5”x .125” Tubing, solid 1350 Series U-Joints and Direct mount Billet Aluminum Flange Yoke that replaces Front coupler. Billet Adapter plate and billet flange yoke replace rear coupler
***Can also be made in 3.5x.155” Carbon Fiber (3.81”OD). MUST CHECK CLEARANCE!! GETTING RID OF 2 PIECE DRIVESHAFT AND INSTALLING A MORE SOLID 1 PIECE DRIVESHAFT MAY CAUSE VIBRATIONS!
3” x .125 wall is 3510 ft/lbs Critical torque and 9865 rpm critical driveshaft speed
3” x .155 wall is 5196 ft/lbs Critical torque and 9204 rpm Critical driveshaft speed
3.5” x .155 wall is 6245 ft/lbs critical torque and 10,659 rpm critical driveshaft speed
VEHICLE FITMENT
| Year | Make | Model | Body & Trim | Engine & Transmission |
|---|---|---|---|---|
| 2024 | BMW | M340i | Base | 3.0L L6 - Gas |
| 2024 | BMW | M440i | Base | 3.0L L6 - Electric/Gas |
| 2024 | BMW | M440i Gran Coupe | Base | 3.0L L6 - Electric/Gas |
| 2023 | BMW | M340i | Base | 3.0L L6 - Gas |
| 2023 | BMW | M440i | Base | 3.0L L6 - Electric/Gas, 3.0L L6 - MILD HYBRID EV-GAS (MHEV) |
| 2023 | BMW | M440i Gran Coupe | Base | 3.0L L6 - Electric/Gas |
| 2022 | BMW | M340i | Base | 3.0L L6 - Gas |
| 2022 | BMW | M440i | Base | 3.0L L6 - Electric/Gas, 3.0L L6 - MILD HYBRID EV-GAS (MHEV) |
| 2022 | BMW | M440i Gran Coupe | Base | 3.0L L6 - Electric/Gas |
| 2021 | BMW | M340i | Base | 3.0L L6 - Gas |
| 2021 | BMW | M440i | Base | 3.0L L6 - Electric/Gas, 3.0L L6 - MILD HYBRID EV-GAS (MHEV) |
| 2020 | BMW | M340i | Base | 3.0L L6 - Gas |
CUSTOMER IS RESPONSIBLE FOR CHECKING CLEARANCE IN TUNNEL FOR DRIVESHAFT ORDERED. ANY DAMAGE DONE TO DRIVESHAFT FROM HEAT SHIELD, EXHAUST, TANK, BOLTS, etc VOIDS ALL WARRANTY ON CUSTOM MADE TO ORDER DRIVESHAFT.
ALL SALES ARE FINAL. CUSTOM MADE TO ORDER DRIVESHAFTS CANNOT BE RETURNED AND WILL BE NO REFUNDS.
