2020-2024 BMW M3 /M4 xDrive AWD G80 G82 G83 HD 1 Piece Carbon Fiber or Aluminum Driveshaft. BMW OEM 26-10-7-908-448, 26107908448, 26-10-9-501-826, 26109501826
2020-2024 BMW M3 /M4 xDrive AWD G80 G82 G83 HD 1 Piece Carbon Fiber or Aluminum Driveshaft. BMW OEM 26-10-7-908-448, 26107908448, 26-10-9-501-826, 26109501826
Couldn't load pickup availability
Made to Order 1 - 2 Weeks lead to build and ship
2020-2024 BMW M3 /M4 xDrive AWD G80 G82 G83 HD 1 Piece Carbon Fiber or Aluminum Driveshaft. BMW OEM 26-10-7-908-448, 26107908448, 26-10-9-501-826, 26109501826
Made in either 3.5”x.125” HD Aluminum, 3.0”x.125” Carbon Fiber (3.25”OD), or 3.0”x.155” Carbon Fiber (3.31”OD). Both made with Billet Aluminum 105mm Transmission Adapter plate and U-Joint Flange Yoke. Rear 27 Spline Custom made Yoke.
****MUST SHIP REAR SECTION OF ORIGINAL DRIVESHAFT FOR CUSTOM CONVERSION YOKE TO BE MADE FOR DIFFERENTIAL****

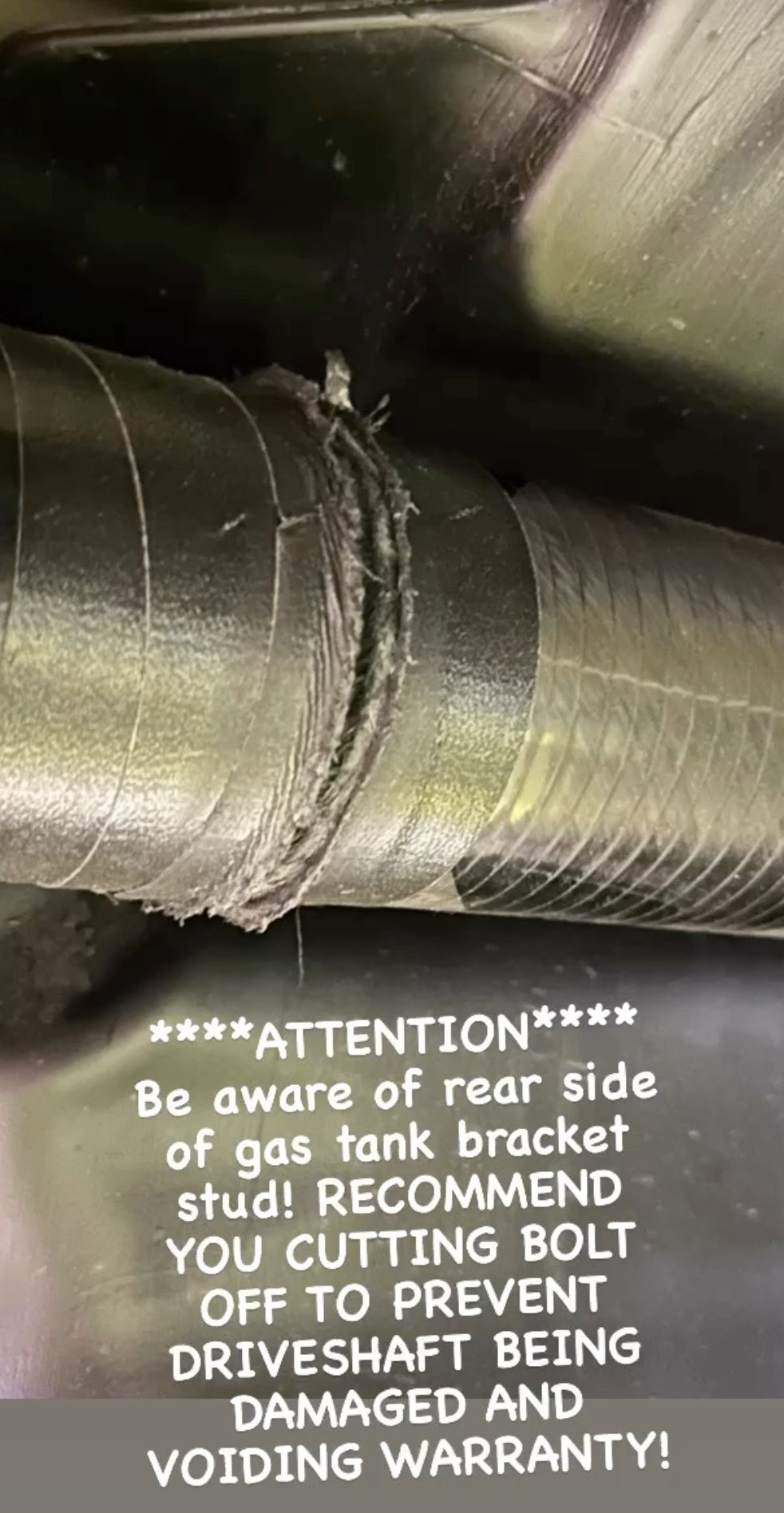

****ATTENTION**** Be aware of rear side of gas tank bracket stud! RECOMMEND YOU CUTTING BOLT OFF TO PREVENT DRIVESHAFT BEING DAMAGED AND VOIDING WARRANTY!
OAL length is 52.402” or 1331mm
SKU: 26-10-7-908-448
Description:
M4, awd. Awd, without hybrid, with M3.
Replaces: 26-10-9-501-826
<head><meta charset="UTF-8" /></head>
VEHICLE FITMENT
| Year | Make | Model | Body & Trim | Engine & Transmission |
|---|---|---|---|---|
| 2024 | BMW | M3 | CS, Competition xDrive | 3.0L L6 - Gas |
| 2024 | BMW | M4 | CSL, Competition, Competition xDrive | 3.0L L6 - Gas |
| 2023 | BMW | M3 | Competition xDrive | 3.0L L6 - Gas |
| 2023 | BMW | M4 | CSL, Competition, Competition xDrive | 3.0L L6 - Gas |
| 2022 | BMW | M3 | Competition xDrive | 3.0L L6 - Gas |
| 2022 | BMW | M4 | Competition, Competition xDrive | 3.0L L6 - Gas |
| 2021 | BMW | M4 | Competition xDrive | 3.0L L6 - |

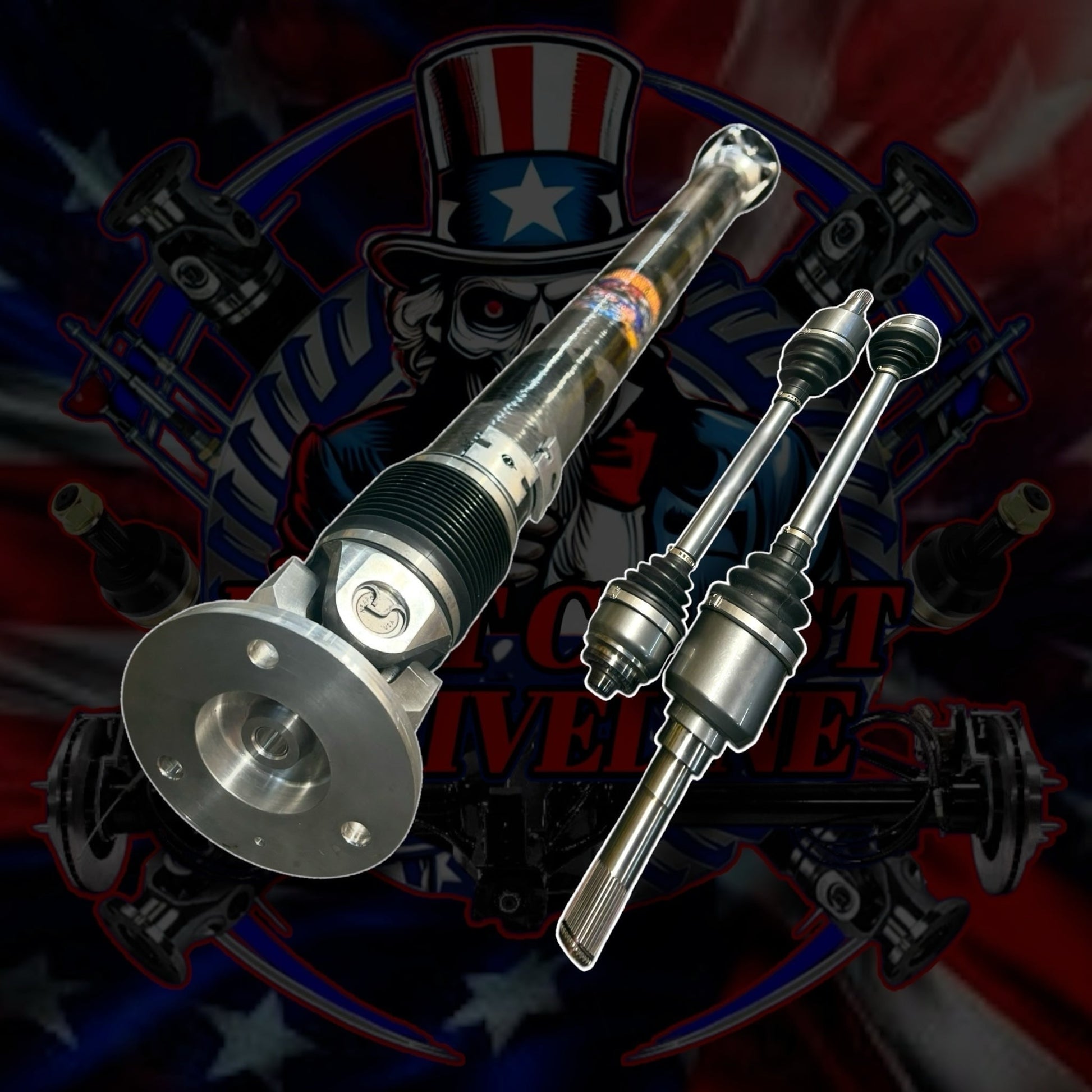

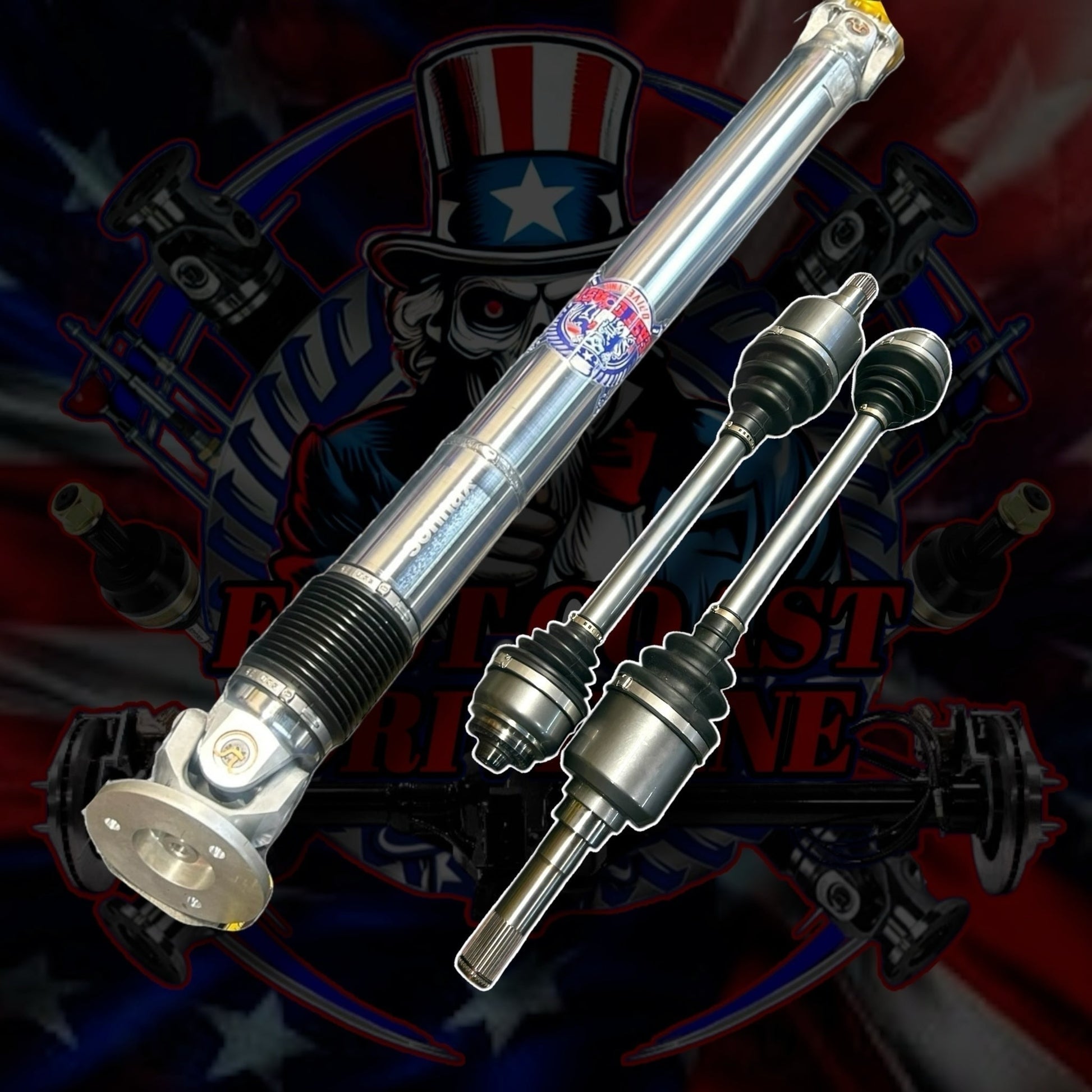

MAKE IT A KIT WITH NEW CHROMOLY AXLES.
Much Stronger and Flexible Racing Style Driveshaft made to withstand high torque and horsepower. (Gets rid if the weak Rubber Coupler on Transmission, no more hanger bearing, Strengthens and coverts the Rear CVJ to a HD Flange and U-Joint Setup

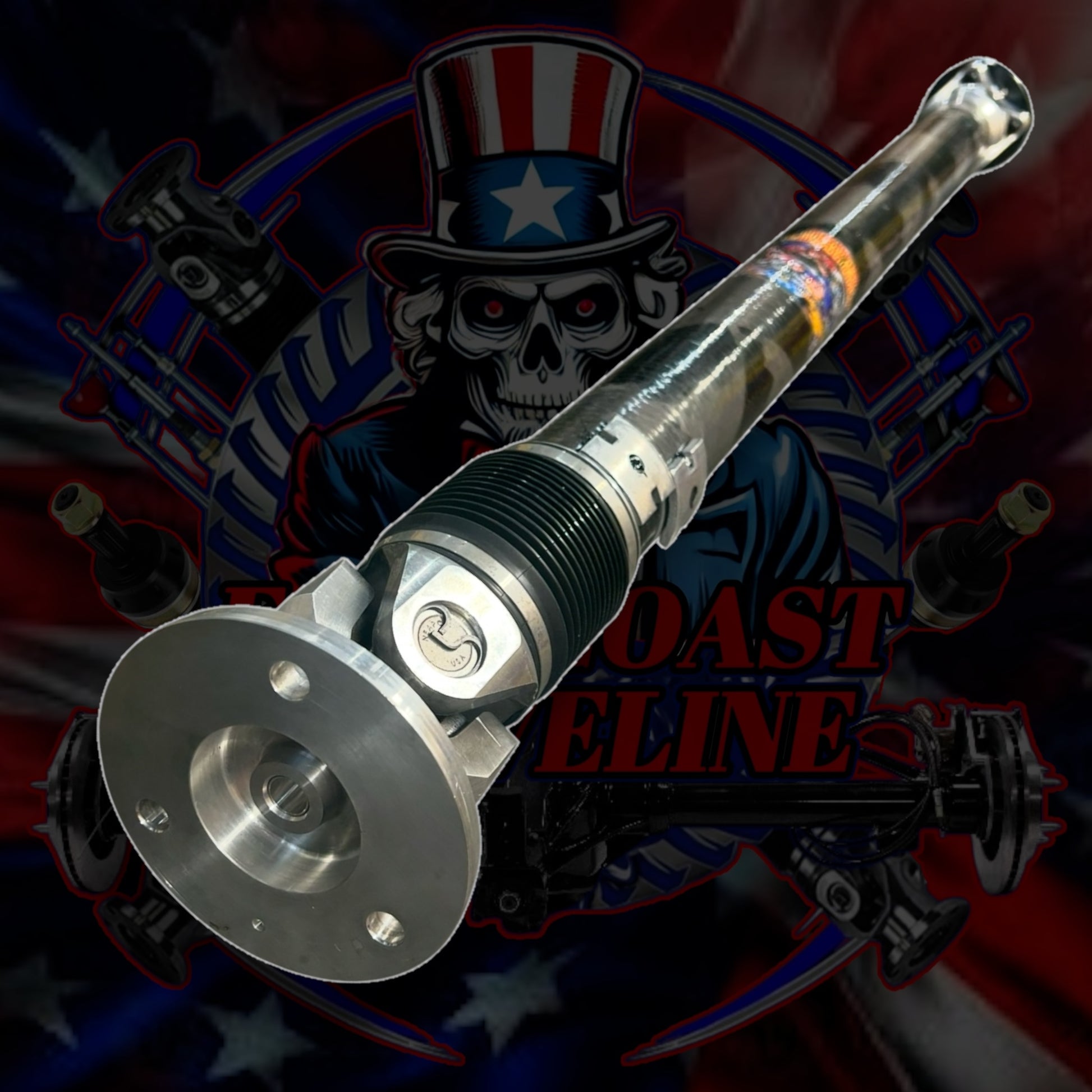

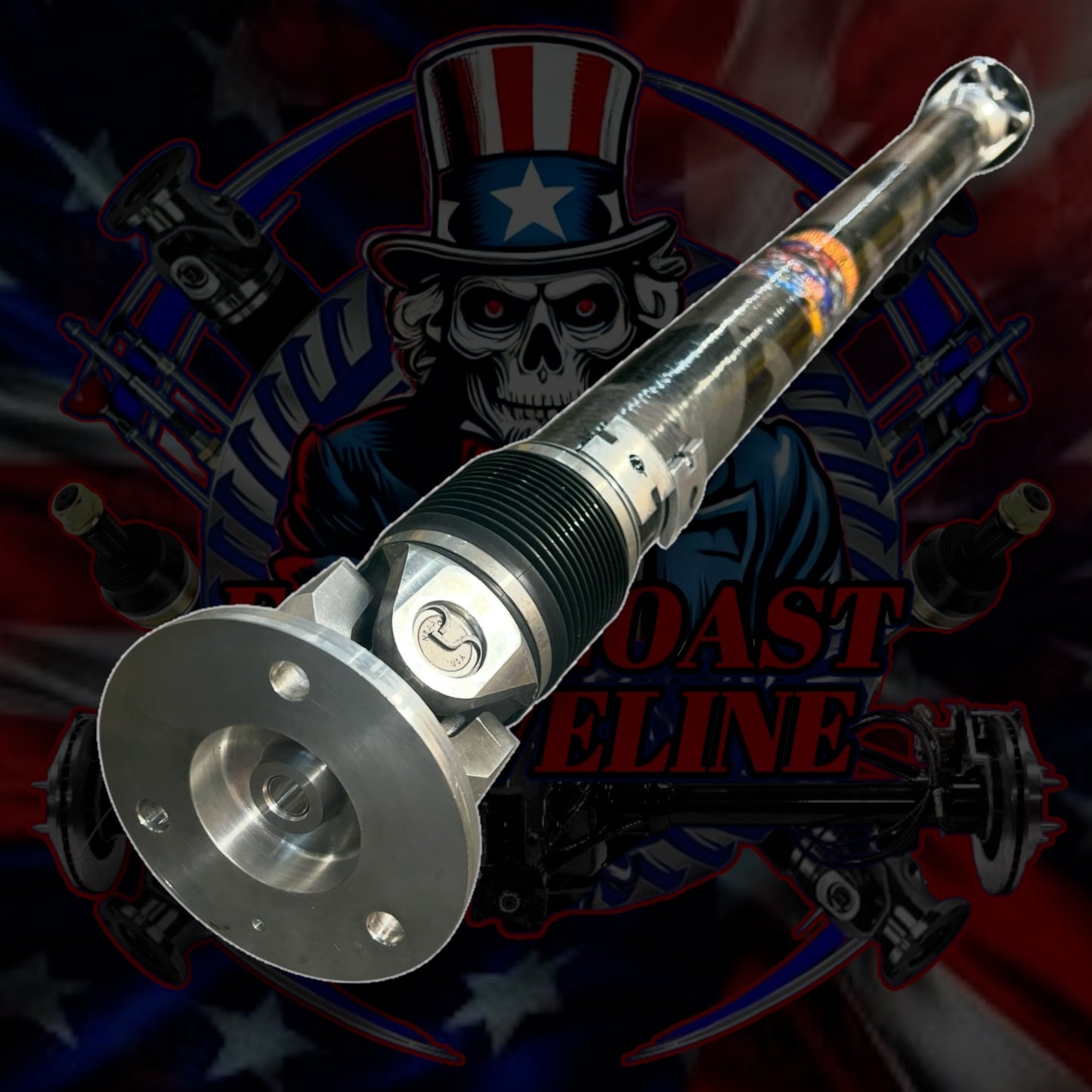

**Carbon Fiber driveshaft made with 3”ID x .125” Tubing, solid 1350 Series U-Joints and Billet Aluminum Flange Yokes with Front coupler delete Adapter. Custom Made Differential Adapter with spline and threads.

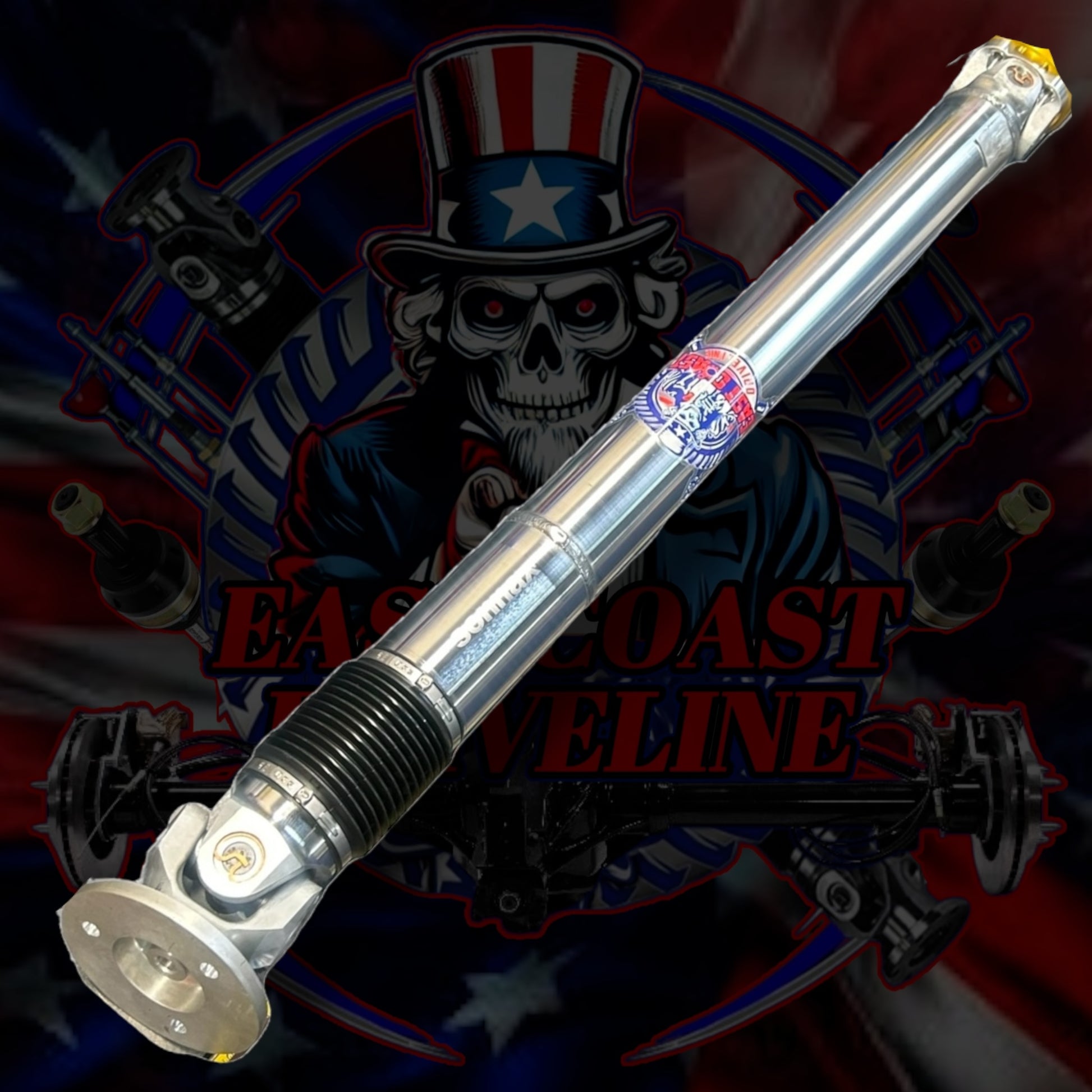

**Aluminum driveshaft made with 3.5”x .125” Tubing, solid 1350 Series U-Joints and Billet Aluminum Flange Yokes with Front coupler delete Adapter. Custom Made Differential Adapter with spline and threads.

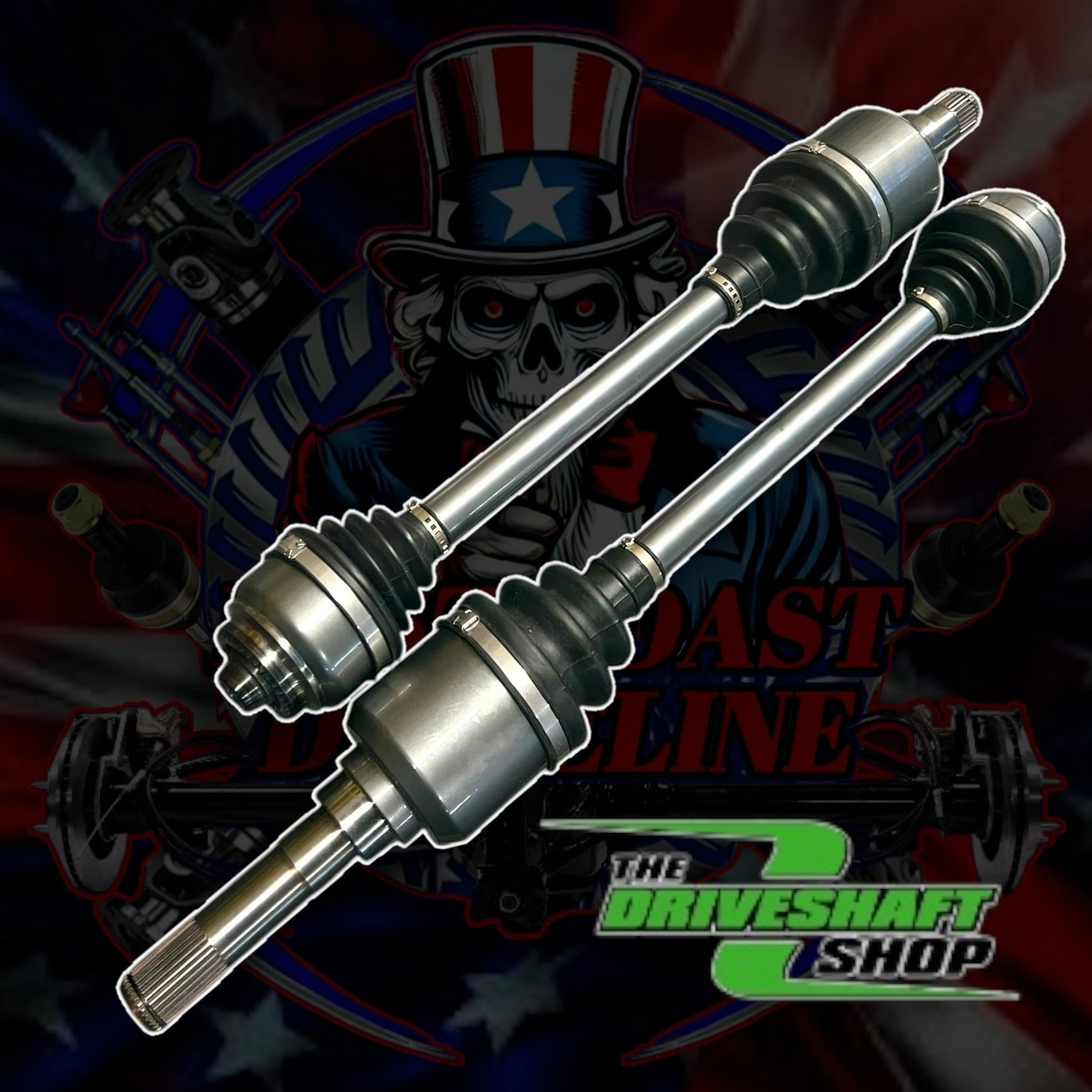

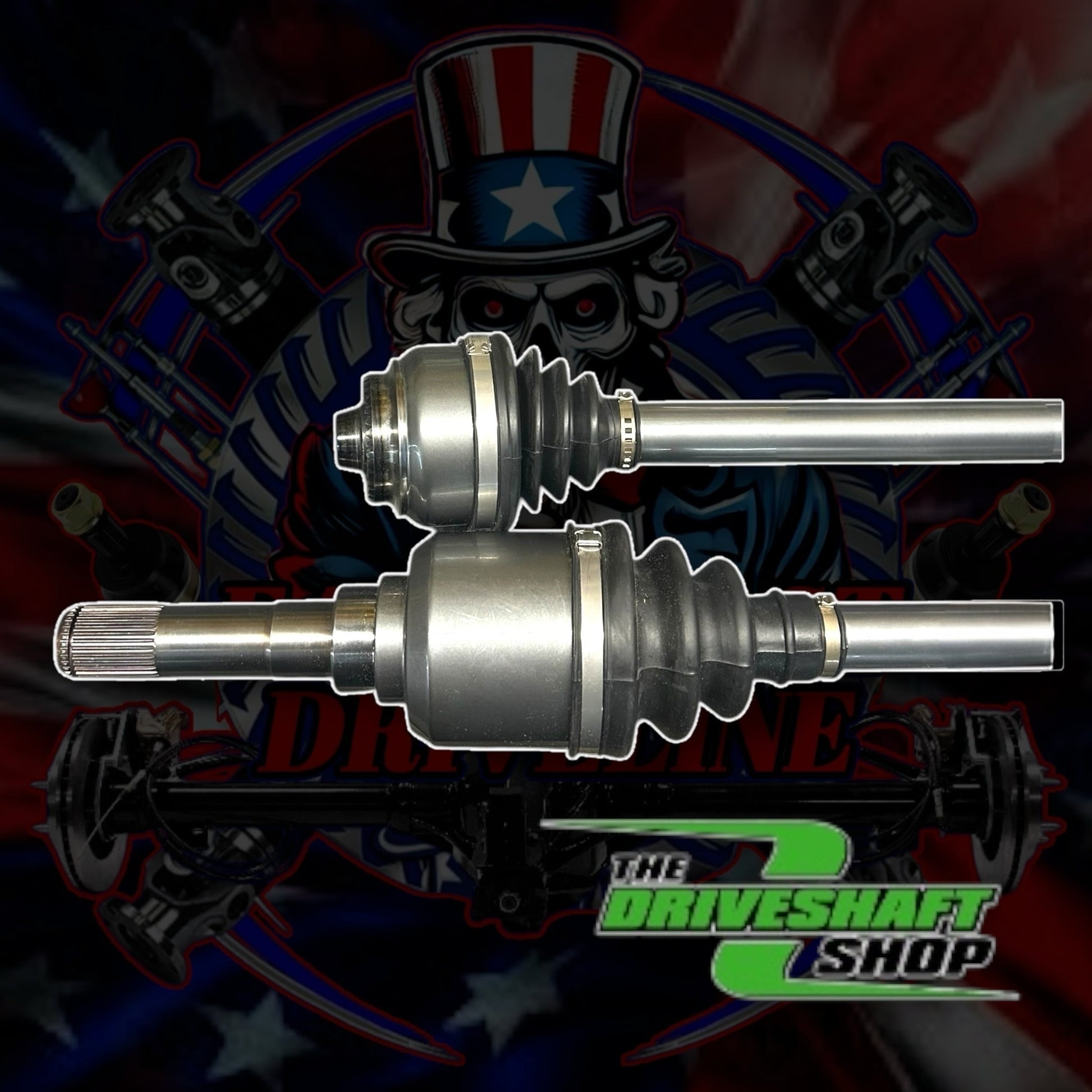

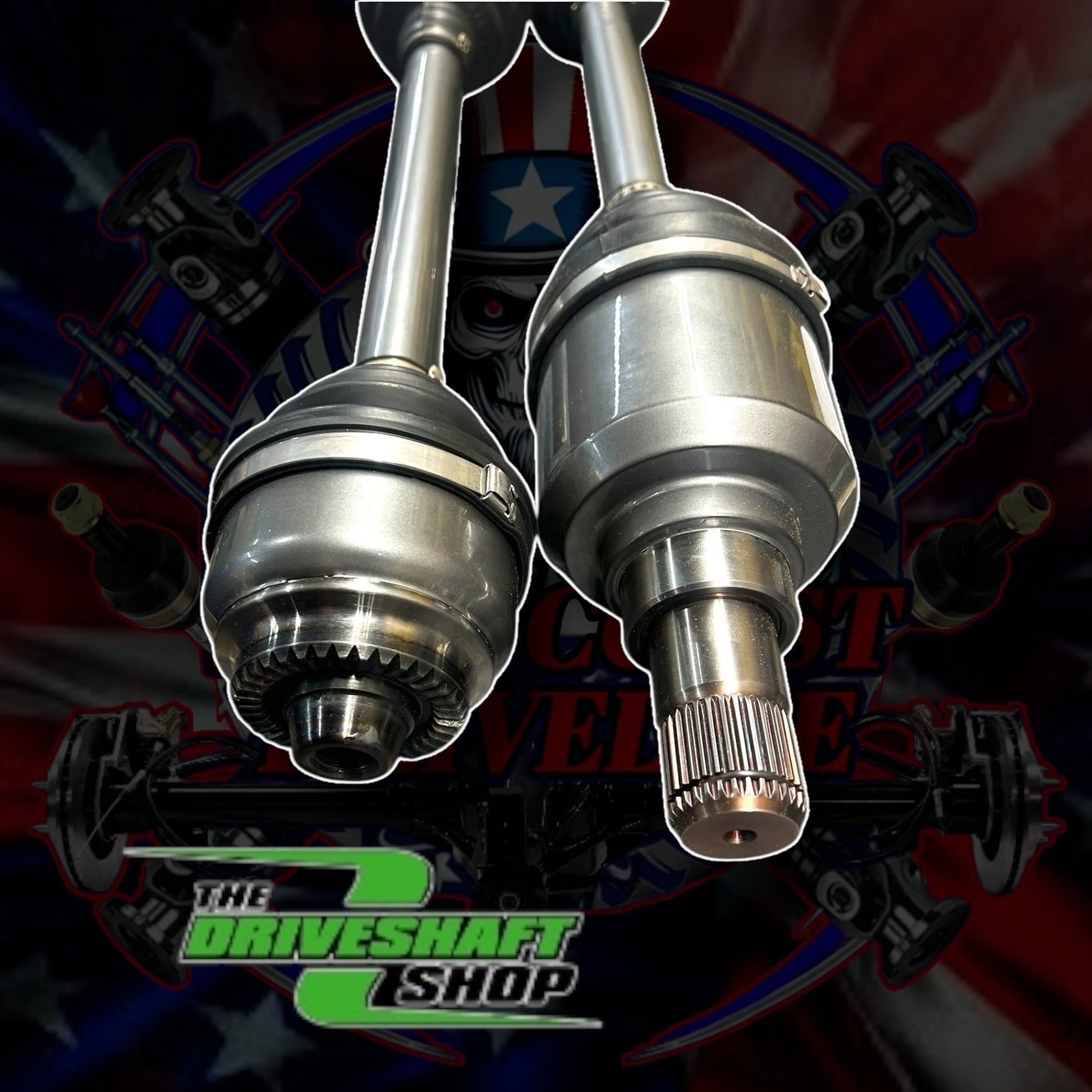

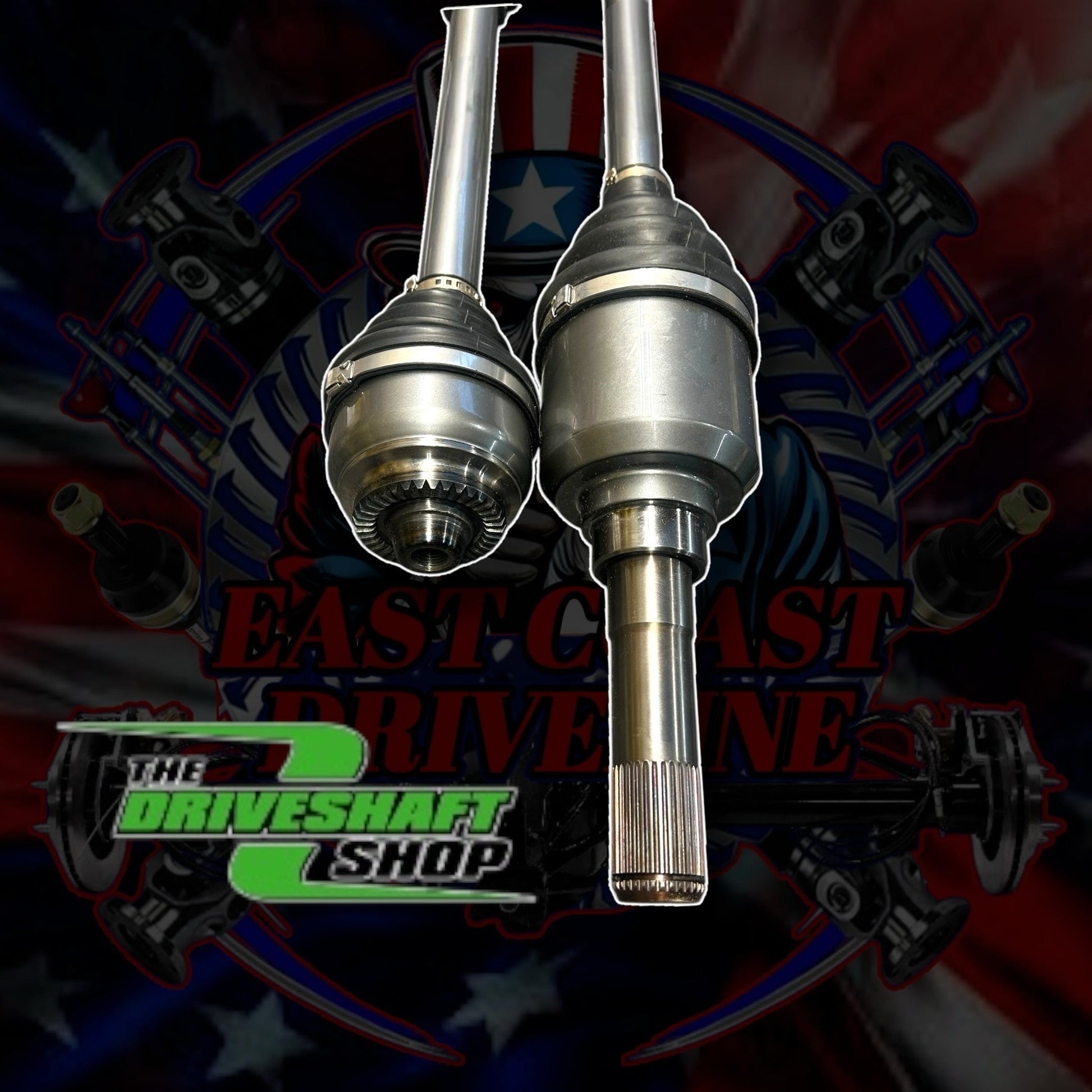

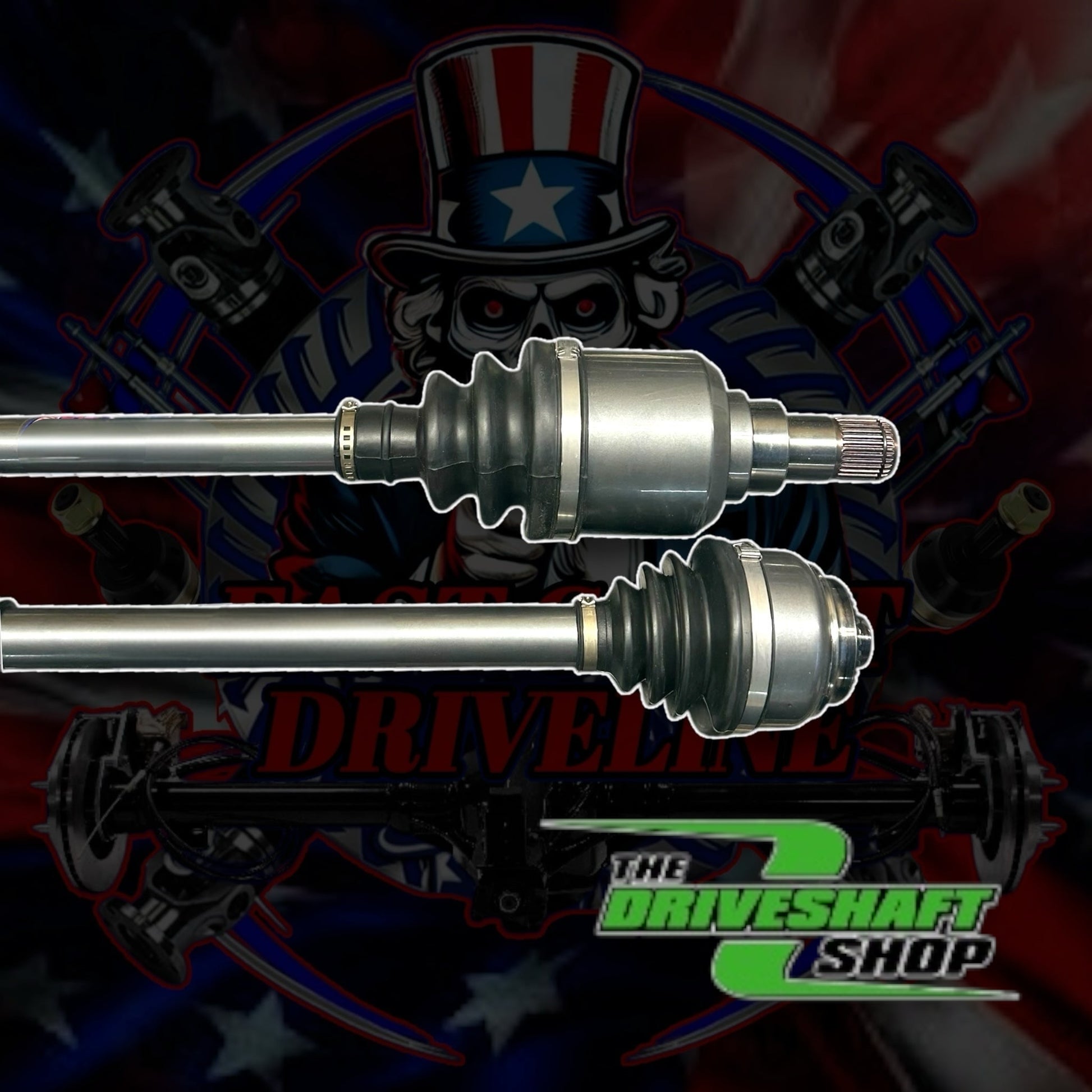

2020-2023 G80/G82/G83 BMW M3 UPGRADED AXLES : Full Chromoly Inner CV Housings with Billet Internals, 300M Axle Bars and 300M Differential Splined Plugs and 8-ball Forged Outer CV housings with specially Heat Treated Hub Splines to ensure that these axles will fit like stock while handling everything you throw at them, from the Modded Daily driver to hardcore 1200HP+ Race Cars!
DRIVESHAFT AND AXLES are non-refundable after installation
PLEASE NOTE: These shafts are balanced as an assembly, and should add NO additional vibrations.
HOWEVER, This upgrade changes ALL the factory Guibos to solid aluminum versions. This CAN cause some drivetrain vibrations at certain RPMS, usually at certain speeds on decel. This is normal and can range from very mild to severe if any of the other drivetrain pieces are not in perfect alignment. We recommend Medium Threadlocker be used on all bolts and is included. Also, be aware, these shafts ARE LARGER in diameter than stock. You MUST ensure nothing is rubbing on the shaft after installation. We cannot be responsible for damage to shafts if clearance is not checked.
