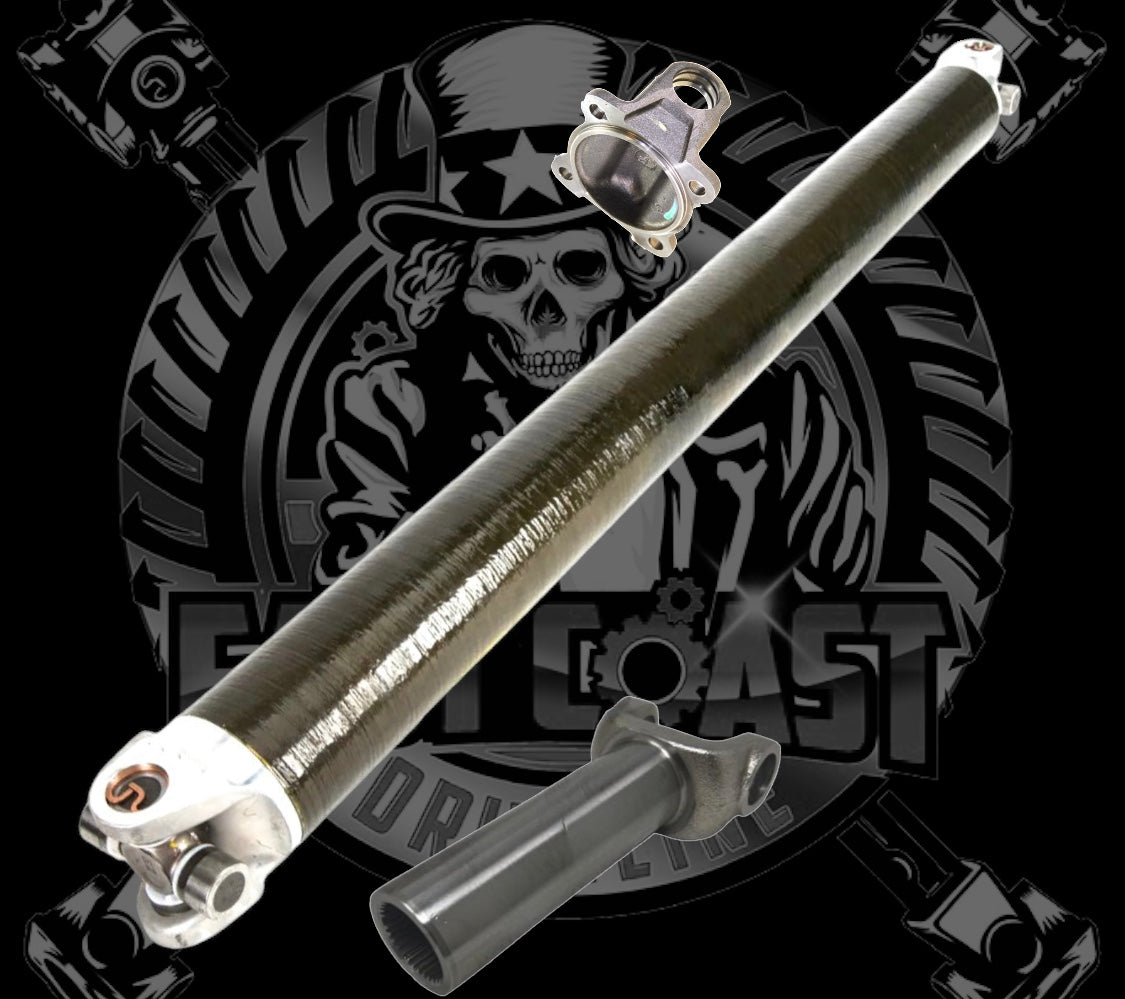

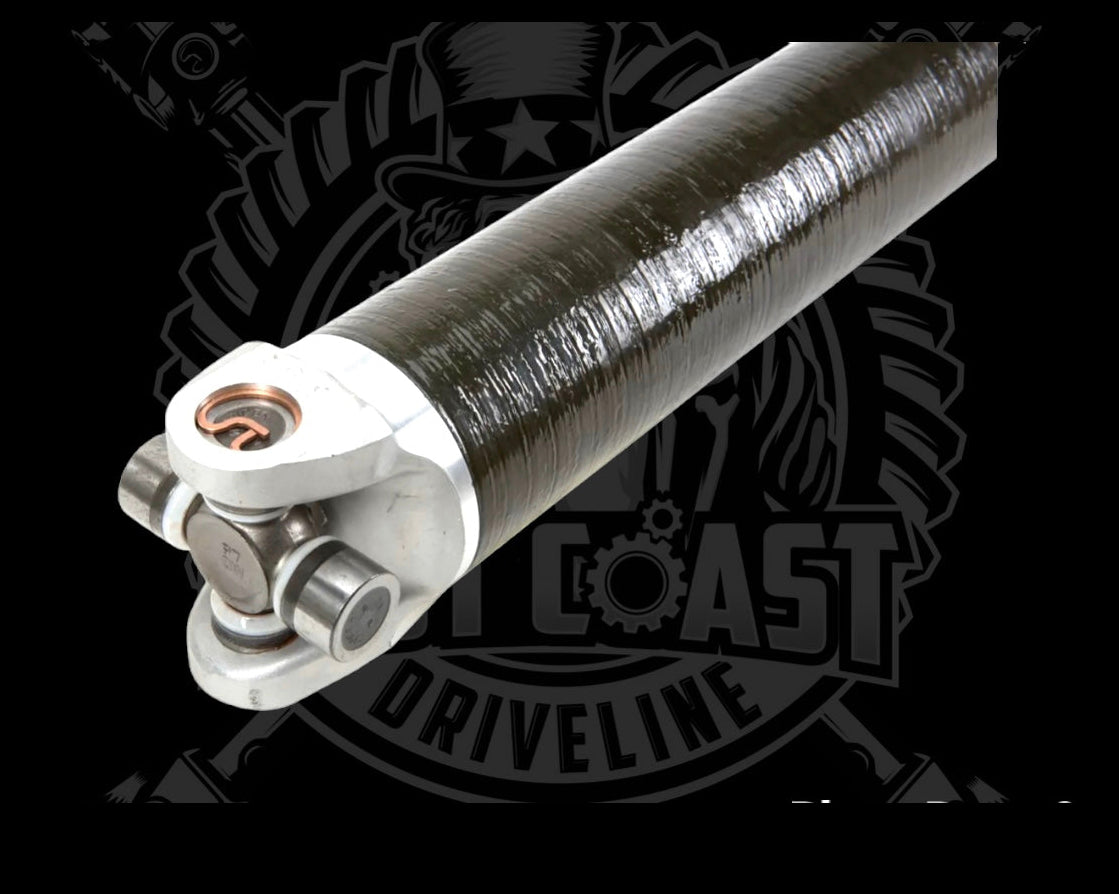

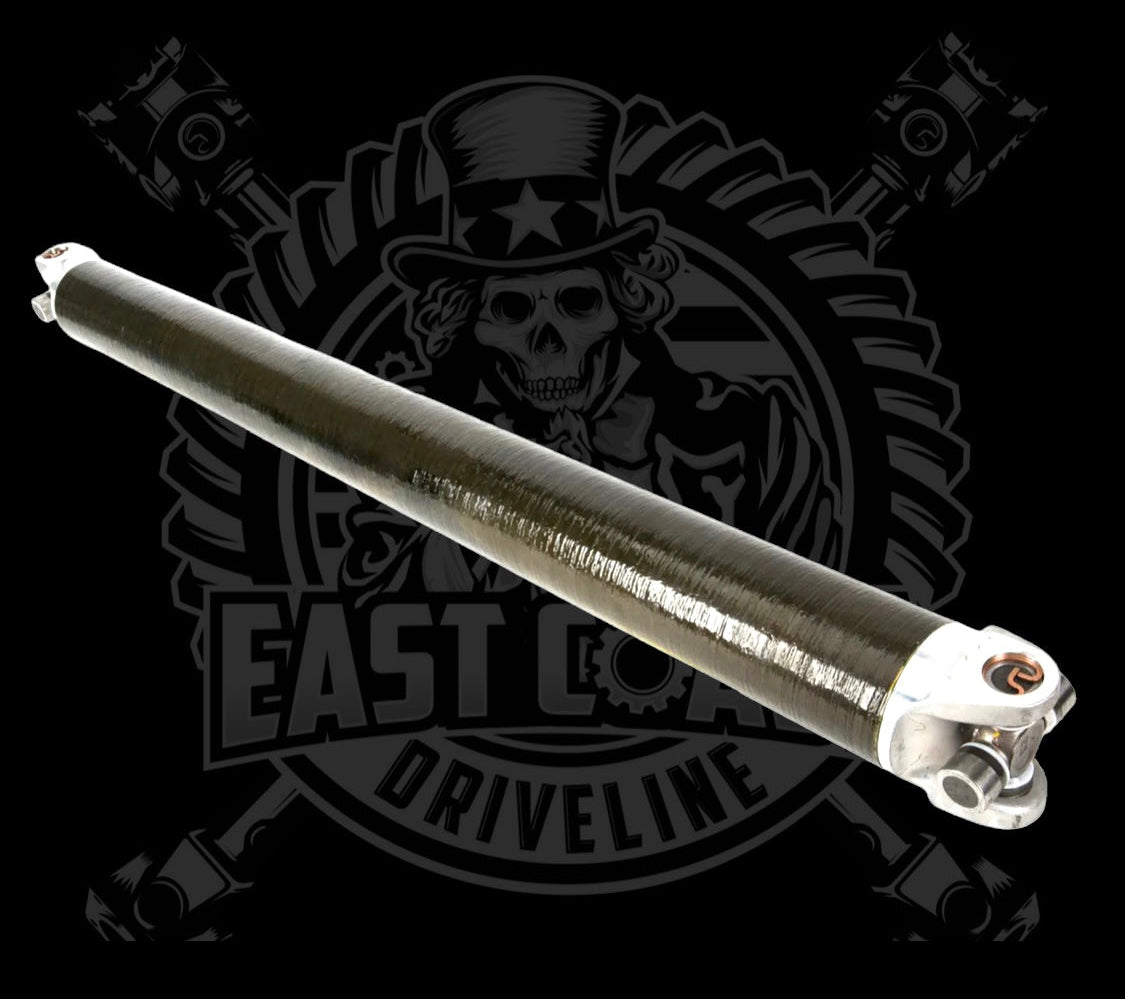

Custom Length 1480 Series HD Carbon Fiber Driveshaft 4”IDx.125”

Made to Order 1-2 Weeks Lead Time to Build and Ship Out

MUST PROVIDE MEASUREMENT OFF ORIGINAL DRIVESHAFT OR VEHICLE.

**MEASURE FROM CENTER U-JOINT - CENTER U-JOINT OFF ORIGINAL DRIVESHAFT IF ORDERING DRIVESHAFT WITHOUT SLIP YOKE AND FLANGE.

**MEASURE FROM TIP OF TRANSFER CASE SEAL TO FLAT OF REAR FLANGE YOKE WHILE TRUCK IS AT RIDE HEIGHT IF ORDERING DRIVESHAFT WITH NEW SLIP YOKE AND FLANGE (DODGE DIESEL PICKUP TRUCKS)

For Custom Dodge Ram Diesel Shaft

TRANSFER CASE SLIP YOKE:

Spline Ct: 32/34

Spline Dia: 1.750

Hub Dia: 2.300

C/L to End: 9.551

C/L to Washer: 1.500

 Vented: No

REAR FLANGE YOKE :

Pilot Type: Male

Pilot Dia: 3.750

Bolt Cir Dia: 4.750 Square Pattern

Bolt Hole Ct: 4

Bolt Hole Dia: 0.500

C/L to Face: 2.250

Swing Dia: 5.875
