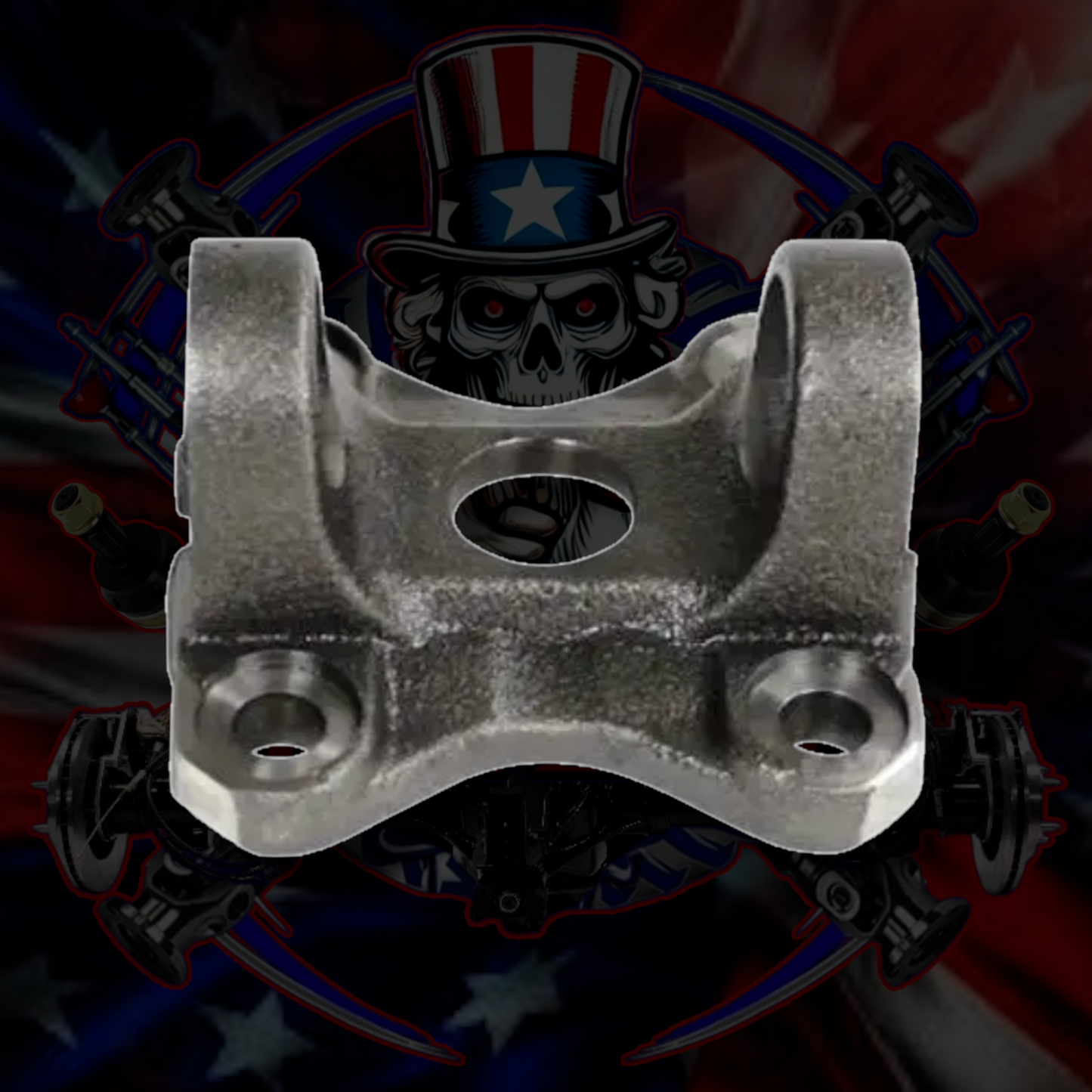

Nisan Titan 2007-2015 4WD Rear Flange Yoke. 1350 Series

Nisan Titan 2007-2015 4WD Rear Flange Yoke. 1350 Series

• Pilot diameter- 2.560 inches Female
• Swing diameter- 5.25 inches
• Bolt hole circle diameter- 4.25 inches.
• Length- 1.618 inches from the flat of the flange to the center of the universal joint
• Bolt holes- 0.500 inches in diameter, drilled but not threaded.

This yoke requires a 1350 Series universal joint and is compatible with various assemblies manufactured by Spicer.
