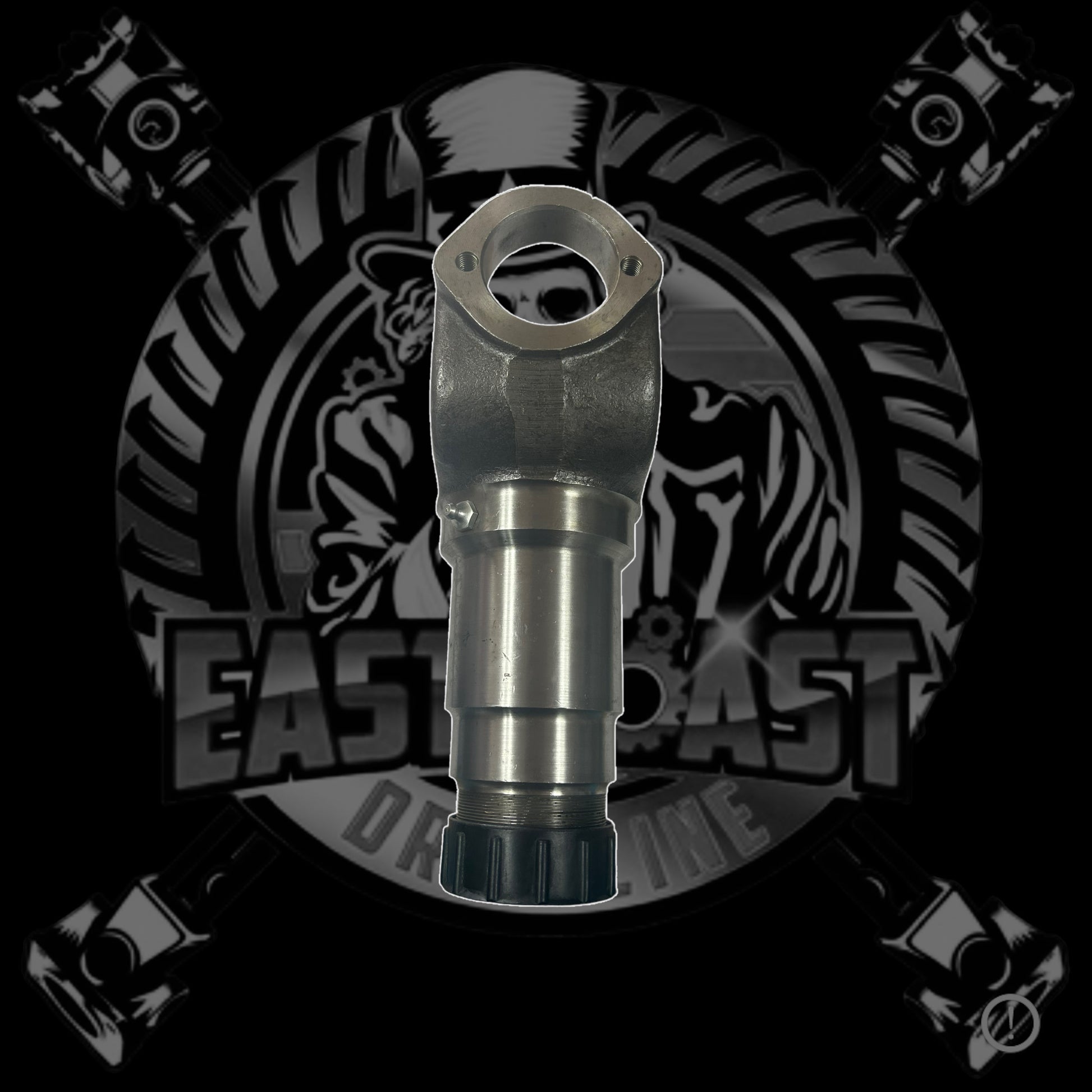

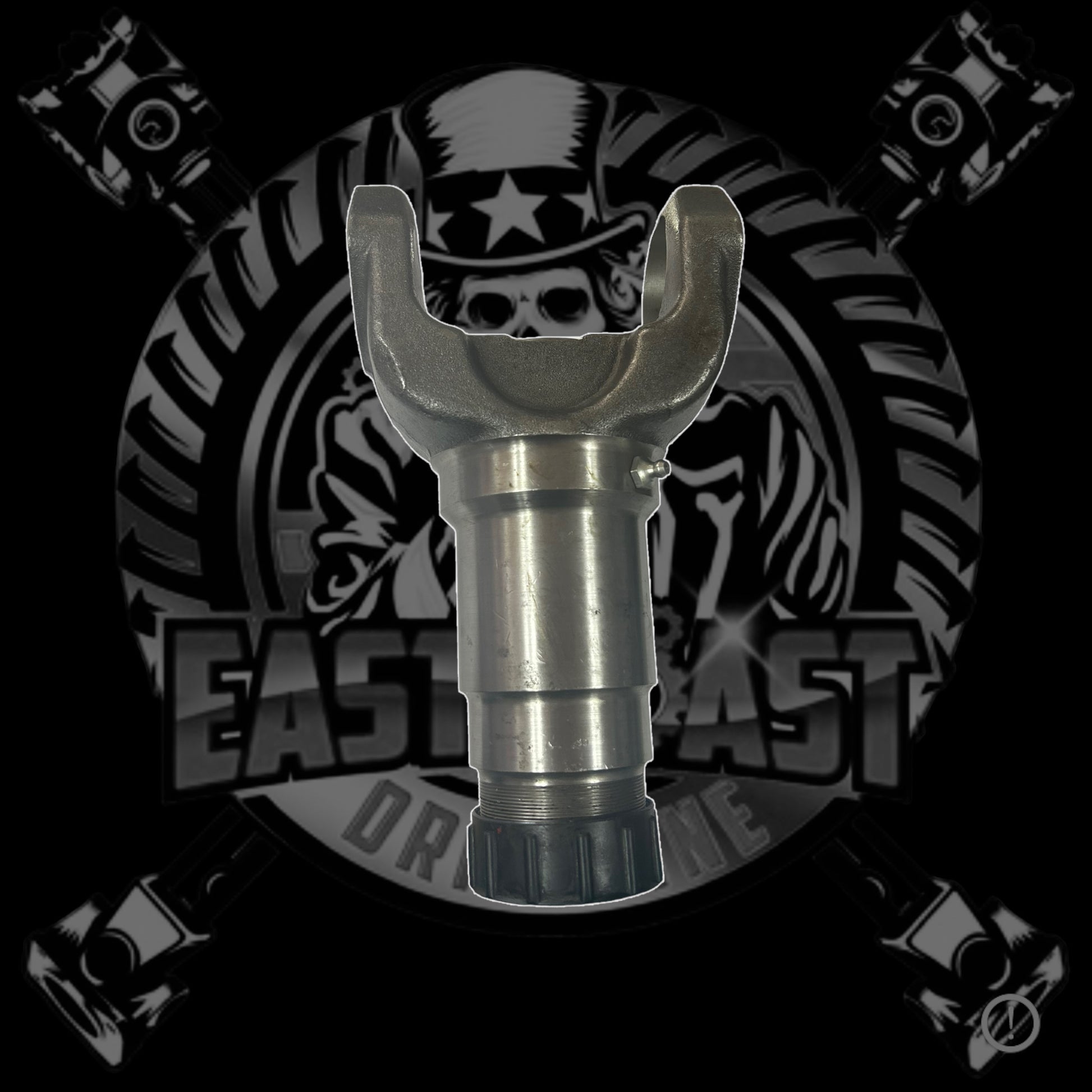

5-3-108KX Driveshaft Slip Yoke 1610 Series x 2” x 16T x 7.812 Length
5-3-108KX Driveshaft Slip Yoke 1610 Series x 2” x 16T x 7.812 Length
Regular price
$294.95 USD
Regular price
Sale price
$294.95 USD
Unit price
per
Couldn't load pickup availability
***Spicer Obsolete*** Slip Yoke 1610 Series
Specifications & Model Diagram
Brand | CDT |
Series | 1610 |
Invoice | SLIP YOKE ASSY |
Material | Steel |
Outside Yoke Dimension (E) In. | 5.312 |
Bearing Cap Diameter (D) In. | 1.875 |
C/L To End Of Spline (J) In. | 7.812 |
C/L To Face Of Plug (F) In. | 1.440 |
Spline O.D. | 2.000 |
No. Of Splines | 16 |
Involute | N |
Style | BP |
