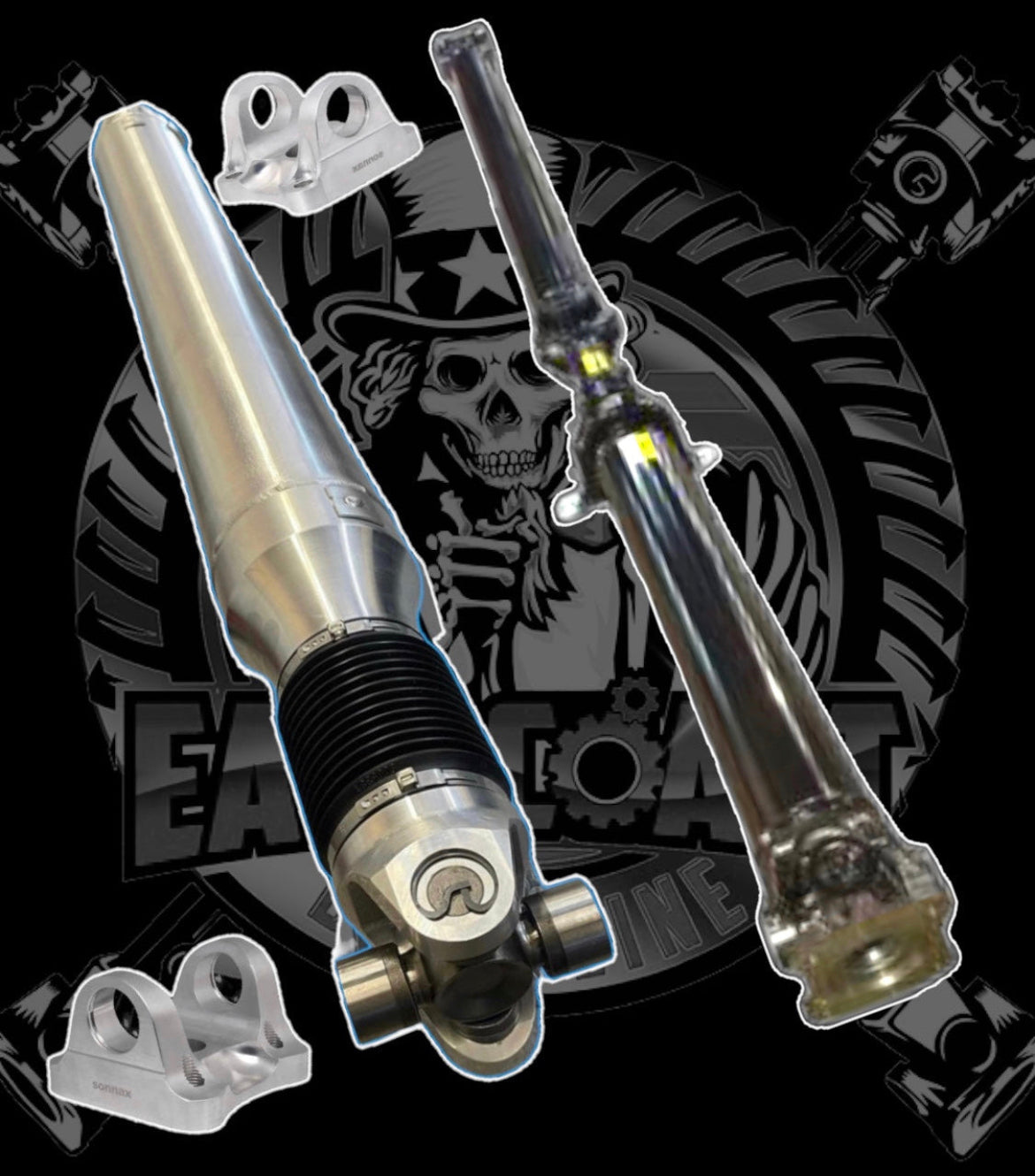

2011-2016 Ford F250 Superduty 6.7L Powerstroke Diesel AWD/4WD Regular Cab Long Bed 1 Piece 1480 Series Aluminum or Carbon Fiber Driveshaft

Made to Order 2-7 Days Lead Time for Aluminum Driveshaft. 1-2 weeks for Carbon Fiber Driveshaft

Made with Sonnax HD 5”x.125” Tubing, Solid Spicer 1480 Series U-Joints, and Billet Aluminum Flange Yokes. Rated 1000+HP

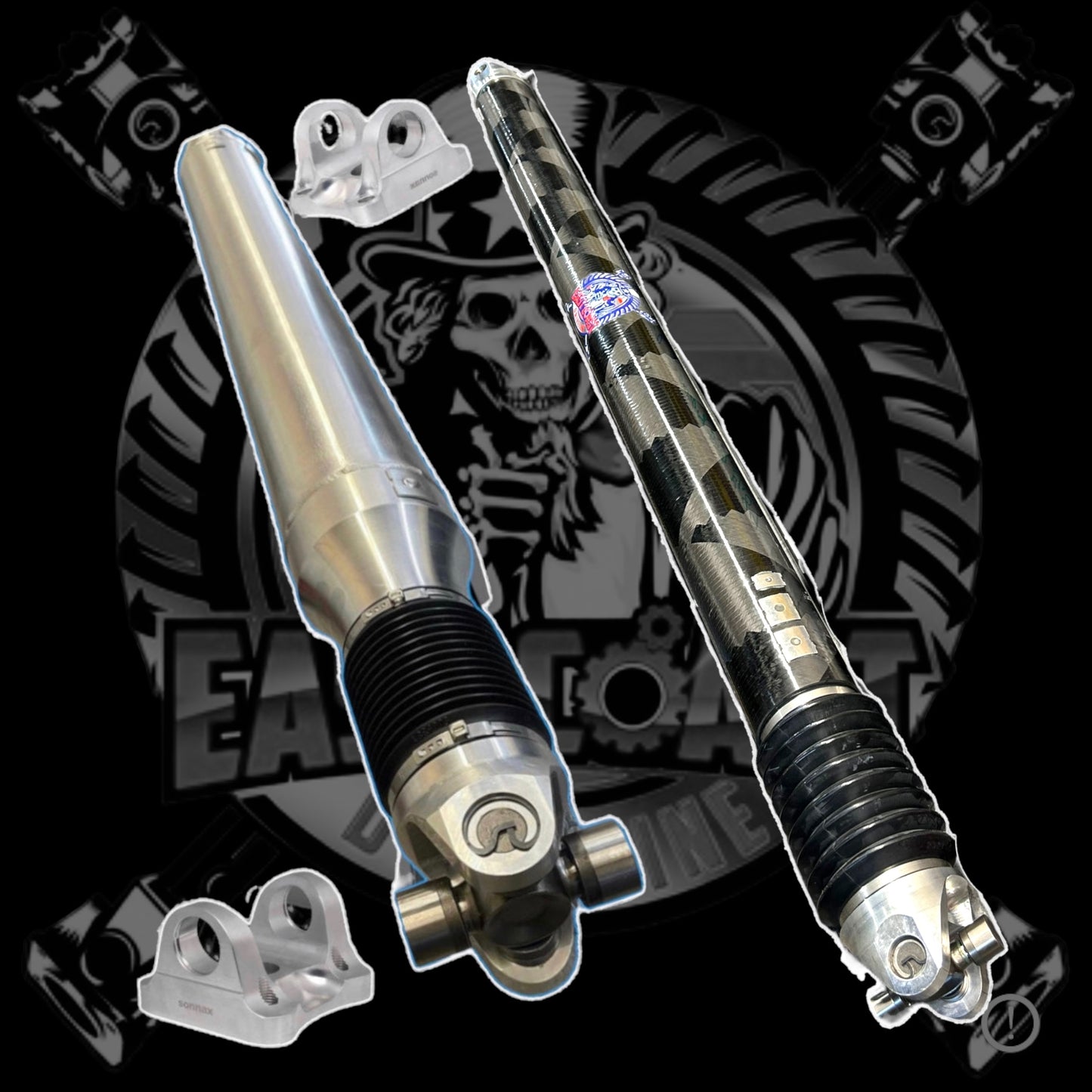

Can also make in 4” Carbon Fiber for higher horsepower and torque applications. Rated 2000+HP Max speed is 10400rpm, and max torque is 7054 ft*lbs

IF TRUCK IS LIFTED YOU MUST PROVIDE NEW MEASUREMENTS FROM FLAT OF TRANSFER CASE FLANGE TO FLAT OF REAR DIFFERENTIAL FLANGE WHILE TRUCK IS AT RIDE HEIGHT.

Email measurement to PB.EastCoastDrivelineInc@Gmail.com for custom length.

Stock Length is 53 3/4” Flat to Flat Ride Height

FRONT FLANGE:

Pilot Type: F

Pilot Dia: 2.680

Bolt Cir Dia: 4.250

Bolt Hole Ct: 4

Bolt Hole Dia: 0.410

C/L to Face: 1.800

Swing Dia: 5.875

Joint Angle: 12.000

Sq Bolt Pattern / M12-1.75 threaded holes in flange

REAR FLANGE:

Pilot Type: F

Pilot Dia: 2.953

Bolt Cir Dia: 4.750

Bolt Hole Ct: 4

Bolt Hole Dia: 0.510

C/L to Face: 2.000

Swing Dia: 5.850

Sq Bolt Pattern / Hole in center
