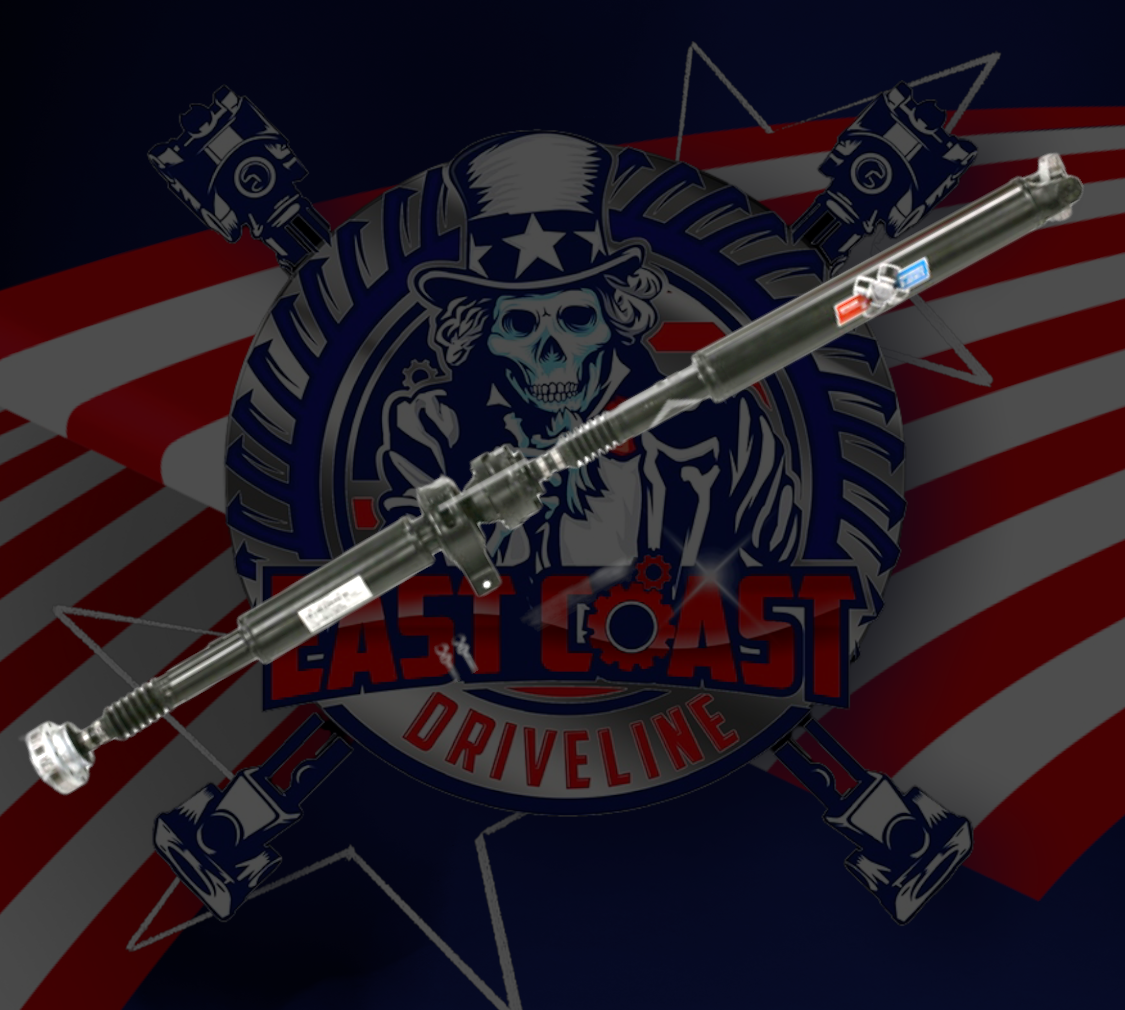

2020-2023 Jeep Gladiator Rear 2 Piece Steel 1350 Series Driveshaft for Ultimate Dana 60 Differential 10132306
2020-2023 Jeep Gladiator Rear 2 Piece Steel 1350 Series Driveshaft for Ultimate Dana 60 Differential 10132306
LEAD TIME FROM DANA SPICER IS 4-6 Months.
***See alternative option for custom 2 Piece Driveshaft here** Custom 2 Piece Shaft **
Made with Serviceable u-joints and Hanger Bearing
Dana 44 Stock Replacement Upgraded Shaft
DESCRIPTION
Driveshaft Assembly Kit - Jeep Gladiator JT Ultimate Dana 60 - Rear
Now for the Jeep Gladiator, the new 2-piece Spicerá1350 series driveshaft is engineered as a direct bolt-in solution that delivers increased strength. Featuring several upgrades designed for added durability on the trail, this driveshaft includesá3 inch DOM tubing and a unique CV Joint with an additional 5 degrees of angle. Dana gives you everything necessary for a bolt-in solution including a center bearing drop bracket kit designed to accommodate vehicles lifted up to 6.5 inches. Spicer performance driveshafts are built with the innovations that give you the confidence to take on the toughest terrain.
Specifications & Model Diagram
Brand | Spicer |
Series | 1350 (Ultimate Dana 60) |
Shaft Material | Steel |
Tube Size (Mm) | 76.2 x 2.1 |
Tube Size (In) | 3 x .08 |
Tube Size (MM) | 76.2 x 2.1 |
Slip (Mm) | 160.000 |
Tube Size (IN) | 3 x .08 |
Slip (In) | 6.299 |
Max Slip (MM) | 160.000 |
Max Slip (IN) | 6.299 |
Cl Yoke To Cl Yoke(MM) - COLL. | 1518.920 |
Cl Yoke To Cl Yoke(IN) - COLL. | 59.800 |
Tube Length (Mm) | 1533.020 |
Tube Length (In) | 60.355 |
CL (Yoke To Bearing) (MM) | 611.800 |
Phased | 0 |
CL (Yoke To Bearing) (IN) | 24.087 |
Note | Install with Center Bearing Drop Bracket Kit - 10149071 |
Material | Steel |
Phased - Degrees | 0 |
Package Type | EACH |
Package Qty | 1 |
Country of Origin | United States |
